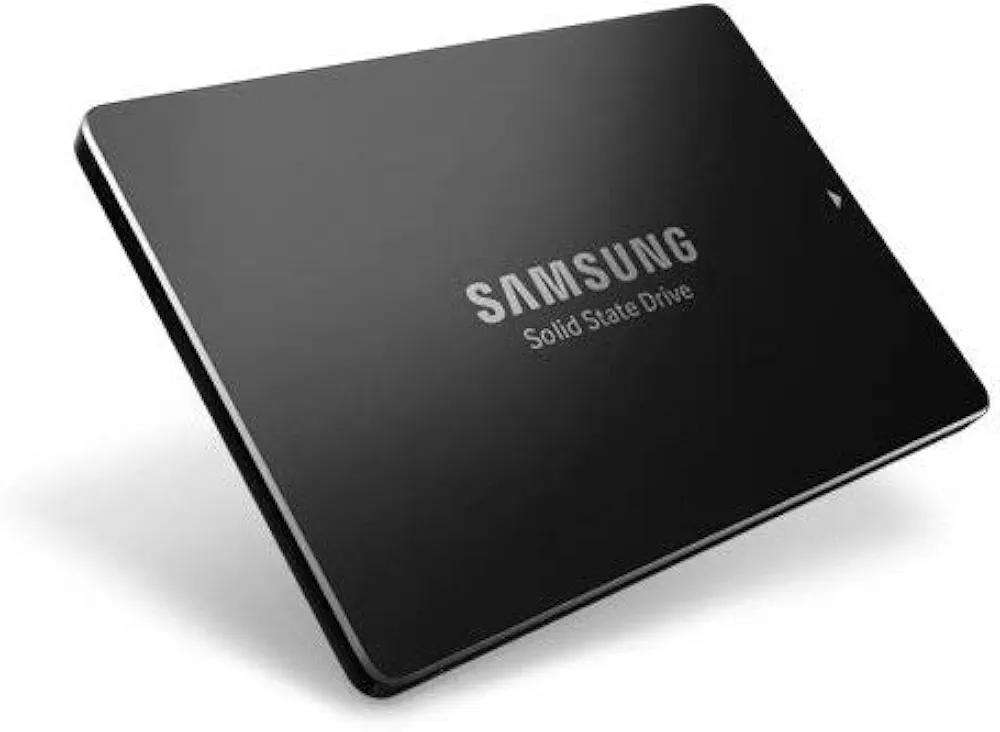

Samsung PM883 3.84TB SSD (model MZ7LH3T8HMLT-00005) is an enterprise-grade SATA solid-state drive designed for data centers and server environments requiring high reliability and consistent performance.
🔧 Key Specifications
Capacity: 3.84 TB
Form Factor: 2.5-inch, 7mm height
Interface: SATA 6 Gb/s (SATA III)
NAND Type: Samsung 64-layer 3D TLC V-NAND
Encryption: 256-bit AES hardware encryption (Self-Encrypting Drive - SED)
Performance
Sequential Read: Up to 550 MB/s
Sequential Write: Up to 520 MB/s
Random Read (4KB): Up to 98,000 IOPS
Random Write (4KB): Up to 28,000 IOPS
Average Latency: 40 µs
Quality of Service (99.99%):
Read (4KB, QD=1): 0.5 ms
Write (4KB, QD=1): 0.3 ms
Read (4KB, QD=32): 0.9 ms
Write (4KB, QD=32): 3.2 ms
🔒 Reliability & Endurance
Drive Writes Per Day (DWPD): 1.3 (over 3 years)
Total Bytes Written (TBW): 5,466 TB
Mean Time Between Failures (MTBF): 2,000,000 hours
Unrecoverable Bit Error Rate (UBER): 1 per 10¹ bits read
🌡 Environmental & Power
Operating Temperature: 0°C to 70°C
Storage Temperature: -40°C to 85°C
Humidity (Operating): 5% to 95% (non-condensing)
Shock Tolerance (Non-operating): 1,500 G @ 0.5 ms
Vibration Tolerance (Non-operating): 20 G @ 20-2000 Hz
Power Consumption:
Read: 2.3 W
Write: 3.6 W
Idle: 1.3 W
📦 Physical Dimensions
Width: 69.85 mm
Depth: 100.2 mm
Height: 6.8 mm
Weight: Approximately 70 g
This SSD is optimized for read-intensive workloads and is suitable for applications such as web servers, streaming services, caching, and content delivery networks. Its combination of performance, endurance, and power efficiency makes it a reliable choice for enterprise storage solutions.
