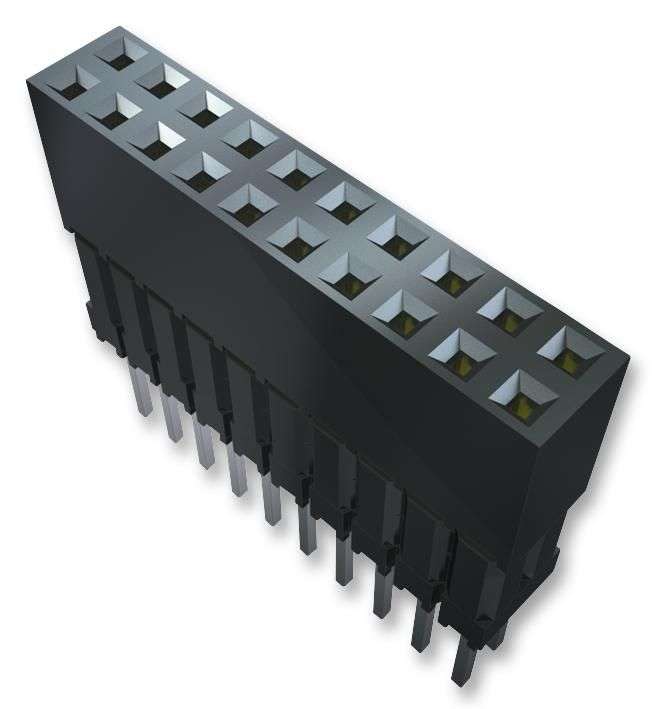

Samtec (ESQ-120-12-T-D) PCB Receptacle, Elevated Strip, Board-to-Board

PCB Receptacle, Elevated Strip, Board-to-Board, 2.54 mm, 2 Rows, 40 Contacts,Through Hole MountProduct OverviewThe ESQ series from Samtec are 0.100" (2.54mm) PC/104 through hole elevatedsocket strips. These connector mates with Samtec TSW, MTSW, EW, MTLW, TSS, ZSS,TSM, DW, ZW, HW, TSSH and HTSS series of connectors. These are self nestingsocket strips which has standard and low insertion force contacts with 0.025"(0.635mm) square tail for PC/104 applications.Tiger Buy contact system, locking lead and polarized optionsSingle, double and triple row up to 108 pinsPitch spacing is 2.54mm with vertical orientationOperating temperature range from -55?C to +125?C (gold plating) and -55?C to+105?C (tin plating)Insulator material is black glass filled polyester, contact material is phosphorbronze10mohm contact resistance, 100 maximum cycles with 10?" (0.25?m) Au platingCurrent rating is 5.2A per pin (ESW/TSW) and 5.7A per pin (1 pin powered perrow) (ESQ/TSW)Voltage rating is 550VAC mated with TSW or ESQ10?" gold contact, matte tin on tail/20?" gold contact, gold flash onbalance/matte tin platingComplies with UL E111594 and CSA 0908710000 standardsApplicationsIndustrialProduct InformationConnector Systems: Board-to-BoardPitch Spacing: 2.54mmNo. of Contacts: 40ContactsContact Termination Type: Through HoleConnector Mounting: Through Hole MountNo. of Rows: 2RowsProduct Range: ESQContact Material: Phosphor BronzeContact Plating: Tin Plated Contacts
