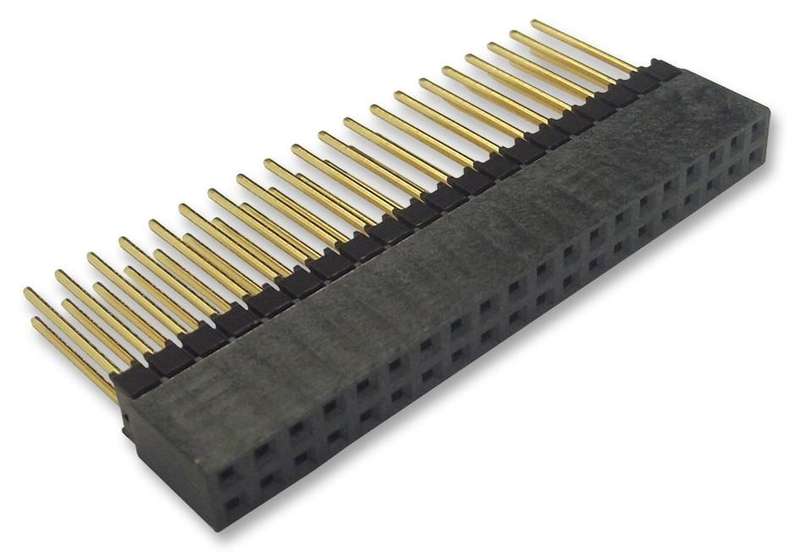

Samtec (ESQ-120-14-G-D) PCB Receptacle, Elevated Strip, Board-to-Board

PCB Receptacle, Elevated Strip, Board-to-Board, 2.54 mm, 2 Rows, 40 Contacts,Through Hole MountProduct OverviewThe ESQ-120-14-G-D is a 40-way 2-row Elevated Socket with Square Tail, 20?inch(0.51?m) gold contact, gold flash on balance, black glass filled polyesterinsulator and phosphor bronze contact.Orderable with single/dual/triple rows (-S/-D/-T option)Pitch spacing is 2.54mm (1 to 36 contacts per row) with vertical orientationHigh operating temperature range of -55?C to 125?C for 20?" gold plated contactsContact material is phosphor bronzeBlack glass filled polyester insulator materialTiger Buy contact systemComplies with UL E111594 and CSA 0908710000 standardsApplicationsIndustrialProduct InformationConnector Systems: Board-to-BoardPitch Spacing: 2.54mmNo. of Contacts: 40ContactsContact Termination Type: Through HoleConnector Mounting: Through Hole MountNo. of Rows: 2RowsProduct Range: ESQContact Material: Phosphor BronzeContact Plating: Gold Plated Contacts
