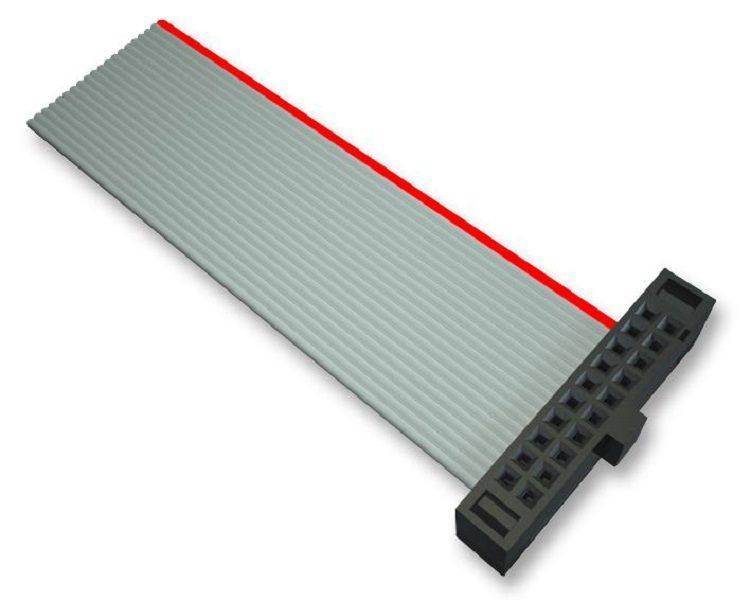

Samtec (FFSD-10-D-04.00-01-N) Ribbon Cable, Tiger Eye FFSD

Ribbon Cable, IDC Receptacle to IDC Receptacle, 20 Ways, 4 ", 101.6 mm, 1.27 mm,Tiger Eye FFSDProduct InformationConnector Type A: IDC ReceptacleConnector to Connector: IDC Receptacle to IDC ReceptacleConnector Type B: IDC ReceptacleNo. of Positions: 20WaysCable Length - Imperial: 4"Cable Length - Metric: 101.6mmConnector Pitch: 1.27mmCable Pitch: 0.635mmProduct Range: Tiger Eye FFSDProduct OverviewThe FFSD series from Samtec are 0.050" (1.27mm) Tiger Eye flat IDC socketribbon cable assemblies. These flat Tiger Eye IDC socket cable system featuresan exceptionally low profile design with a multi-finger, BeCu contact system forhigh reliability and high cycle applications. Optional rugged strain relief isavailable for a more robust connection in harsh environments as well as avariety of ejector and shrouded headers for mating. FFSD series mates with FTS0.050" micro low profile terminal strips, FTSH 0.050" micro terminal strips, EHF0.050" shrouded IDC ejector headers, SHF 0.050" shrouded terminal strips andESHF 0.050" shrouded headers. These are available in various assembled lengthand wide variety of wiring options such as reverse wiring (RW), middle reverse(M), daisy chains (D), reverse (R), outside reverse (O) and strain relief (SR).All common pin counts from 3 to 25UL E111594 qualifiedSingle ended and double ended optionsNotch polarization (notch option not available with -04 position)Insulator material is PBT, 30AWG wire10?" Au plating over 50?" Ni on contact, Sn plating over 50?" Ni on balance areaCurrent rating is 2.3A per pin (1 pin powered per row) (FFSD/FTSH)Accepted lead size is 0.016" (0.41mm) SQ, contact resistance is 15mohmOperating temperature range from -40?C to +105?C
