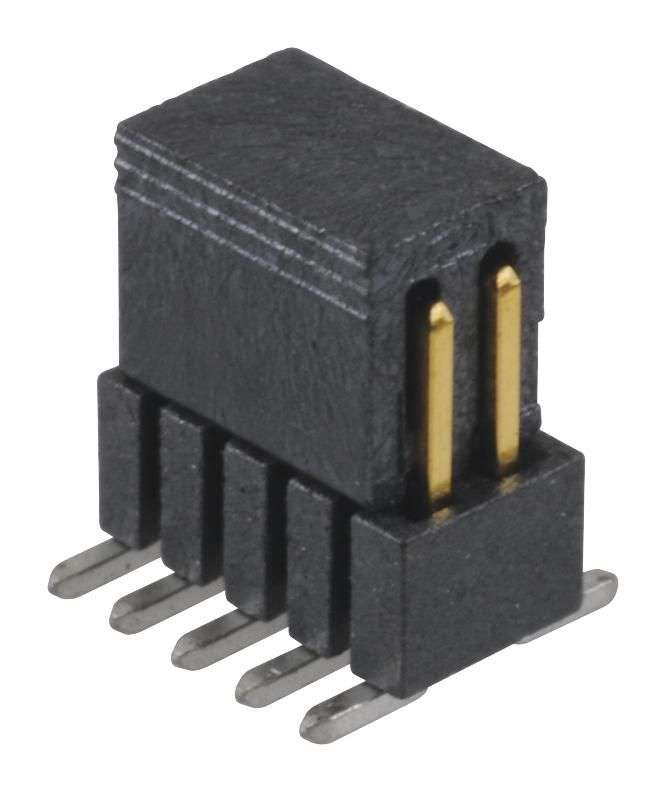

Samtec (FTSH-105-01-F-DV-P) Pin Header, Board-to-Board, Wire-to-Board

Pin Header, Board-to-Board, Wire-to-Board, 1.27 mm, 2 Rows, 10 Contacts, SurfaceMount, FTSHProduct OverviewThe FTSH series from Samtec are surface mount micro terminal strip headers. Itmates with Samtec FFSD, FFTP, CLP and FLE series of connectors. These terminalstrip headers are available in end shroud, end shroud with locking clip, endshroud with guide post, end shroud with board lock and ejector shroud option.Pitch spacing is 1.27mm (2 to 50 contacts per row) with double row verticalmounting (-DV)Operating temperature range of -55?C to 125?CContact material is phosphor bronzeBlack liquid crystal polymer insulator materialGold flash plated contactsComplies with UL E111594 and CSA 0908710000 standardsApplicationsIndustrialProduct InformationConnector Systems: Board-to-Board, Wire-to-BoardPitch Spacing: 1.27mmNo. of Rows: 2RowsNo. of Contacts: 10ContactsContact Termination Type: Surface MountProduct Range: FTSHConnector Shroud: UnshroudedContact Material: Phosphor BronzeContact Plating: Gold Plated Contacts
