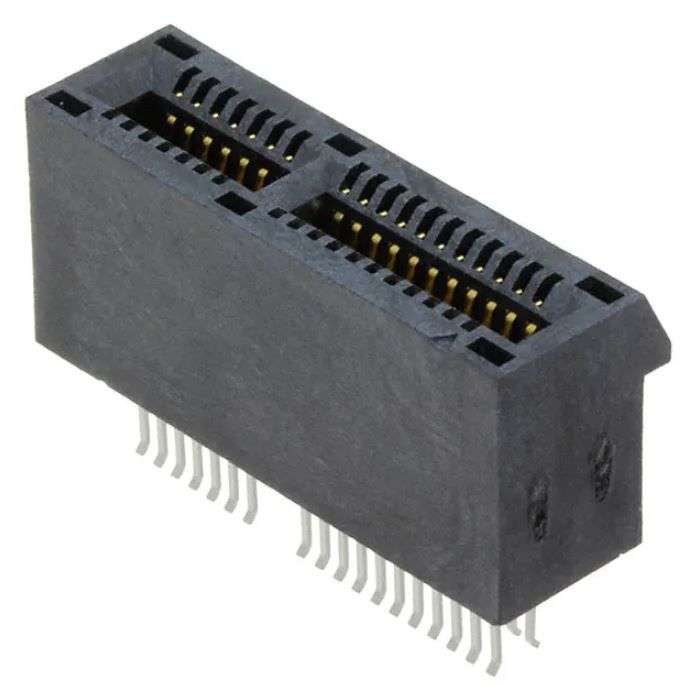

Samtec (PCIE-036-02-F-D-EMS2) Card Edge Connector, PCIe, Dual Side, 1.57 mm

Card Edge Connector, PCIe, Dual Side, 1.57 mm, 36 Contacts, Edge Mount,Straight, SolderProduct OverviewThe PCIE-036-02-F-D-EMS2 is a 36-position 2-row edge mount PCI EXPRESS? CardSocket with gold-plated phosphor bronze contacts and a liquid crystal polymerinsulator. It accepts 0.062-inch (1.60mm) thick cards.2.2A Current rating per pin-55 to +125?C Operating temperature rangeApplicationsIndustrialProduct InformationCard Edge Connector Type: Dual SideNo. of Contacts: 36ContactsCard Thickness: 1.57mmNo. of Contacts: 36 ContactsCard Edge / Backplane Connector Type: Card EdgeConnector Mounting: Edge MountPitch Spacing: 1mmConnector Body Orientation: StraightContact Termination Type: SolderContact Material: Phosphor BronzeNo. of Rows: 2RowsContact Plating - Mating Side: 3µ" Gold Plated ContactsRow Pitch: -Connector Body Material: LCP (Liquid Crystal Polymer) BodyContact Plating: Gold Plated ContactsProduct Range: -
