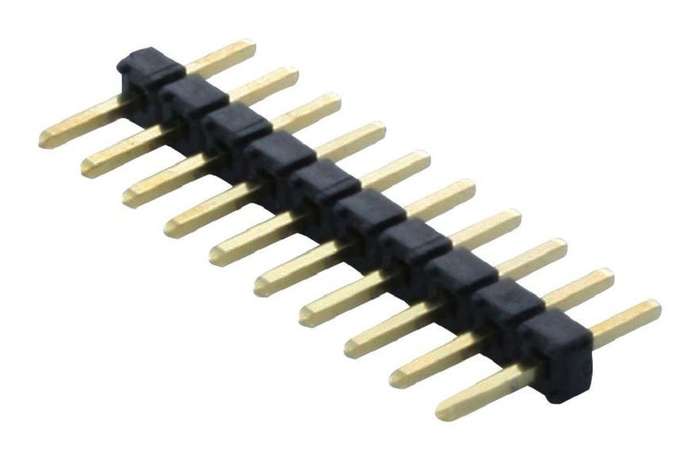

Samtec (TMM-110-01-G-S) Pin Header, Single, Board-to-Board, 2 mm, 1 Rows

Pin Header, Single, Board-to-Board, 2 mm, 1 Rows, 10 Contacts, Through Hole, TMMProduct OverviewThe TMM series from Samtec are FleXYZ low profile terminal strip headers. Theseare unshrouded through hole headers with 0.020" (0.50mm) square post and mateswith Samtec CLT, SQT, SQW, ESQT, TLE, SMM, MMS and TCSD series of connectors.This FleXYZ design provides flexibility in all three axes up to four rows wideand 200 pins. Through hole terminal strip headers are available in large varietyterminal lengths and options.Orderable with single/dual/ four rows (-S/-D/ -Q option)Pitch spacing is 2mm (1 to 50 contacts per row) with straight orientationHigh operating temperature range of -55?C to 125?C for 20?" gold plated contactsContact material is phosphor bronzeBlack liquid crystal polymer insulator materialCurrent rating is 3.2AHorizontal mounting to PCBComplies with UL E111594 and CSA 0908710000 standardsApplicationsIndustrialProduct InformationConnector Systems: Board-to-BoardPitch Spacing: 2mmNo. of Rows: 1RowsNo. of Contacts: 10ContactsContact Termination Type: Through HoleProduct Range: TMMConnector Shroud: UnshroudedContact Material: Phosphor BronzeContact Plating: Gold Plated Contacts
