SANMIN AC 85-265V or DC 100-370V to DC 5V AC-DC DC-DC Isolated Switching Power Supply Module Step

20 available / new

R356.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3466

93.51 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

641132069

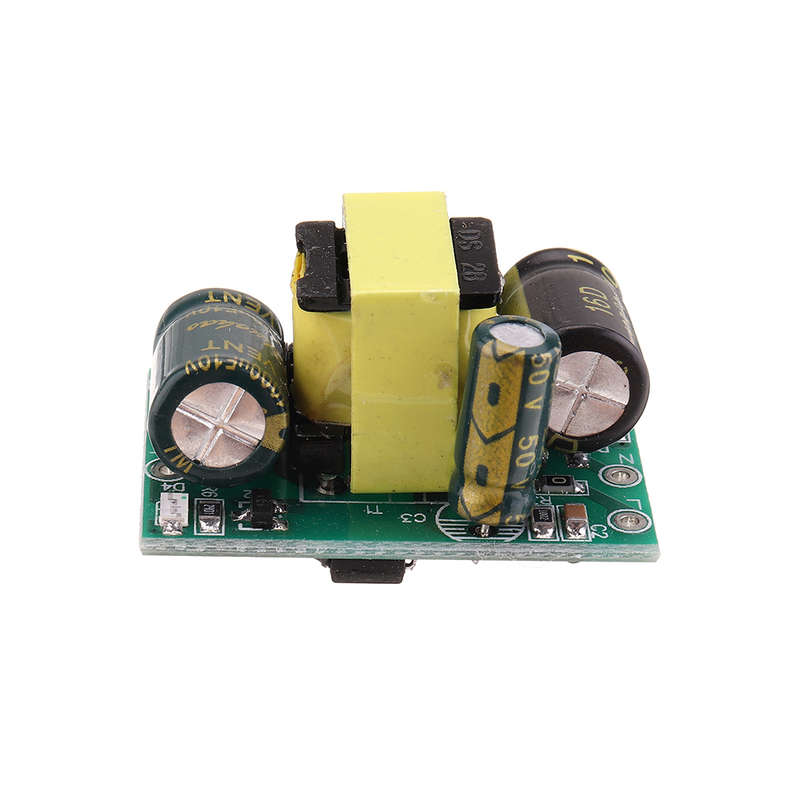

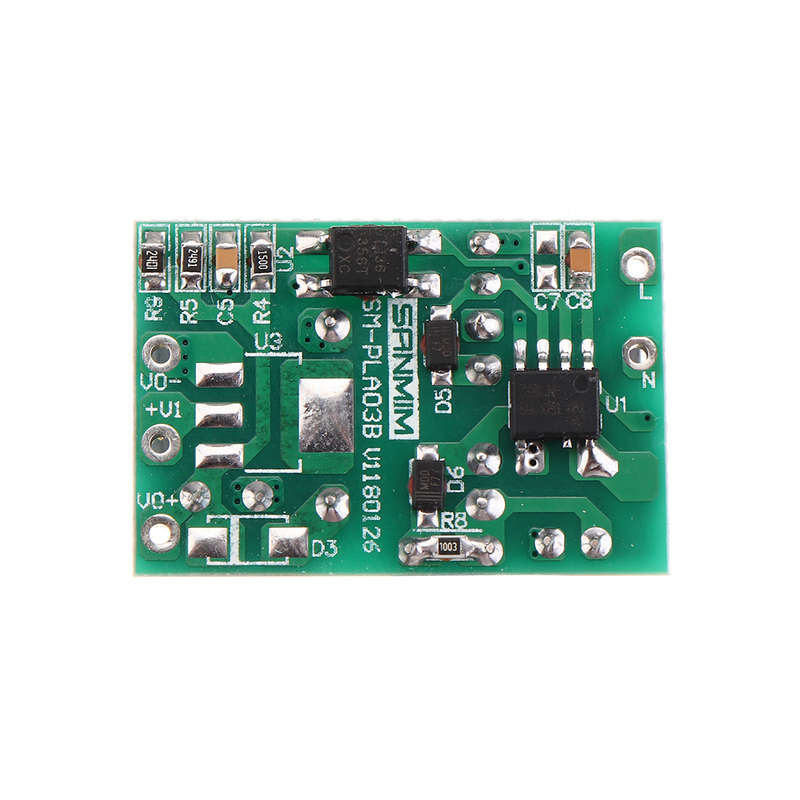

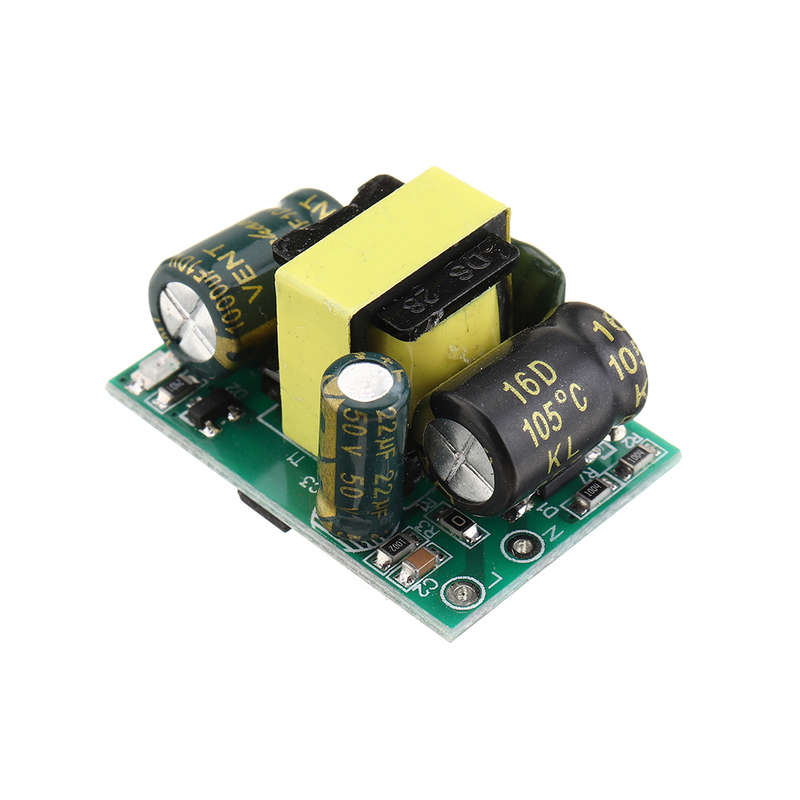

Overview: The power supply is isolated industrial-grade module power supply, with temperature protection, over-current protection and short-circuit protection, high and low voltage isolation, AC85~265V wide voltage input, AC and DC, 431 precision regulated DC5V output, compact size, stable performance , cost-effective and so on. Specifications: Input voltage: AC 85 - 265V 50/60Hz or DC100V - 370V Input current: 0.0273A (AC110V) / 0.014A (AC220V) Output voltage: DC5V (&pm;0.2V) Output current: 0-600mA Output peak current: 700mA Power: 3W Size: 3x2x1.8 cm Output efficiency: 80% Installation method: It can be directly soldered to the PCB at the input and output terminals, and glued to the PCB. Protection function: short circuit / temperature / over current protection Package Included: 1 x AC 85-265V or DC 100-370V to DC 5V AC-DC DC-DC Isolated Switching Power Supply
