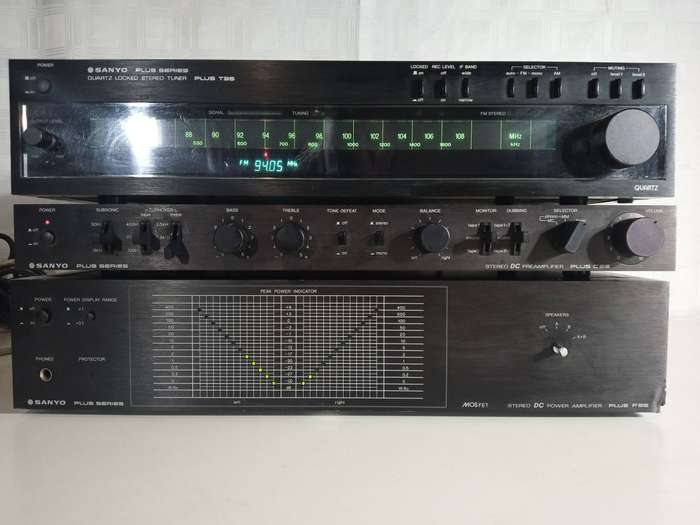

Sanyo Plus Series P55 Tuner, Pre Amp & Power Amplifier

Sanyo Plus Series P55 Tuner, Pre Amp & Power Amplifier

Sanyo Plus Series is a vintage audiophile set that was produced by Sanyo for the upper market. The Plus Series was produced with the best components that makes a true audiophile equipment. Sanyo used highly regarded Hitachi devices and many other features. Dual mono construction - Mosfet outputs, two pairs per side - Gold plated inputs - Power meters with 2 power ranges selectable - Individual resettable relays for speaker protection - A/B speaker switching. This set has 3 units

1.    Quartz Locked Stereo Tuner

2.    Premium Tape Deck with metal & chromium selections.

3.    Stereo DC Preamplifier

4.    Mosfet Stereo DC Power Amplifier

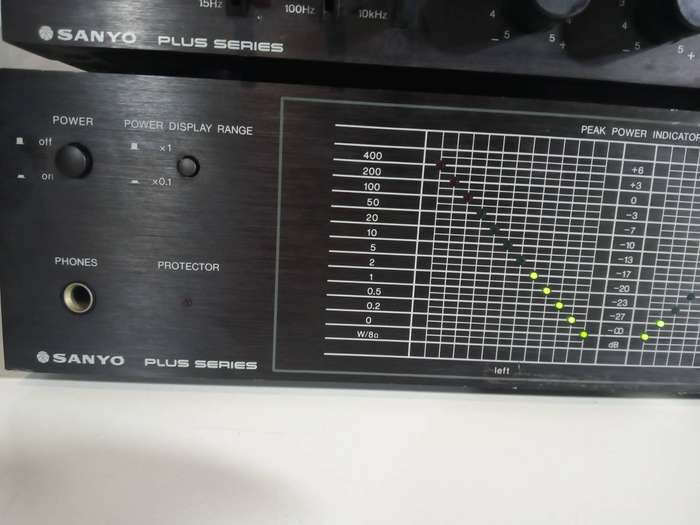

 Sanyo Plus P55 Stereo DC Power Amplifier Specifications

Power output: 100 watts per channel into 8 (stereo), 200 watts into 8 (mono) -

Frequency response: 1Hz to 100kHz - Total harmonic distortion: 0.009% -

Damping factor: 60 - Input sensitivity: 1V - Signal to noise ratio: 110dB

Dimensions: 440 x 320 x 88mm - Weight: 12kg

  Sanyo Plus C55 Stereo Pre Amplifier Specifications

Frequency response: 20Hz to 20kHz - Total harmonic distortion: 0.003% -

Input sensitivity: 0.1mV (MC), 2.5mV (MM), 150mV (line)

Signal to noise ratio: 70dB (MC), 85dB (MM), 100dB (line)

Output: 150mV (line), 1V (Pre out)

Dimensions: 440 x 270 x 44mm - Weight: 3.9kg

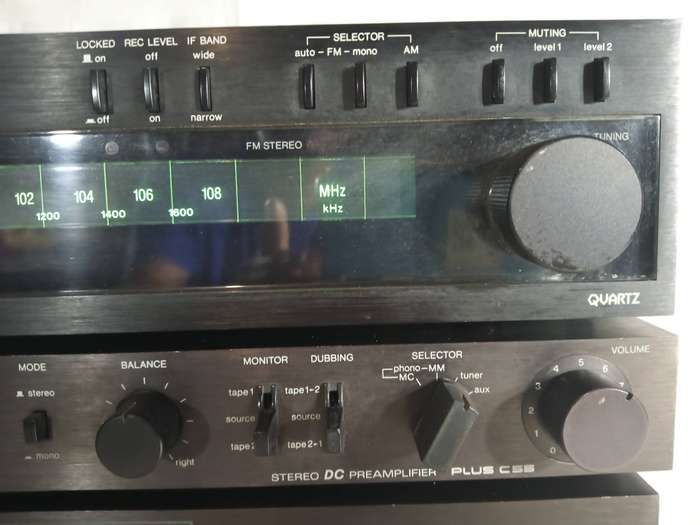

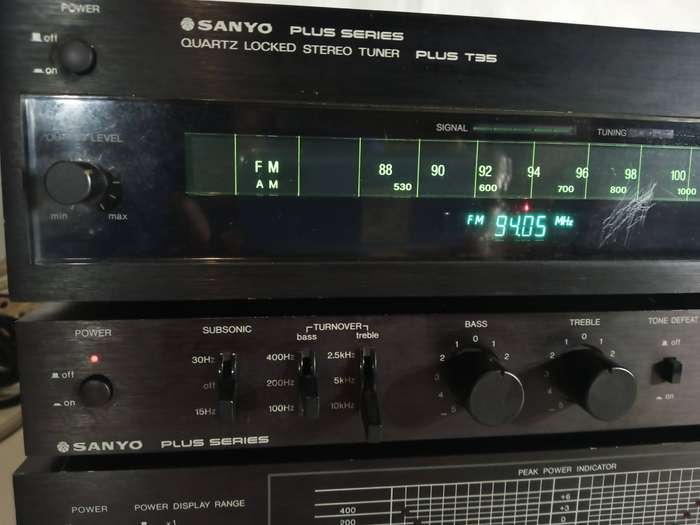

  Sanyo Plus T35 Quartz Locked Stereo Tuner Specifications

Tuning Bands: FM, MW

FM Tuning Range: 87.5 to 108 MHz

MW Tuning Range: 510 to 1605 kHz

Sensitivity: 1.8uV (FM), 300uV (MW)

Signal to Noise Ratio: 70dB (FM), 46dB (MW)

Distortion: 0.2% (FM)

Selectivity: 35dB (MW)

Dimensions: 440 x 270 x 88mm

Weight: 5.5kg
