Specification:
Frequency Generation & Control: 1-60 Mhz
Source impedance: 50 Ohms
Stability: +/- 100 ppm
Spectral Purity: Harmonics down >- TBD dB beyond 60 MHz
Step Size: User configurable increments of 100 Hz, 1 kHz, 10 kHz, and 100 kHz
Usable Measurement Range:SWR: 1.0 to 9.99
Impedance: approx. 5 to 2000 ohms
RF Output: Adjustable: 2.0 Volts pp (typ)
Power supply: Powerd by External: 12 to 15 Volts DC, 500mA
Controls: Pushbuttons (5): "Mode", "Band", "Config", "Scan", "Up", "Down"
Switch: "Power On"
Connectors: RF
USB: Mini-B receptacle

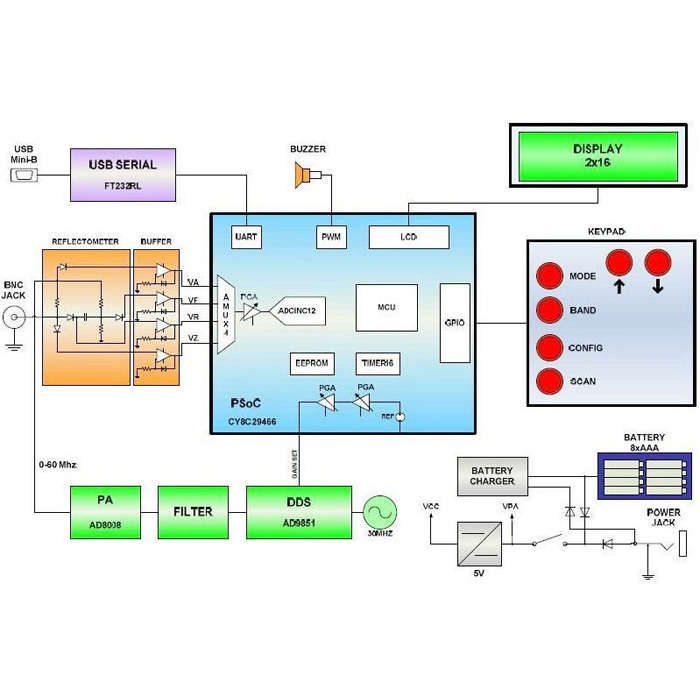

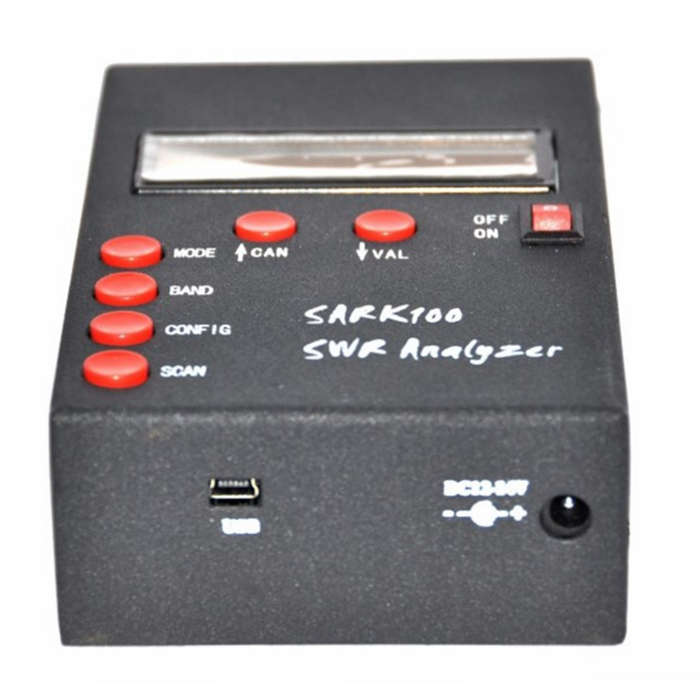

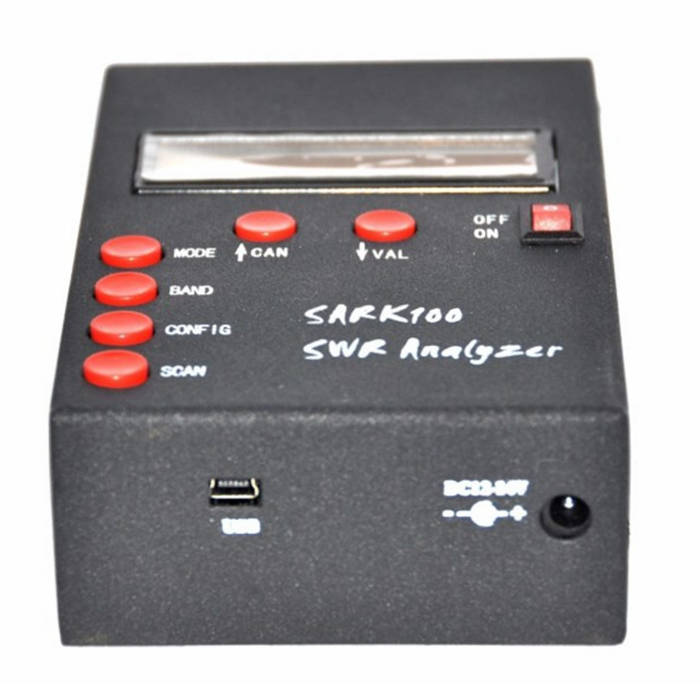

External power: 2.1mm Power Jack (center pin positive)
Power supply: 8 x AA batteries (NOT included)
Applications:
Measure antenna electrical parameters: SWR, impedance (resistance + reactance), capacitance, inductance.
Measure feedpoint impedance.
Measure ground loss.
Adjust antenna tuners and determine loss.
Measure inductors and capacitors.
Measure coax transmission line (SWR, length, velocity factor, approximate Q and loss, resonant frequency, and impedance).
Measure and determine optimum settings for tuning stubs: SWR, approximate Q, resonant frequency, bandwidth, impedance.
Determine characteristic impedance of transmission line.
Coaxial Cable Loss.
Determine antenna tuner loss.
Measure balun loss.
Measure inductor Q.
Estimate quartz crystal parameters.
Measure magnetic loop resonance and SWR.
Operation button definitions:
Mode: selects operation mode: impedance(default), complex impedance, capacitance, and inducatance
BAND: select band from any of the available bands: 160M to 6M
CONFIG: Provides menu for configurations and extended functions: PC Link, step size setting, suspend timeout setting, calibration, and software upgrade
SCAN: pressing this control initiates a scan of frequencies of the selected BAND. Scan exits to impedance mode showing the 2:1 bandwidth and the resonant point o the antenna
CAN(up): increase frequency and used to cancel operation for CONFIG menu
VAL(down): decrease frequency and used to validate operation for CONFIG menu
Package includes:

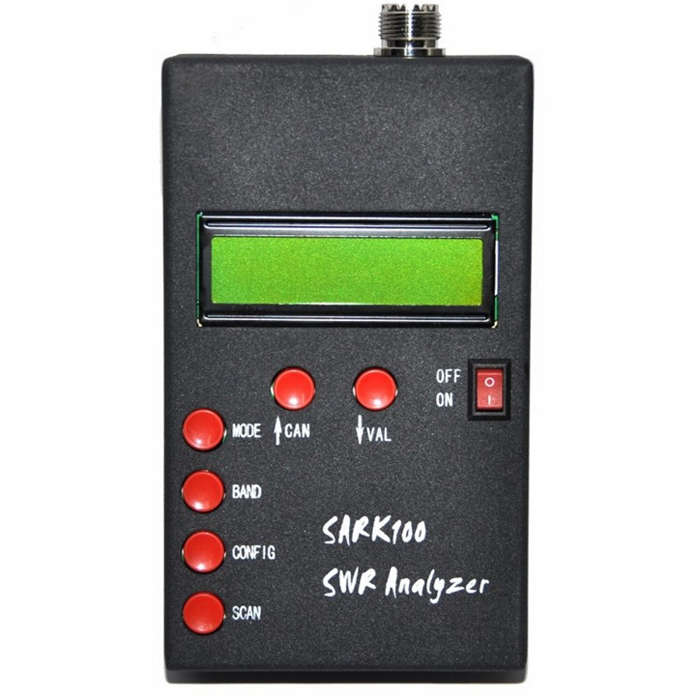

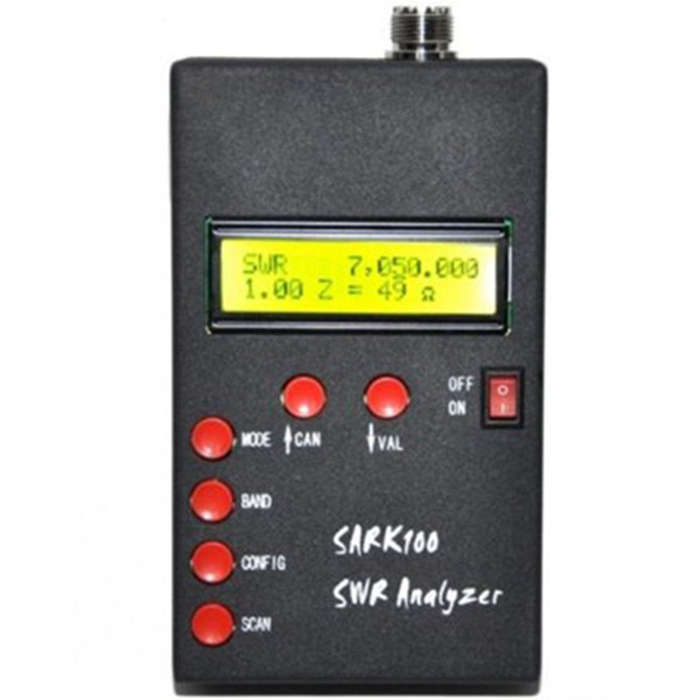

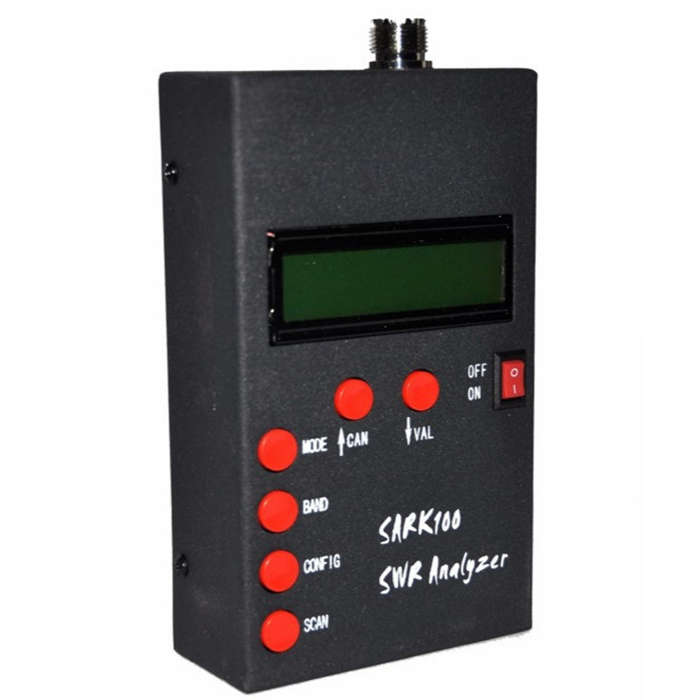

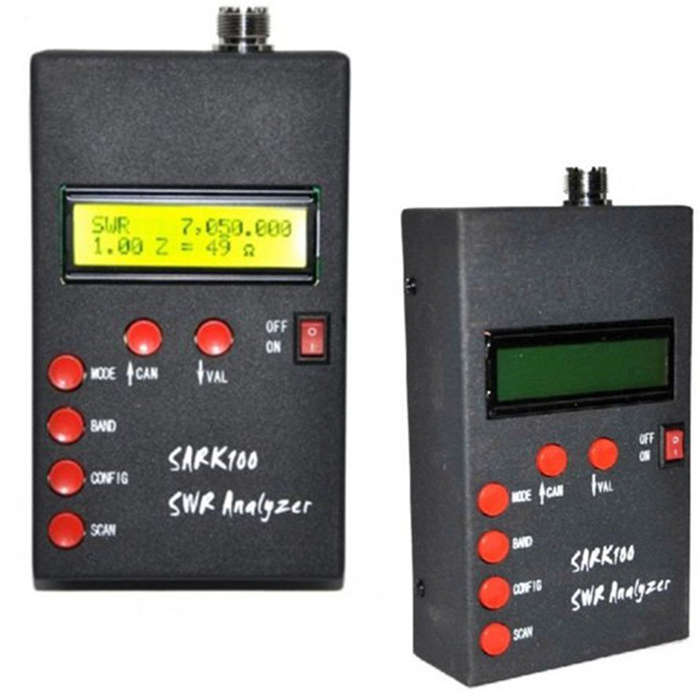

1 x ANT SWR Antenna Analyzer Meter For SARK100 Ham Radio
