Sat-Link Digital Signal Satellite Meter WS-6906 3.5" Lcd Screen (Second Edition

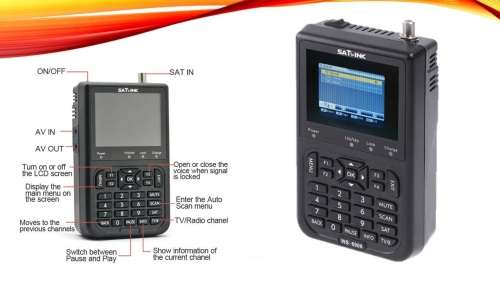

SAT-LINK DIGITAL SIGNAL SATELLITE METER

(SECOND EDITION)

View the actual channel on the screen of the meter.

* Quickly and accurately align the satellite dish and instantly check the stability of the channel right on the screen of the meter. * Transponders, Frequency, Symbol Rate, Polarity, and other settings can be modified by the user. * There is never a need to send your meter in for a upgrade. * The meter never needs to be returned for re-calibration due to the unique calibration system built in to the meter. Each time the meter boots up it automatically calibrates for optimum performance so you can align each install with confidence.

SPECIAL FEATURES INCLUDE:

* View All The Actual FTA Satellite Channels On The Meters Screen.

* Auto Re-Calibration Due To The Unique Calibration System Built in to the Meter.

* Automatically Calculates Dish Angles And Settings Based On Your Longitude And Latitude.

* Each time the meter boots up it automatically calibrates for optimum performance so you can align each install with confidence.

* All Transponders, Frequency, Symbol Rate, Polarity, and other settings can be modified by the user.

* View All FTA Satellite Channels On Screen With Sound.

OTHER FEATURES INCLUDE:

* 3.5 inch LCD Colour Screen * Live FTA Digital Picture and Sound * AV in and AV out function * Watch Free channels * Sound warning prompt locking satellite * Bit Error Rate Readout * Carrier to Noise Readout * dBuV Readout * Lithium-ion 1950mA Battery * DiSEqC & 22kHz Switch Control * Fully DVB Compliant * Freq range: 950mHz-2150mHz * Signal level: 65dbm~25dbm * Symbol rate: 2mbps~45mbps * Video format: PAL/NTSC/SECAM * Software Upgradeable via USB * Size: 158x95x45,Very small and portable.
