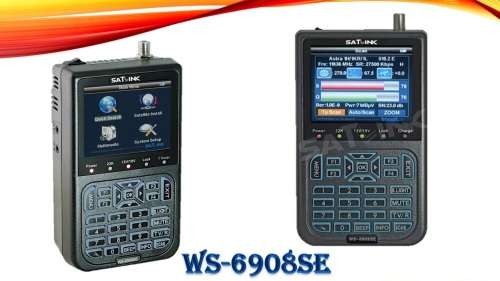

Sat-Link WS-6908 Second Edition

 Satlink WS-6908 Second Edition

• Satlink WS-6908SE DVB-S is a simple measurement computer for DVB-S
• Satlink WS-6908SE DVB-S has a built-in color TFT LCD display with 3.5 "/ 8.9 inch.
• Satlink WS-6908SE DVB-S is ideal for DVB-S satellite dish and set to check for existing DVB-S antenna systems.
• Satlink WS-6908SE DVB-S can be connected as a standard receiver to a TV.
• Satlink WS-6908SE DVB-S can play files from USB memory stick (JPG + MP3)
• Satlink WS-6908SE is with backlight and one flashlight AV-IN & OUTPUT
• Satlink WS-6908SE DVB-S can be connected as a standard receiver to a TV. In addition, the device has an AV input. At this, other media players or AV surveillance cameras to be connected!

Multimedia Player Representation of stored photos in JPG format and play MP3 files from your own USB stick! PC software CTK-DB TOOL - 3.5 Inch TFT LCD Screen Display - Input Frequency: 950~2150MHz - Input Level: -65~ -25dBm - Input Impedance: 75Ω - Measurement Type: signal strength,quality; BER; S/N;PWR - Search Mode: Auto,Blind,Manual - Sound and Light Alarm for Locking Signal - Auto Calculate Angle of AZ ,EL - Supportting DISEQC 1.0,1.1,1.2 and 22khz Tone - LNB Power Supply:18/13V(IMax 400mA) - Support both AV out and AV in - Speaker Integrated - 8.4V/3000mAh Lion Battery Included - Max Operating Time:4 hours - 12V/1.5A DC Adapter - USB Port For Software Upgrades - Support KB-LIGHT & BACKLIGHT function With the PC software "CTK-DB Tool" you can edit the transponder / satellite list. Edit satellite, Add & Remove Transponder edit, add, remove
