SATA to M2 NGFF - SATA2M2

SATA TO M2 NGFF: SATA2M2

Utilize the full potential of your SATA III controller

With an M.2 SSD reducing your data transfer bottleneck with file transfer speeds up to 6 Gbps

M.2 SSDs can also save you money by reducing your power consumption over regular platter drives

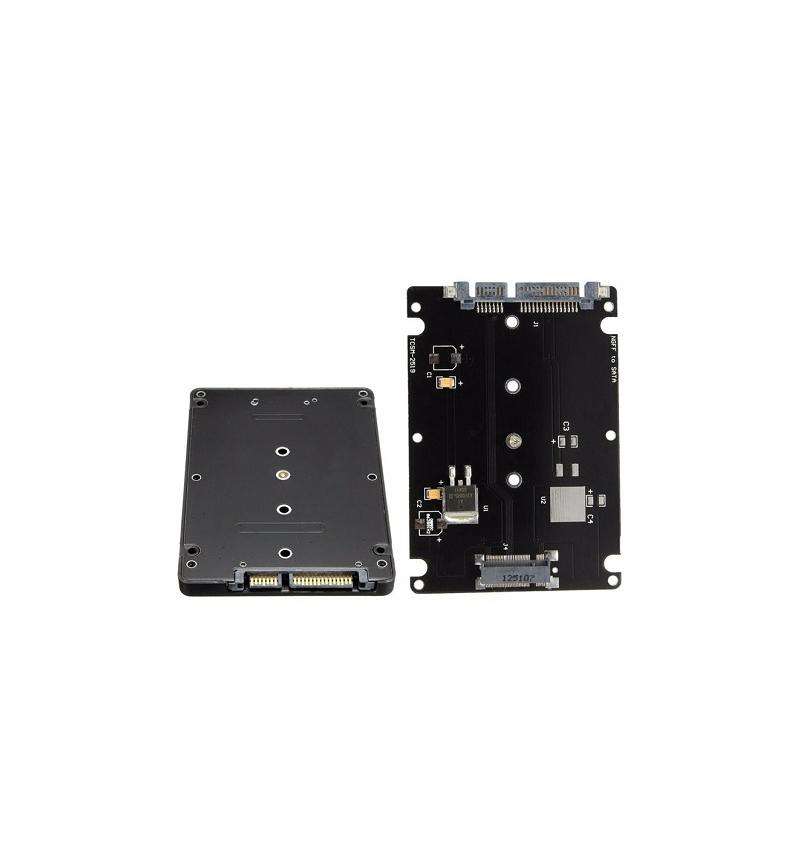

M.2 NGFF to SATA3 MSATA to SATA 2 in 1 Adapter Card Enclosure

2.5" SATA SSD shell appearance size: 98 * 65.5MM

M.2 (NGFF) & mSATA to SATAIII module

Mini PCI-e 52pin public seat

M.2 (NGFF) B key public

Green LED indicates SSD power-on status

Red LED indicates SSD action status

When M.2 and mSATA SSD are installed at the same time

The M.2 SSD will be detected first, and the mSATA SSD will not operate

SPECIFICATIONS:

Support SATA Reversion 3.2

Compatible with PCI Express M.2 Spec.Version 1.0

PWM synchronous buck converter power IC

Providing a maximum current of 3 amps

Short circuit protection

Instantaneous surge current protection

Electrostatic protection HBM (Human Body Mode) / 2KV
