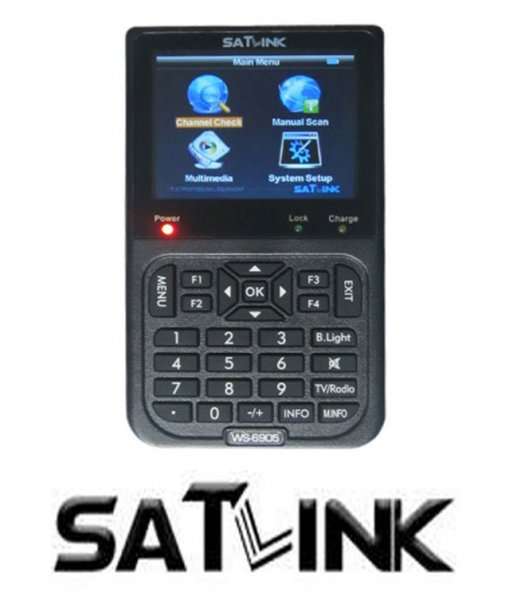

Main Function:
Frequency range: 46MHz - 870 MHz
Level range: 40dBuV - 110dBuV
Level measurement accuracy: 2dB
Digital Meter for Signal Strength
Sound When Lock Signal
3.5 Inch High definition TFT LCD Screen which Can Play Channels
Auto Search
USB port for software upgrades
Fast Charge LI-ION Battery, Can Last 5 Hours
Easy to carry, size only 9.5cm X 15.5cm X 4.5cm Technical Parameter:
Please note that technical knowledge may be needed to operate the meter.
| Tuner | Connector | IEC-Type, IEC 169-2, Female |
| Frequency Range | 74MHz to 230MHz (VHF) 470MHz to 862MHz (UHF) | |
| Signal Level | 40dBuV - 110dBuV | |
| Demodulation | COFDM | |
| Mode | 2K, 8K | |
| FEC mode | 1/2, 2/3, 3/4, 5/6 & 7/8 | |
| Channel Bandwidth | 6MHz/7MHz/8 MHz | |
| MPEG Transport Stream A/V Decoding | Transport Stream | MPEG-2 ISO/IEC 13818 |
| Profile Level | MPEG2 MP@ML | |
| Input Rate | 15 Mbit/s Max | |
| Video Resolution | 720 x 576(PAL), 720 x 480(NTSC), | |
| Audio Decoding | MPEG/MusiCam LayerI&II | |
| Memory | SDRAM | 16Mbyte |
| FLASH | 8Mbyte | |
| Serial data interface | Connector | USB type |
| Power supply | Li-oN Battery | 1950 mA |
| Supply voltage | 12.6Volt | |
| Charger | AC 90-240V | |
| Physical Specification | Size | 9.5x15.5x4.5 (cm) |
| Weight(Net) | 1.5 Kg |
