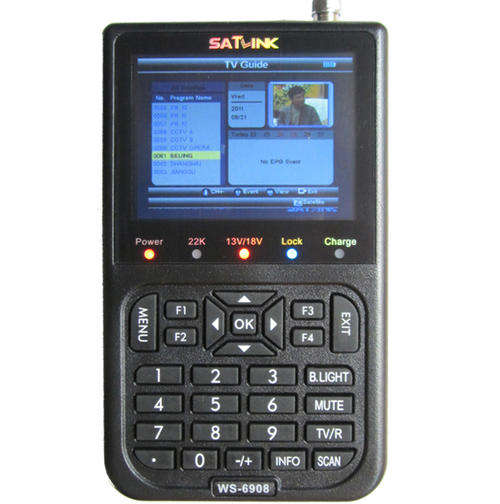

Satlink WS-6908 DVB-S FTA can be connected as a standard receiver to a TV set. In addition, the device has an AV input. At this to be connected other media players or AV surveillance cameras!
Features:
- Colour TFT LC Display with 3,5" / 8,9cm
- Fully DVB Compliant(SATLINK WS-6908)
- DiSEqC & 22kHz Switch Control
- Video format: PAL/NTSC/SECAM
- Live FTA Digital Picture and Sound
- dBuV Readout
- Carrier to Noise Readout
- Bit Error Rate Readout
- Sound warning prompt locking satellite
- Automatc Channel Scan TV + Radio
- Receive and Play of DVB-S FTA TV Programs in Picture and Ton
- Receive and Play of DVB-S FTA Radio Programs in Ton
- AV in and AV out function
- Can connect to a TV and use as a normal satellite receiver
- Software Upgradeable via USB Menory Stick
- Lithium-ion 3000mA Power Battery
- Up to 6 hours working time with integrated battery
- Only 4 hours loading time(SATLINK WS-6908)
- Nonstop working time with extern power supply
- Size: 158x95x45,Very small and portable.Size: 158x95x45,Very small and portable
- 7 menu languages: German, English, French, Portuguese, Spanish, Italian, Polish
Technical Parameter:
System Capabilities | Fully DVB-S Compliant | Yes |
LNB input | Connector | F type, Female |
Frequency Range | 950MHz-2150MHz |
Signal Level | -65dBm~-25dBm |
LNB Powewr | 13/18V,Max350mA |
LNB Switch Control | 22KHz |
DiSEqC | Ver 1.0/ 1.2 |
Demodulator | Front end | QPSK |
Demodulation Range | 2Mbps~45Mbps |
SCPC and MCPC Capable | Yes |
System Resources | Processor | 32bit processor (133MHz) |
FLASH | 8Mbyte |
SDRAM | 4*16Mbyte |
Video Decoder | MPEG 2 | MP@ML |
Data Rate | Max15M bits/s |
Resolution | 720*576,720*480 |
Video format | PAL/NTSC/SECAM |
Audio | MPEG | MPEG-1&2 |
Type | Single |
Sampling Rate | 32,44.1 & 48KHz |
Data Transfer | Connector | USB |
Power Supply | LI-ION battery | 3000 mAH/8.4V Max |
Power Adaptor | In | AC 100-220 |
Out | DC 12V |
Physical characteristics | Size | 9.5x15.5x4.5 (cm) |
The Satlink WS-6908 is local stock.
