Schneider Easy9 Isolator 4 Pole 63A 400V EZ9S16463

Schneider Easy9 Isolator 4 Pole 63A 400V EZ9S16463

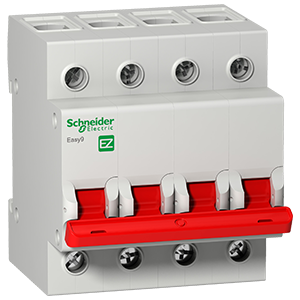

This Schneider Easy9 Isolator 4 Pole 63A 400V EZ9S16463 is a modular and reliable switch disconnector. This switch disconnector is used for control (opening and closing of circuits under load).

Moreover, the Schneider Easy9 Isolator serves as a disconnection device for on-load electrical circuits that are already safeguarded against overload and short-circuits. This Isolator has a position contact indication suitable for industrial isolation according to IEC 60947-3 standard.

This Schneider Easy9 Isolator is a 4P switch disconnector with 63A rated current.
Electrical endurance goes up to 1500 cycles, and mechanical endurance goes up to 8500 cycles.
The Isolator has a Ue rated operational voltage of 400VAC.
The Ui rated insulation voltage is 500VAC. It has a Uimp rated impulse withstand voltage of 4kV.
The Schneider Easy9 Isolator operating frequency is 50Hz or 60Hz. It can be mounted on DIN rail for modular installation.
Its width is 8 pitches of 9mm. The dimensions are (W) 72mm x (H) 81mm x (D) 66.5mm.
The color is light grey (RAL7035).
According to IEC 60529 standard, the degree of protection on this Isolator is IP20 or IP40 in modular enclosure.
The pollution degree is NA.
The operating temperature is -5°C to 55°C. The storage temperature is -5°C to 70 °C. This product complies with IEC 60947-3 standard.
