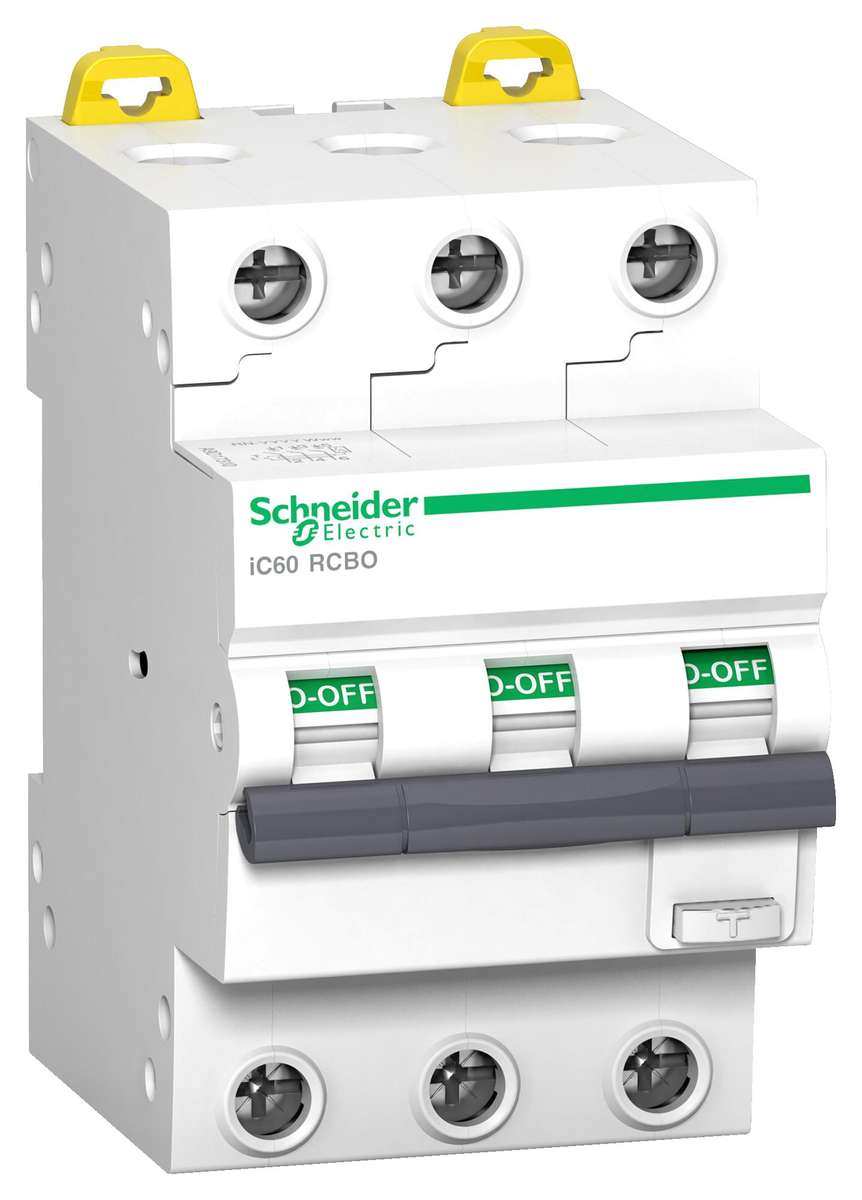

Schneider Electric (A9D17332) Circuit Breaker, Acti 9 iC60, 240 V, 32 A

Circuit Breaker, Acti 9 iC60, 240 V, 32 A, 3 PoleProduct InformationProduct Range: Acti 9 iC60Voltage Rating VAC: 240VCurrent Rating: 32ANo. of Poles: 3 PoleInsulation Voltage: 500VACMainRange Acti 9Product name Acti 9 iC60 RCBOProduct or component type Residual current breaker with overcurrent protection(RCBO)Device short name IC60 RCBODevice application DistributionPoles description 3PNumber of protected poles 3[In] rated current 32 ANetwork type ACTrip unit technology Thermal-magneticCurve code CEarth-leakage sensitivity 30 mAEarth-leakage protection time delay InstantaneousEarth-leakage protection class Type ABreaking capacity 10000 A Icn at 220...240 V AC 50 Hz conforming to EN/IEC61009-2-115 kA Icu at 220...240 V AC 50 Hz conforming to EN/IEC 60947-2Suitability for isolation No conforming to IEC 60947-1Quality labels NFKEMA-KEURVDEIMQComplementaryDevice location in system OutgoerNetwork frequency 50 Hz[Ue] rated operational voltage 220...240 V AC 50 HzMagnetic tripping limit 5...10 x InResidual current tripping technology Voltage independent[Ics] rated service breaking capacity 7500 A 75 % x Icn at 220...240 V AC 50 Hzconforming to EN/IEC 61009-2-17.5 kA 50 % x Icu at 220...240 V AC 50 Hz conforming to EN/IEC 60947-2Rated breaking and making capacity Idm 6000 A at 220...240 V AC 50 Hz conformingto EN/IEC 61009-2-1Limitation class 1 conforming to EN/IEC 61009-2-1[Ui] rated insulation voltage 500 V AC 50 Hz[Uimp] rated impulse withstand voltage 4 kVSurge current 250 AContact position indicator NoControl type ToggleLocal signalling ON, OFF, fault tripMounting mode Clip-onMounting support DIN railComb busbar and distribution blockcompatibilityTop or bottom: YESBottom: biconnect9 mm pitches 6Height 86 mmWidth 54 mmDepth 78 mmNet weight 334 gColour WhiteMechanical durability 20000 cyclesElectrical durability 10000 cyclesConnections - terminals Tunnel type terminal top or bottom 135 mm² rigidTunnel type terminal top or bottom 125 mm² flexibleTunnel type terminal top or bottom 125 mm² flexible with ferruleWire stripping length 12 mm for top or bottom connectionTightening torque 2 N.mEarth-leakage protection IntegratedEnvironmentStandards EN/IEC 60947-2EN/IEC 61009-2-1IP degree of protection IP40 (distribution enclosure) conforming to IEC 60529IP20 conforming to IEC 60529Overvoltage category III conforming to IEC 60364Electromagnetic compatibility 8/20 µs impulse withstand, 250 A conforming toEN/IEC 61009-2-1Tropicalisation 2Relative humidity 95 % at 55 °CAmbient air temperature for operation -2540 °CAmbient air temperature for storage -4070 °C
