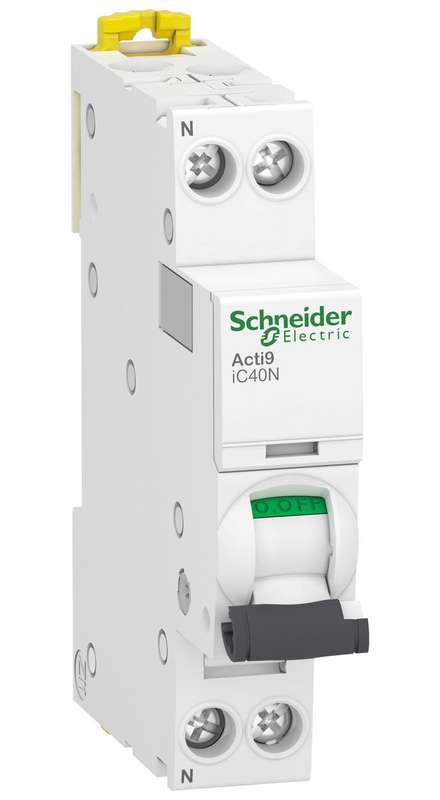

Schneider Electric (A9P54616) Thermal Magnetic Circuit Breaker, 16A, 1 Pole

Thermal Magnetic Circuit Breaker, Acti9 iC40N, 16 A, 1 Pole, 230 V, DIN RailProduct InformationProduct Range: Acti9 iC40NCurrent Rating: 16ANo. of Poles: 1 PoleVoltage Rating VAC: 230VCircuit Breaker Mounting: DIN RailMainRange Acti9Product name Acti9 iC40Product or component type Miniature circuit-breakerDevice short name IC40NDevice application DistributionPoles description 1P + NNumber of protected poles 1Neutral position Left[In] rated current 16 ANetwork type ACTrip unit technology Thermal-magneticCurve code CBreaking capacity 10 kA Icu at 230 V AC 50/60 Hz conforming to EN/IEC 60947-26000 A Icn at 230 V AC 50/60 Hz conforming to EN/IEC 60898-1Suitability for isolation Yes conforming to EN/IEC 60947-2Quality labels RCMAENORIMQOVEComplementaryNetwork frequency 50/60 Hz[Ue] rated operational voltage 230 V AC 50/60 HzMagnetic tripping limit 5...10 x In conforming to EN/IEC 60898-18 x In +/- 20 % conforming to EN/IEC 60947-2[Ics] rated service breaking capacity 6000 A 100 % x Icn at 230 V AC 50/60 Hzconforming to EN/IEC 60898-17.5 kA 75 % x Icn at 230 V AC 50/60 Hz conforming to EN/IEC 60947-2Limitation class 3 conforming to EN/IEC 60898-1[Ui] rated insulation voltage 400 V AC 50/60 Hz conforming to EN/IEC 60947-2[Uimp] rated impulse withstand voltage 4 kV conforming to EN/IEC 60947-2Contact position indicator YesControl type ToggleLocal signalling ON/OFF indicationTrip indicatorMounting mode Clip-onMounting support DIN rail9 mm pitches 2Height 85 mmWidth 18 mmDepth 74 mmNet weight 120 gColour WhiteMechanical durability 20000 cyclesElectrical durability 20000 cyclesLocking options description Padlocking deviceConnections - terminals Tunnel type terminals top or bottom 110 mm² flexibleTunnel type terminals top or bottom 116 mm² rigidWire stripping length 14 mm for top or bottom connectionTightening torque 2 N.m top or bottomEarth-leakage protection Separate blockEnvironmentStandards EN/IEC 60898-1EN/IEC 60947-2Product certifications CEBVRINADNVIP degree of protection IP20 conforming to IEC 60529IP40 (modular enclosure) conforming to IEC 60529Pollution degree 3 conforming to EN/IEC 60947-2Relative humidity 95 % at 55 °COperating altitude 2000 mAmbient air temperature for operation -2570 °CAmbient air temperature for storage -4085 °C
