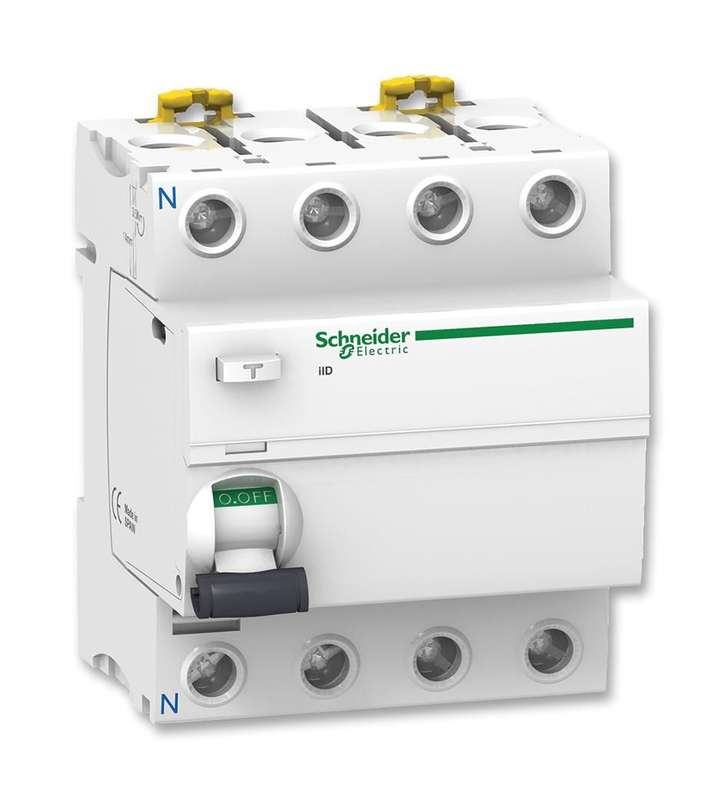

Schneider Electric (A9R41425) Circuit Breaker, iID, 415 VAC, 25 A, 4 Pole

Product InformationProduct Range: iIDVoltage Rating VAC: 415VACCurrent Rating: 25ANo. of Poles: 4 PoleOverload Current: 1.5kAInsulation Voltage: 500VProduct OverviewThe iID series DIN-rail Residual Current Circuit Breaker is fully coordinatedwith the iC60 MCBs to warranty an absolute people protection and equipmentagainst electrocution, risk of fire and improved continuity of service. Itfeature fully immune earth leakage protection - better continuity of service,especially with the new Si type (Super immune) in polluted environments andnetworks. The optional electrical auxiliaries and mounting accessories are thesame as for the Acti 9 iC60 miniature circuit breaker (MCBs) offer. To ensurecorrect discrimination between different residual current circuit-breakers andthe tripping of the device closest to the fault. It is suitable for isolation inaccordance with industrial standard IEC/EN 60947-2. Optional auxiliaries -indication of state and tripping, shunt tripping, under-voltage tripping andovervoltage tripping. The risk of fire due to current leakage into buildingelectrical installations.VISI-SAFE for safe operation and maintenance workClass-2 insulation continuous safety for operators and unqualified personnelVisiTrip detects faulty outgoers quickly and reduces intervention time30mA Sensitivity - Additional protection against direct contact (in accordancewith IEC 60364)Full coordination with Acti 9 and Multi 9 MCBsGreater continuity of service with VisiTripGreater electrical immunity with Si type (Super immune)Simple to choose with meaningful part numbersEasy to install with quick, ergonomic and safe IP20B terminal shuttersRobust connections (twice the standard tightening torque)Environment-friendly with 100% recyclable and recoverable materialsApplicationsIndustrial, Safety
