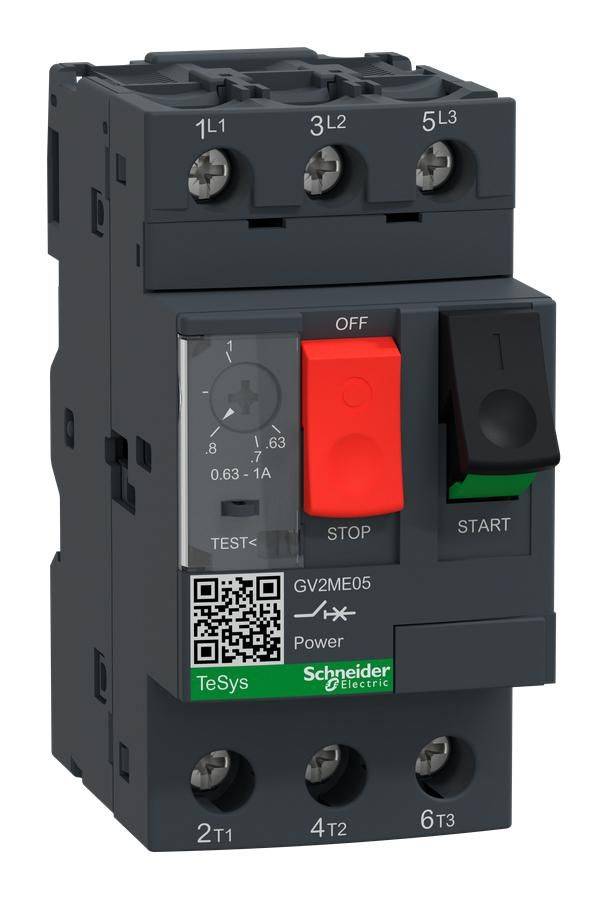

Schneider Electric (GV2ME05) Thermal Magnetic Circuit Breaker, 1A, 3Pole

Thermal Magnetic Circuit Breaker, GV2M, TeSys Deca Manual Motor Starter, 1 A, 3Pole, 690 VACProduct InformationProduct Range: TeSys Deca Manual Motor StarterCurrent Rating: 1ANo. of Poles: 3 PoleVoltage Rating VAC: 690VACCircuit Breaker Mounting: DIN RailProduct OverviewThe GV2ME05 from Schneider is a TeSys three pole thermal magnetic circuitbreaker with screw clamp terminals. This circuit breaker is approved by EN60204, IEC 60947-1, IEC 60947-2, IEC 60947-4-1, NF C 63-120, NF C 63-650, NF C79-130, UL 508, VDE 0113, VDE 0660 and CSA C22.2 standards. The GV2ME05 is DINrail mountable with vertical and horizontal mounting positions.Breaking capacity of 100KA at 690VAC (50/60Hz) conforming to IEC 60947-2Thermal protection adjustment range from 0.63A to 1AMagnetic tripping current is 13ARated operational voltage of 690VAC (50/60Hz) conforming to IEC 60947-2Conventional free air thermal current of 1A conforming to IEC 60947-4-1Power dissipation per pole is 2.5WIP20 degree of protection conforming to IEC 60529IK04 degree of protectionOperating ambient air temperature range from -20°C to 60°CPushbutton controlApplicationsSafety, Industrial
