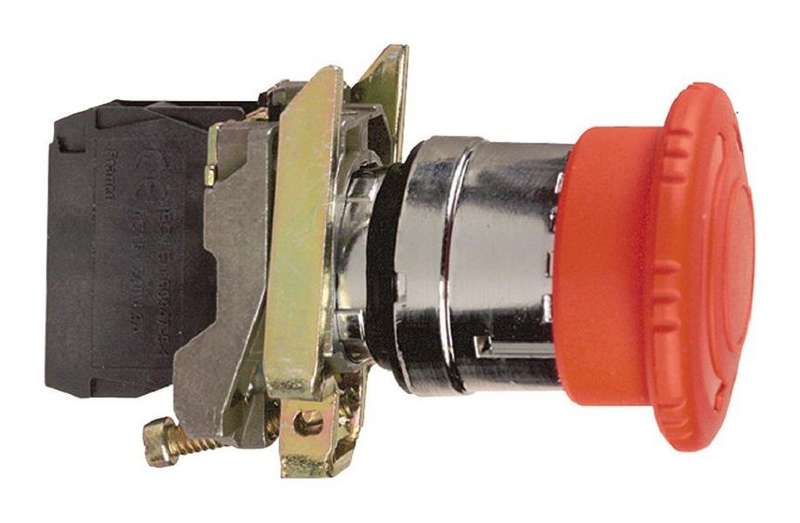

Schneider Electric (XB4BS8445) Emergency Stop Switch, SPST-NO, SPST-NC

Emergency Stop Switch, SPST-NO, SPST-NC, Turn to Release, Screw Clamp, 1.2 A,600 VProduct InformationContact Configuration: SPST-NO, SPST-NCSwitch Operation: Turn to ReleaseSwitch Terminals: Screw ClampContact Current Max: 1.2AContact Voltage AC Nom: 600VContact Voltage DC Nom: -Pushbutton Actuator Style: MushroomIP Rating: IP66Product Range: HarmonyProduct OverviewThe XB4BS8445 is a single-pole single-throw (SPST) Emergency Stop PushbuttonSwitch with 1NO + 1NC slow-break silver alloy (Ag/Ni) contacts and screw clampterminals. This pushbutton operator features round signaling unit head, turn torelease reset, chromium-plated metal bezel, Zamak fixing collar, trigger actionand mechanical latching red mushroom Ø40mm unmarked operator. This XB4 seriespushbutton switch is suitable for use with the Harmony XB4 range product. Itmeets with the EN/IEC 60204-1, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC60947-5-4, EN/IEC 60947-5-5, EN/ISO 13850, IEC 60364-5-53, JIS C 4520, UL 508and CSA C22.2 No 14 standards.Green premium product300000 cycles Mechanical durabilityIP66 Protection ratingIK03 Protection rating-25 to 70°C Ambient air temperature range for operationApplicationsAutomotive, Industrial, Commercial
