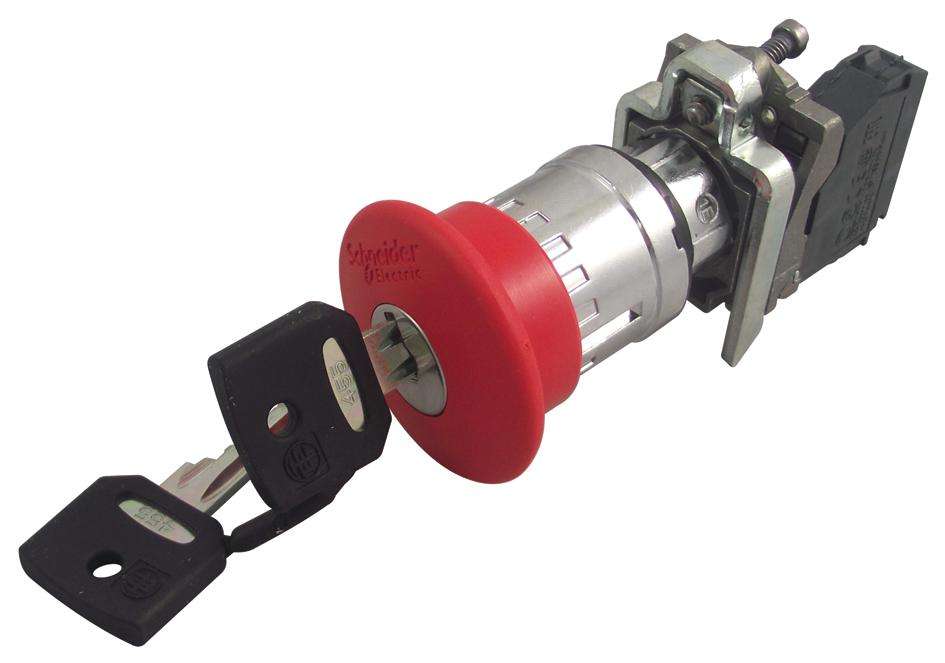

Schneider Electric (XB4BS9442) Emergency Stop Switch, SPST-NC, 6 A, 120V

Emergency Stop Switch, SPST-NC, Push-Key Release, Screw Clamp, 6 A, 120 VProduct InformationContact Configuration: SPST-NCSwitch Operation: Push-Key ReleaseSwitch Terminals: Screw ClampContact Current Max: 6AContact Voltage AC Nom: 120VContact Voltage DC Nom: -Pushbutton Actuator Style: MushroomIP Rating: IP66Product Range: HarmonyProduct OverviewThe XB4BS9442 is a single-pole single-throw (SPST) NC Emergency Stop Switchingwith slow-break standard silver alloy (Ag/Ni) contacts. This XB4 seriescommercialized round head emergency stop switching features trigger action andmechanical latching red mushroom Ø40mm unmarked operator, screw clamp connectionterminals and Zamak fixing collar. It also features Ronis 455 type of keylock,center key withdrawal position, NEMA 4X and NEMA 13 NEMA degree of protection.300000 cycles Mechanical durabilityClass I conforming to IEC 60536 protection against electric shockIK03 conforming to IEC 50102 IK protection ratingTH Protective treatmentApplicationsCommercial
