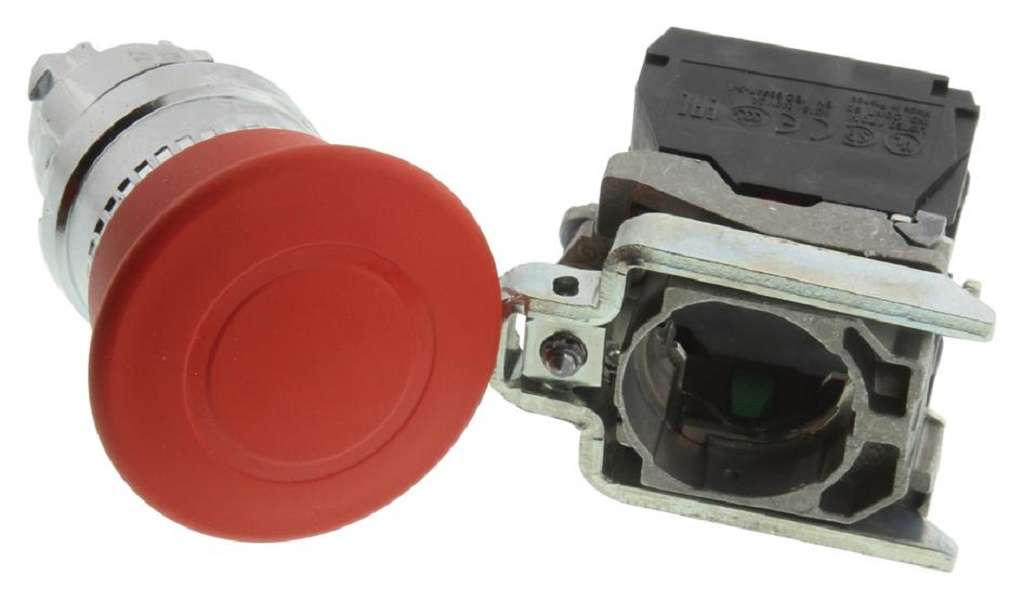

Schneider Electric (XB4BT845) Emergency Stop Switch, SPST-NO, 6 A, 120 V

Emergency Stop Switch, SPST-NO, SPST-NC, Push-Pull, Screw Clamp, 6 A, 120 VProduct InformationContact Configuration: SPST-NO, SPST-NCSwitch Operation: Push-PullSwitch Terminals: Screw ClampContact Current Max: 6AContact Voltage AC Nom: 120VContact Voltage DC Nom: -Pushbutton Actuator Style: MushroomIP Rating: IP66Product Range: HarmonyProduct OverviewThe XB4BT845 is a single-pole double-throw (SPDT) Emergency Stop PushbuttonSwitch with 1NO + 1NC slow-break silver alloy (Ag/Ni) contacts and screw clampterminals. This pushbutton operator features round signaling unit head,push-pull reset, chromium-plated metal bezel, Zamak fixing collar, triggeraction and mechanical latching red mushroom Ø40mm unmarked operator. This XB4series pushbutton switch is suitable for use with the Harmony XB4 range product.It meets with the EN/IEC 60204-1, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC60947-5-4, EN/IEC 60947-5-5, EN/ISO 13850, IEC 60364-5-53, JIS C 4520, UL 508and CSA C22.2 No 14 standards.Green premium product300000 cycles Mechanical durabilityIP66 Protection ratingIK03 Protection rating-25 to 70°C Ambient air temperature range for operationApplicationsAutomotive, Industrial, Commercial
