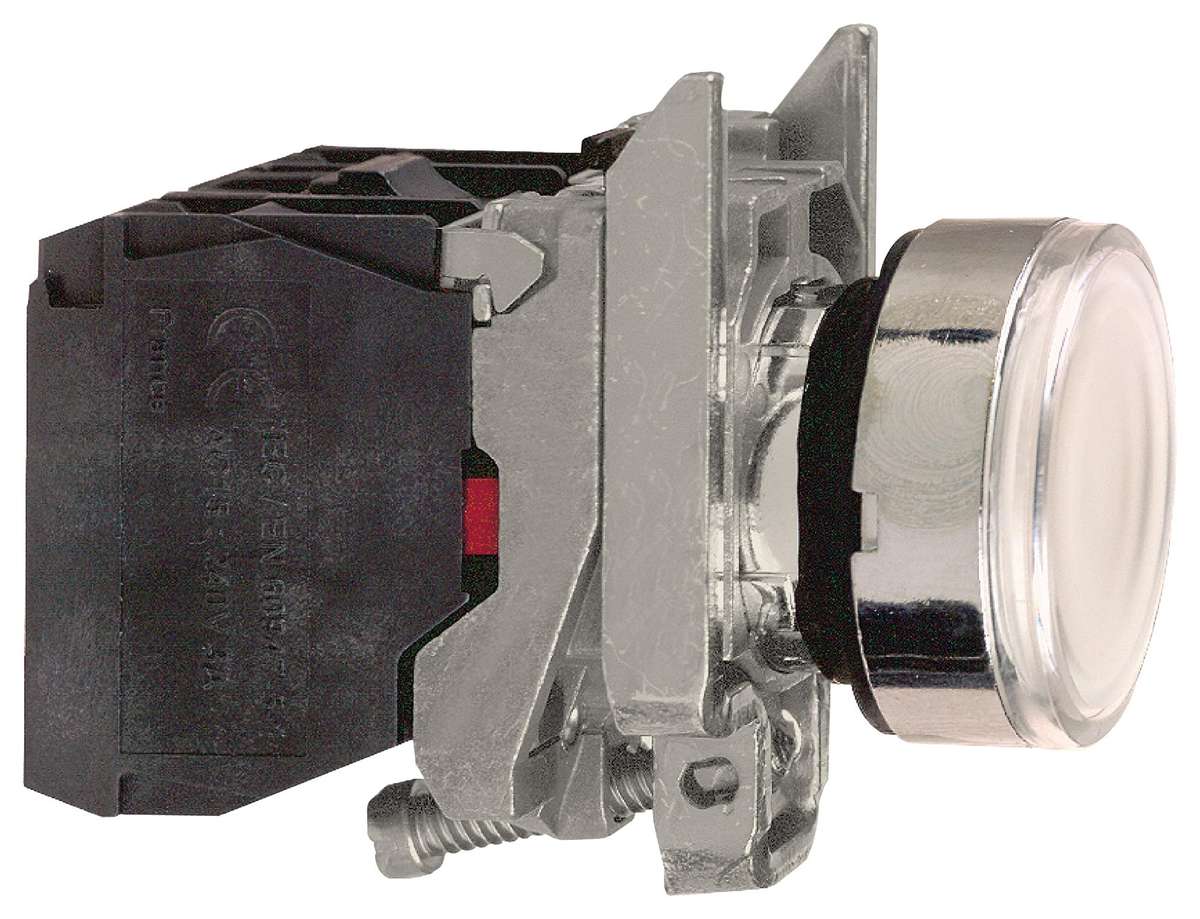

Schneider Electric (XB4BW31B5) Industrial Pushbutton Switch, 22.5 mm

Schneider Electric (XB4BW31B5) Industrial Pushbutton Switch, 22.5 mm

4 available / new
Only 4 left – grab it before it’s gone!
R1,989.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.
The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
2614704
Bob Shop ID
645126602
Industrial Pushbutton Switch, 22.5 mm, SPST-NO, SPST-NC, Momentary, Flush, WhiteProduct InformationPushbutton Switch Type: IndustrialProduct Range: HarmonyPanel Cutout Diameter: 22.5mmSwitch Operation: MomentaryContact Configuration: SPST-NO, SPST-NCPushbutton Actuator Style: FlushActuator / Cap Colour: WhiteContact Current Max: 6AContact Voltage AC Nom: 240VContact Current AC Max: 6AContact Voltage VAC: 120VContact Voltage DC Nom: -IP Rating: IP65, IP66, IP69, IP69KContact Current DC Max: 550mAContact Voltage VDC: 125VSwitch Mounting: Panel MountSwitch Terminals: Screw ClampIllumination Colour: WhitePanel Cutout (H x W): -Product OverviewThe XB4BW31B5 is a single-pole single-throw (SPST) Pushbutton Switch with 1NO +1NC slow-break silver alloy (Ag/Ni) contacts and screw clamp terminals. Thispushbutton switch features round signaling unit head, white flush spring returnplain lens integral LED operator, chromium-plated metal bezel and Zamak fixingcollar. This XB4 series pushbutton switch is suitable for use with the HarmonyXB4 range product. It meets with the EN/IEC 60204-1, EN/IEC 60947-1, EN/IEC60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, EN/ISO 13850, IEC 60364-5-53, JISC 4520, UL 508 and CSA C22.2 No 14 standards.Steady signaling5000000 cycles Mechanical durabilityIP66 Protection ratingIK05 Protection rating-25 to 70°C Ambient air temperature range for operationApplicationsAutomotive, Industrial, Commercial
Add to cart
