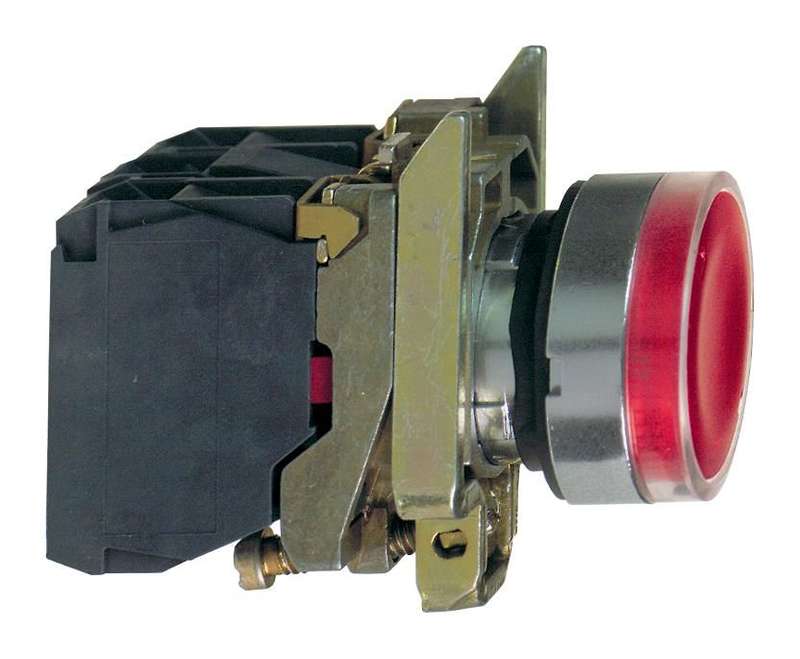

Schneider Electric (XB4BW34B5) Industrial Pushbutton Switch, 22.5 mm

Industrial Pushbutton Switch, 22.5 mm, SPST-NO, SPST-NC, Momentary, Flush, RedProduct InformationPushbutton Switch Type: IndustrialProduct Range: HarmonyPanel Cutout Diameter: 22.5mmSwitch Operation: MomentaryContact Configuration: SPST-NO, SPST-NCPushbutton Actuator Style: FlushActuator / Cap Colour: RedContact Current Max: 6AContact Voltage AC Nom: 120VContact Current AC Max: 6AContact Voltage VAC: 120VContact Voltage DC Nom: -IP Rating: IP65, IP66, IP69, IP69KContact Current DC Max: 550mAContact Voltage VDC: 125VSwitch Mounting: Panel MountSwitch Terminals: Screw ClampIllumination Colour: RedPanel Cutout (H x W): -Product OverviewThe XB4BW34B5 is a single-pole single-throw (SPST) 1NO+1NC illuminatedPushbutton Switch with chromium-plated metal bezel and Zamak fixing collar. ThisXB4 series commercialized round head pushbutton features spring return red flushwith plain lens operator, slow-break standard silver alloy (Ag/Ni) contacts,screw clamp connection terminals, protected LED light source and integral LEDbulb base.Steady signaling type5000000 cycles Mechanical durabilityClass I conforming to IEC 60536 protection against electric shockIP66 conforming to IEC 60529 IP protection ratingIK03 conforming to IEC 50102 IK protection ratingTH Protective treatmentApplicationsCommercial
