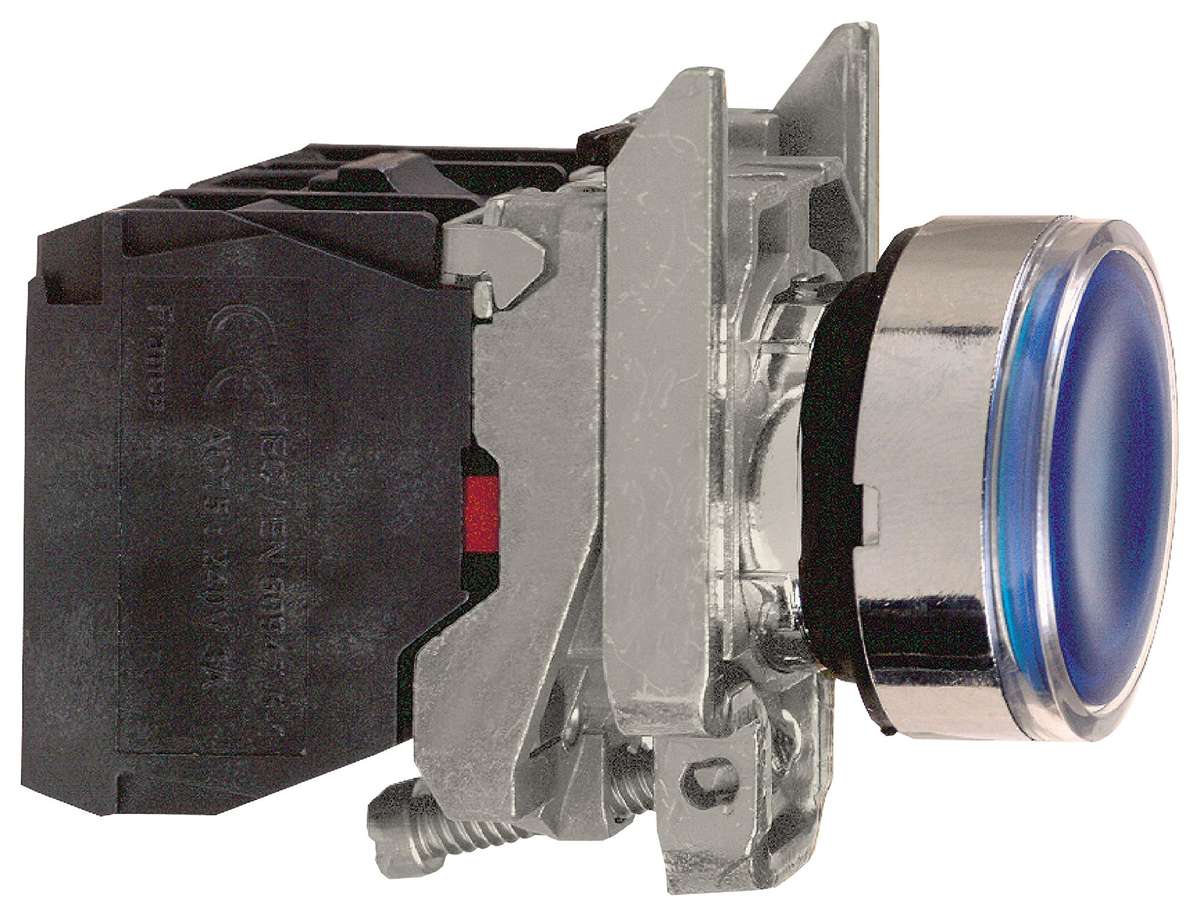

Industrial Pushbutton Switch, Harmony, 22.5 mm, SPST-NO, SPST-NC, Momentary,Flush, BlueProduct InformationPushbutton Switch Type: IndustrialProduct Range: HarmonyPanel Cutout Diameter: 22.5mmSwitch Operation: MomentaryContact Configuration: SPST-NO, SPST-NCPushbutton Actuator Style: FlushActuator / Cap Colour: BlueContact Current Max: 6AContact Voltage AC Nom: 240VContact Current AC Max: 6AContact Voltage VAC: 120VContact Voltage DC Nom: -IP Rating: IP65, IP66, IP69, IP69KContact Current DC Max: 550mAContact Voltage VDC: 125VSwitch Mounting: Panel MountSwitch Terminals: Screw ClampIllumination Colour: BluePanel Cutout (H x W): -Product OverviewThe XB4BW36B5 is a single-pole single-throw (SPST) Pushbutton Switch with 1NO +1NC slow-break silver alloy (Ag/Ni) contacts and screw clamp terminals. Thispushbutton switch features round signaling unit head, blue flush spring returnplain lens integral LED operator, chromium-plated metal bezel and Zamak fixingcollar. This XB4 series pushbutton switch is suitable for use with the HarmonyXB4 range product. It meets with the EN/IEC 60204-1, EN/IEC 60947-1, EN/IEC60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, EN/ISO 13850, IEC 60364-5-53, JISC 4520, UL 508 and CSA C22.2 No 14 standards.Steady signaling5000000 cycles Mechanical durabilityIP66 Protection ratingIK05 Protection rating-25 to 70°C Ambient air temperature range for operationApplicationsAutomotive, Industrial, Commercial
