Schneider Electric (XB4BW73731B5) Industrial Pushbutton Switch, 22.5 mm

Schneider Electric (XB4BW73731B5) Industrial Pushbutton Switch, 22.5 mm

New 25 available
R2,735.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 7 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
2614672
Bob Shop ID
674506840

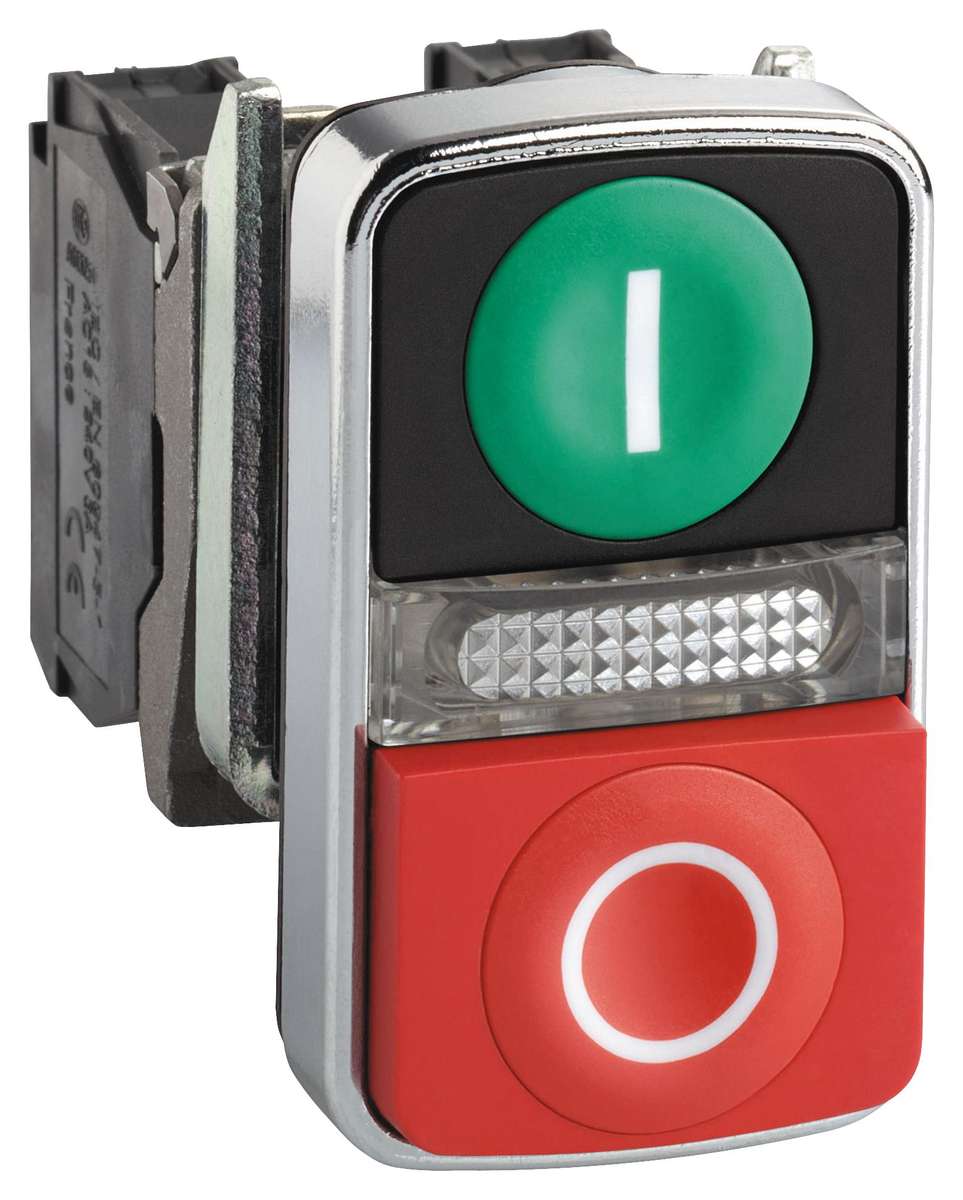

Industrial Pushbutton Switch, 22.5 mm, SPST-NO, SPST-NC, Momentary, Flush,Green, RedProduct InformationPushbutton Switch Type: IndustrialProduct Range: HarmonyPanel Cutout Diameter: 22.5mmSwitch Operation: MomentaryContact Configuration: SPST-NO, SPST-NCPushbutton Actuator Style: FlushActuator / Cap Colour: Green, RedContact Current Max: 6AContact Voltage AC Nom: 240VContact Current AC Max: 6AContact Voltage VAC: 120VContact Voltage DC Nom: -IP Rating: IP66, IP69KContact Current DC Max: 550mAContact Voltage VDC: 125VSwitch Mounting: Panel MountSwitch Terminals: Screw ClampIllumination Colour: Green, RedPanel Cutout (H x W): -Product OverviewThe XB4BW73731B5 is a double-headed Pushbutton Switch with chromium-plated metalbezel and Zamak fixing collar. This illuminated pushbutton switch featuresspring return 1 flush 1 projecting pushbuttons plus 1 central pilot light green"I" red "O" integral LED operator, 1NO + 1NC slow-break standard silver alloy(Ag/Ni) contacts, rectangular signaling unit head and screw clamp terminals.This steady signaling switch is suitable for use with the Harmony XB4 rangeproducts. It meets the EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4,EN/IEC 60947-5-5, JIS C 4520, UL 508, CSA C22.2 No 14 standards.1000000 cycles Mechanical durabilityIP69 and IP66 Protection ratingIK05 Protection rating-25 to 70°C Ambient air temperature range for operationApplicationsIndustrial, Automotive, Commercial
Add to cart
