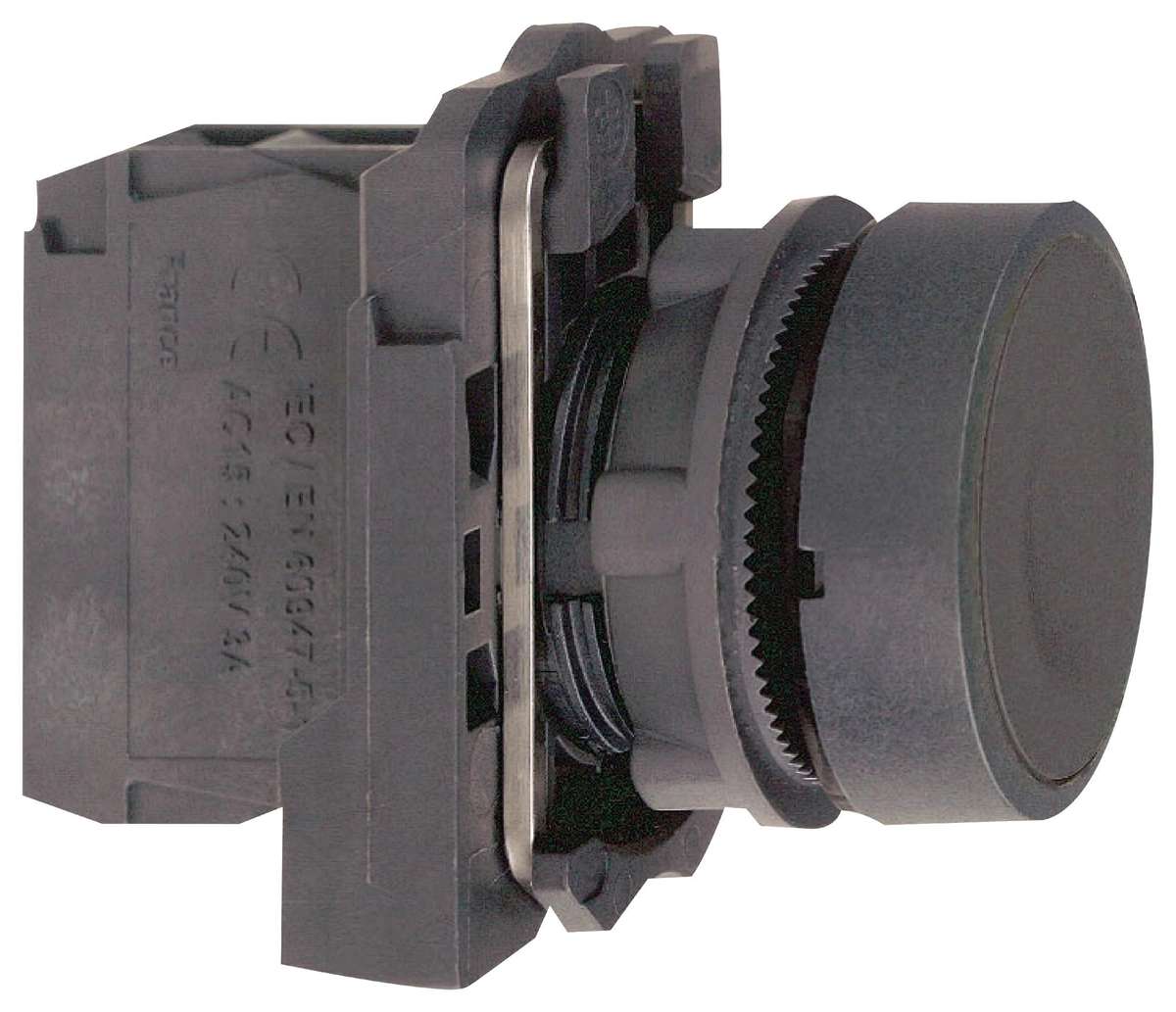

Schneider Electric (XB5AA21) Industrial Pushbutton Switch, 22 mm

Industrial Pushbutton Switch, 22 mm, SPST-NO, Momentary, Flush, BlackProduct InformationPushbutton Switch Type: IndustrialProduct Range: HarmonyPanel Cutout Diameter: 22mmContact Configuration: SPST-NOSwitch Operation: MomentaryPushbutton Actuator Style: FlushIP Rating: IP66, IP67, IP69, IP69KActuator / Cap Colour: BlackContact Current Max: 6AContact Voltage AC Nom: 120VContact Current AC Max: 6AContact Voltage VAC: 120VContact Voltage DC Nom: -Contact Current DC Max: 550mAContact Voltage VDC: 125VSwitch Mounting: Panel MountSwitch Terminals: Screw ClampIllumination Colour: Non IlluminatedPanel Cutout (H x W): -Product OverviewThe XB5AA21 is a single-pole single-throw (SPST) Pushbutton Switch with plasticbezel and fixing collar. This pushbutton switch features black flush unmarkedspring return operator, 1NO slow-break standard silver alloy (Ag/Ni) contacts,round signaling unit head and screw clamp terminals. This XB5 series switch issuitable for use with the Harmony XB5 range products. It meets the EN/IEC60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C 4520, UL 508 and CSA C22.2 No14 standards.5000000 cycles Mechanical durability1000000 cycles Electrical durabilityIP66 Protection ratingIK03 Protection rating-25 to 70°C Ambient air temperature range for operationApplicationsIndustrial, Aerospace, Defence, Military, Commercial
