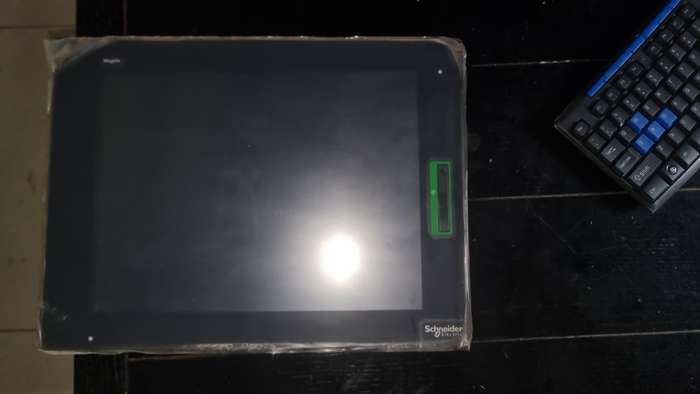

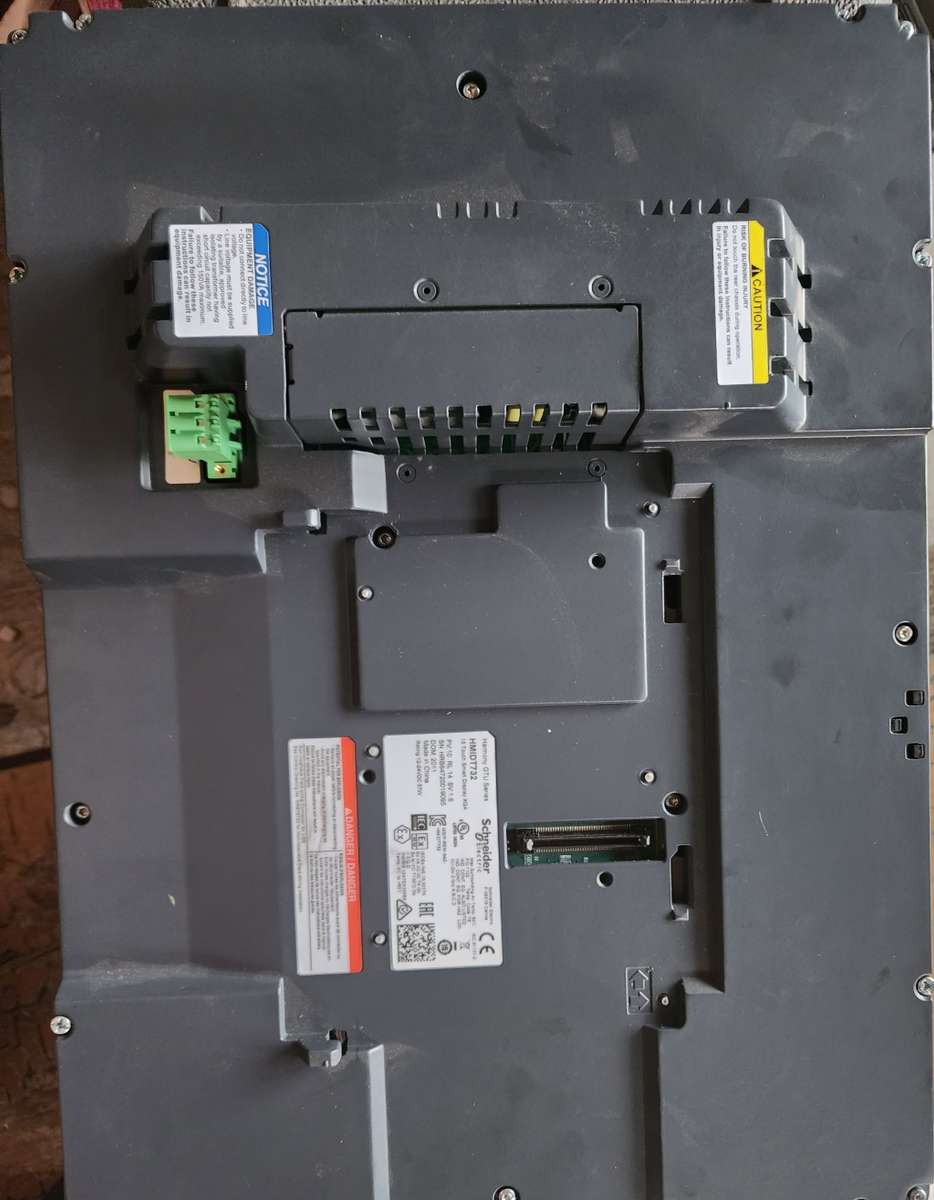

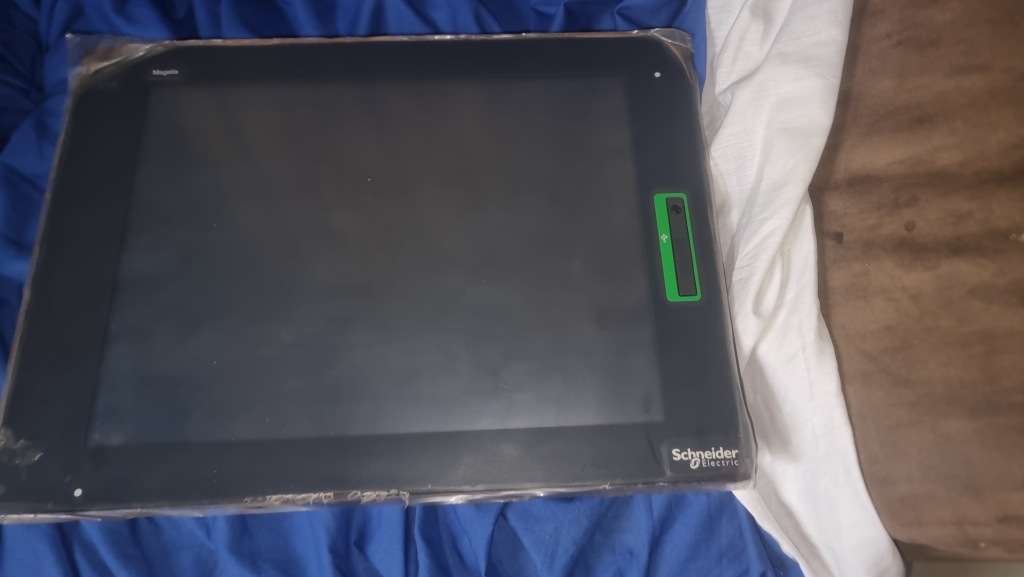

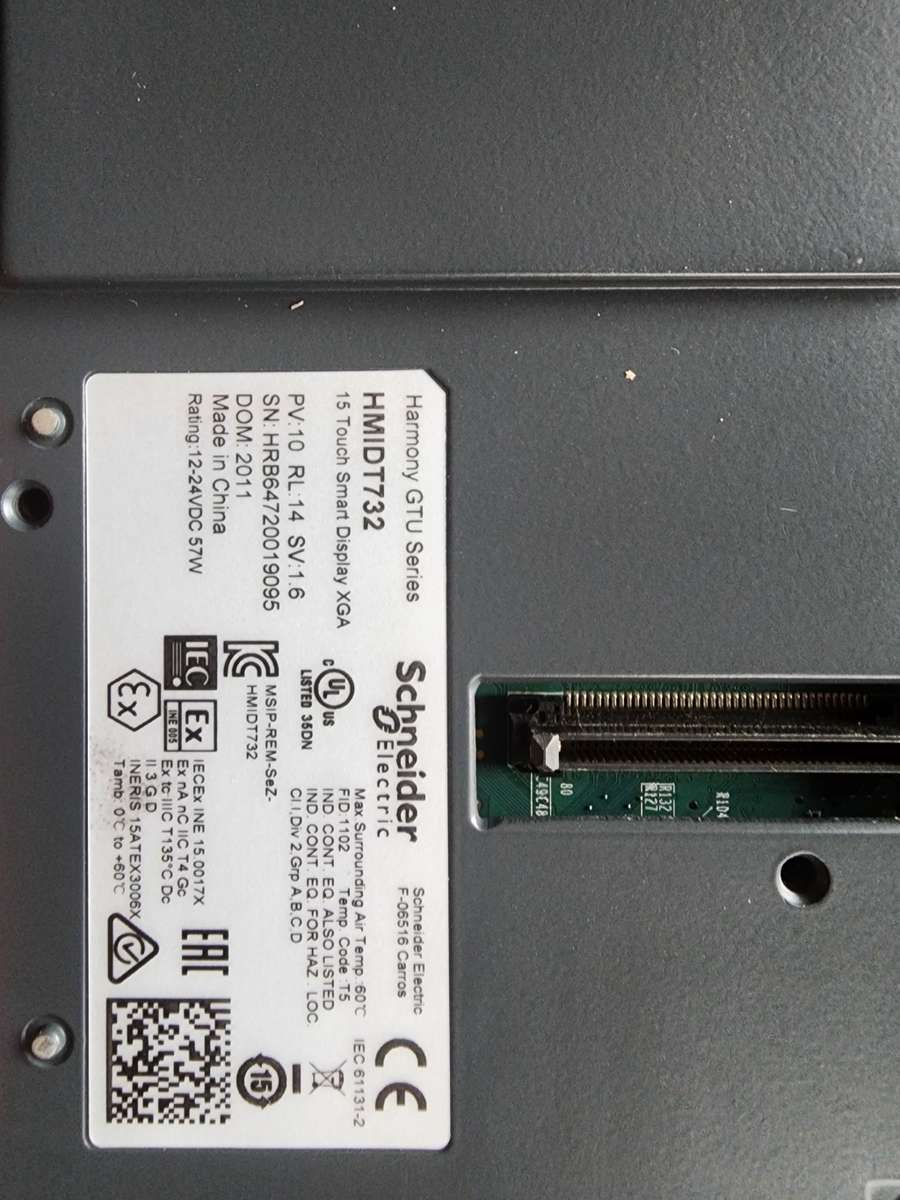

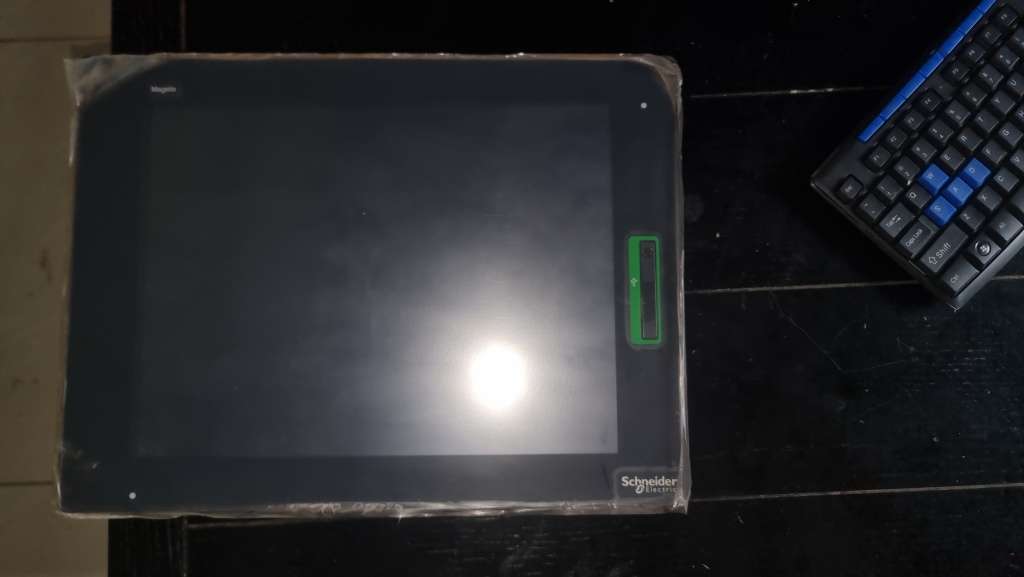

Schneider Hmi (HMIDT732)

This Magelis GTU universal touchscreen operator interface (HMI) is supplied with 12V to 24V DC, has a 15" color TFT LCD display with 1024 x 768 pixels and 16M colors. It can handle multi-touch gestures. It is ideal for high-performance monitoring and communication thanks to a smartphone-like interface for use in the most demanding automation systems, including industrial control equipments, hazardous locations, and marine applications. The screen displays text messages, graphic objects and mimic diagrams, control and configuration of data. It also offers removable storage, dual LAN and dual communication interfaces. It resists permanent 60°C temperature, this makes it ideal for installation in areas where ventilation of the cabinet is not possible or risky.

Specifications

Main

Range of product

Harmony GTU

Product or component type

Flat screen

Terminal type

Touchscreen display

[Us] rated supply voltage

12...24 V DC power supply

Supply voltage limits

10.828.8 V

Power consumption in W

22 W

Inrush current

30 A

Complementary

Integrated connection type

USB 2.0 type A

USB 2.0 type mini B

Touchscreen resolution

1024 x 1024

Pixel resolution

1024 x 768

Display size

15 inch

aspect ratio

4:3

Display type

Colour TFT LCD

Display resolution

1024 x 768 pixels XGA

Display colour

16 million colours

Backlight lifespan

50000 hours

Touch panel

Multi touch analogue resistive

Function available

Brightness sensor

Type of cooling

Natural convection

Type of installation

Indoor installation

Cut-out dimensions

383.5 (+ 1/- 0) x 282.5 (+ 1/- 0) mm

Width

397 mm

height

296 mm

Depth

67 mm

Net weight

4.5 kg

This unit does not come with original box. This unit was an display unit.

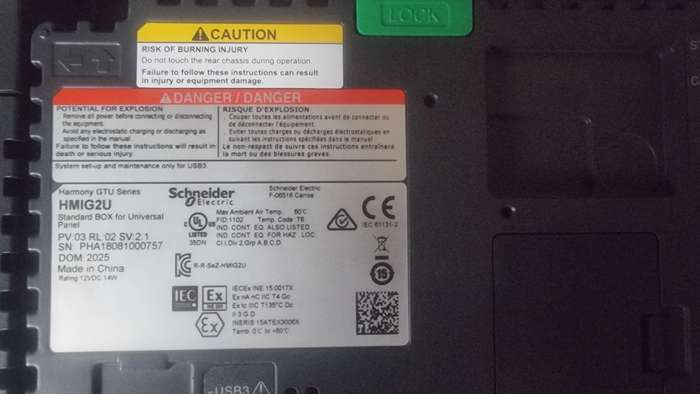

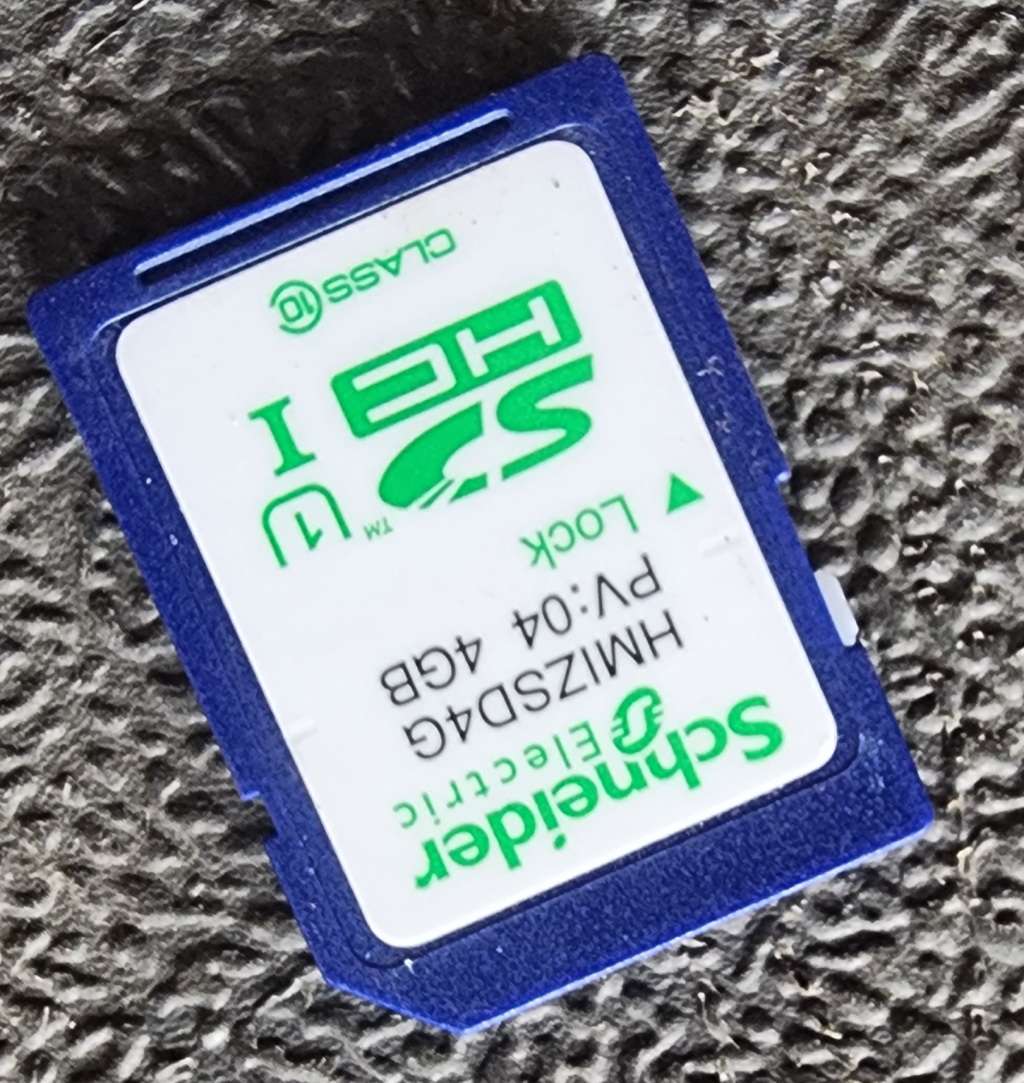

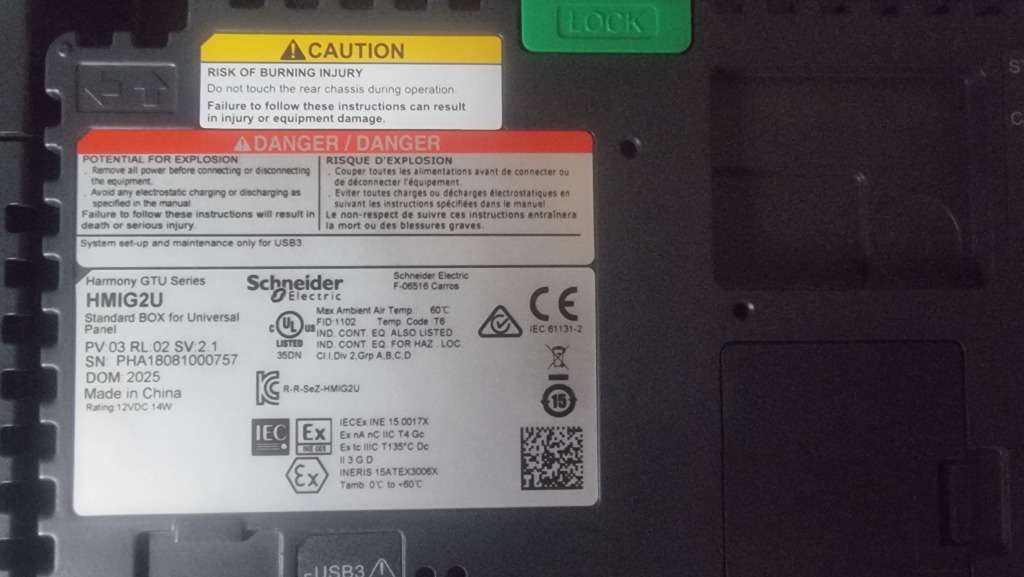

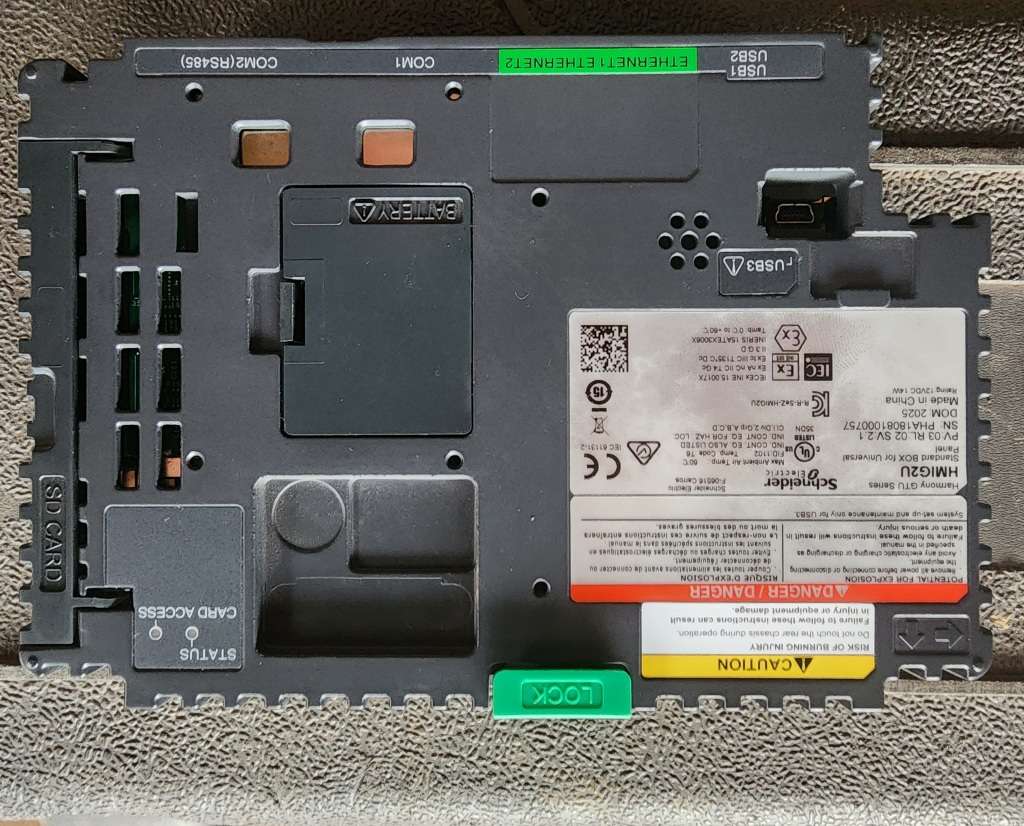

1x HMIDT732, 1X HMIG2U, 1X HMIZSD4G all for 1 bid
