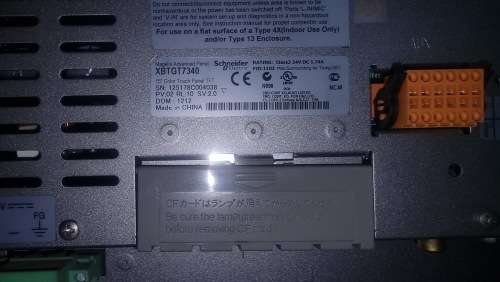

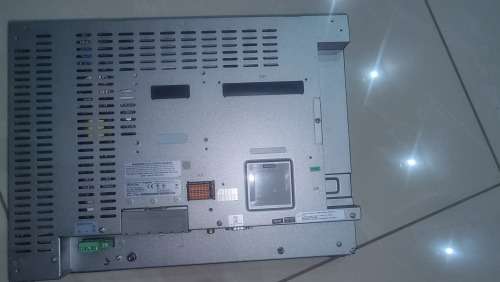

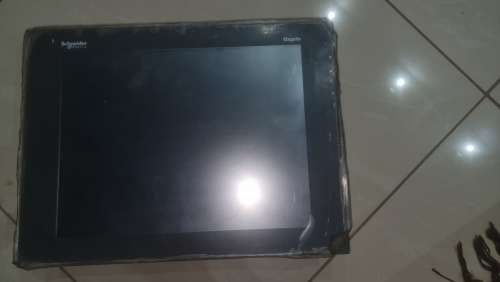

Schneider HMI XBTGT7340. Was a display model hmi is still in a very good condition still has the screen protector on. 100% Working condition. Does not come with original box. advanced touchscreen panel - 1024 x 768 pixels XGA - 15" - TFT LCD - 24 V
Specifications
Range of Product
Harmony XBTGT
Product or Component Type
Advanced touchscreen panel
Display Type
Backlit colour TFT LCD
Display colour
65536 colours
Display Resolution
1024 x 768 pixels XGA
Display size
15 inch
Software Type
Configuration software
Software Designation
Vijeo Designer
Operating System
Harmony
Processor name
CPU RISC
Processor frequency
266 MHz
Memory description
512 kB SRAM back up of data lithium battery
32 MB flash EPROM application memory
Integrated connection type
RJ45 COM2 serial link RS485 <= 187.5 kbit/s Siemens MPI (187.5 kbits/s)
male SUB-D 9 COM1 serial link RS232C/RS422/RS485 <= 115.2 kbits/s
removable screw terminal block power supply
RJ45 Ethernet TCP/IP
3 removable screw terminal block digital output
removable screw terminal block audio output
removable screw terminal block digital input
mini-jack audio input
RCA composite video input (NTSC/PAL)
2 USB type A master port (V1.1)
Resistance to electrostatic discharge
6 kV IEC 61000-4-2 level 3
Cut-out dimensions
