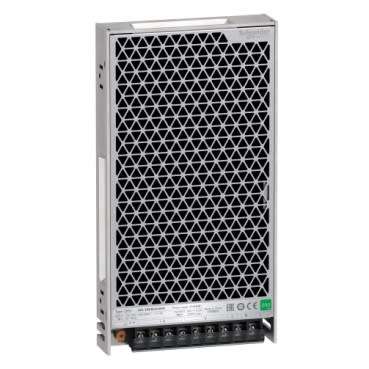

2X brand new schneider ABL2REM24085K single phase power supply, 100...240V input, 24V DC output, 200W, 8,3A
Specifications
Main
Range of produc
Easy Modicon ABL2
Product or component type
Power supply
Power supply type
Regulated switch mode
Rated power in W
200 W
Main Input Voltage
100...120 V AC single phase
200...240 V
Output voltage
24 V DC
Power supply output current
8.3 A
Operating position
Any position
Vibration resistance
4 gn (f= 10500 Hz) conforming to IEC 61131-2
Name of test
Electromagnetic hypersensitivity (EHS) conforming to IEC 61000-6-2 level A
Complementary
Input voltage limits
90...132 V
180...264 V
Network frequency
47...63 Hz
Inrush current
60 A at 100...120 V AC
60 A at 200...240 V AC
Cos phi
0.5
Efficiency
89 %
Power dissipation in W
24.7 W
Current consumption
2 A at 240 V
Input protection type
Integrated fuse (not interchangeable)
Output voltage limits
20.4...27.6 V
Line and load regulation
+/- 1 %
Holding time
>= 12 ms at 115 V
