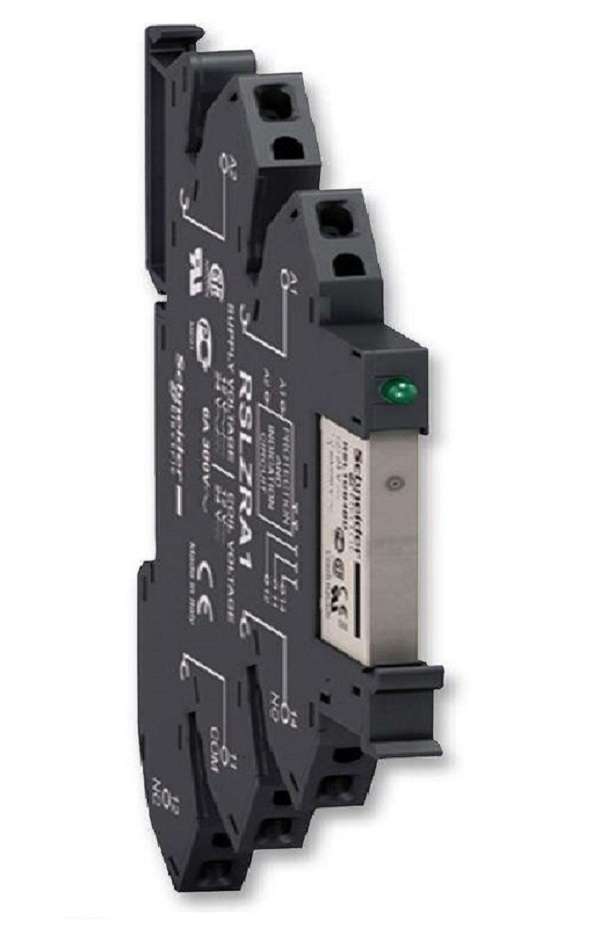

Schnieder RSL1PVBU General Purpose Relay, RSL Series, Interface, SPDT

The RSL1PVBU is an Interface Plug-in Relay with SPDT silver alloy contact.This RSL-series socket mount interface relay features as compact size, 1 or 2C/O contacts, used on industrial machines, machines and building equipment,simple hard-wired logic control system cycles, extra feature for industrialPLCs.24VDC Control circuit voltage 6A Rated operational current 400VAC/300VDCSwitching voltage 72000 cycles/hour no-load, 360 cycles/hour under loadoperating rate 10000000 Mechanical durability cycles 60000 to 2000000Electrical durability cycles for resistive load at 6A, 250V 0.17W Averageconsumption 12ms Operating time between coil energisation and the making of theon-delay contact -40 to 55°C Ambient air temperature range for operation.
