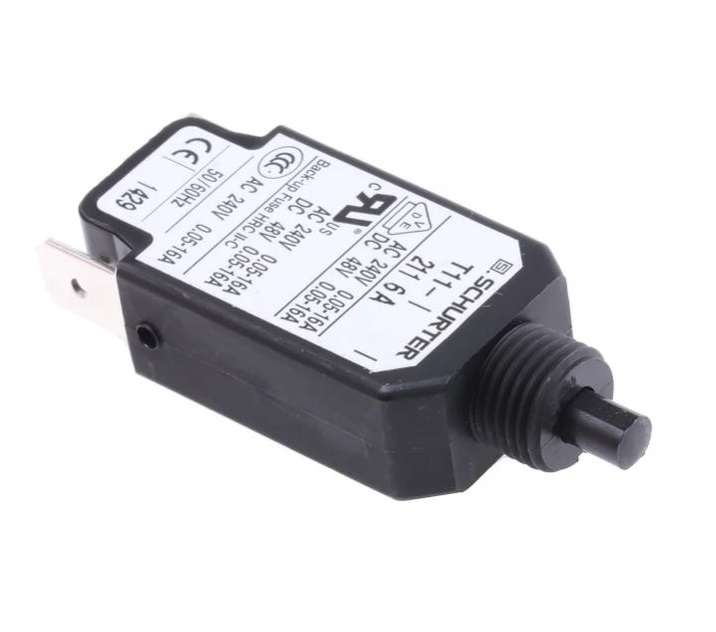

Schurter (T11 211 6A) Thermal Circuit Breaker, T11 211, 6 A, 1 Pole

Thermal Circuit Breaker, T11 211, 6 A, 1 Pole, 48 VDC, 240 VAC, PanelProduct InformationProduct Range: T11 211Current Rating: 6ANo. of Poles: 1 PoleVoltage Rating V DC: 48VDCVoltage Rating VAC: 240VACCircuit Breaker Mounting: PanelProduct OverviewThe T11 211 6A is a 1-pole 6A panel-mount threaded neck Thermal Circuit Breakerwith 6.3x0.8mm quick connect terminals. The T11 series circuit breaker forequipment is a line of small, single pole push to reset, overload protectivedevices. The trip mechanism is of the superior latch type. A high contact forcecan be maintained until the unit trips. The Swiss precision design is simplewith few moving parts. This results in an extremely reliable CBE with highresistance against shock and vibration. It has short circuit capacity of 96A at240VAC voltage.Wide rated current rangeCompact and reliable designImmunity to inrush currents and line transientsReset type actuator-5 to +60°C Ambient temperature rangeApplicationsConsumer Electronics, Power Management, Industrial
