Scolmore - C13F Rewireable Lockable Iec + Lszh - Scolmore - C13F Rewireable Lockable Iec + Lszh

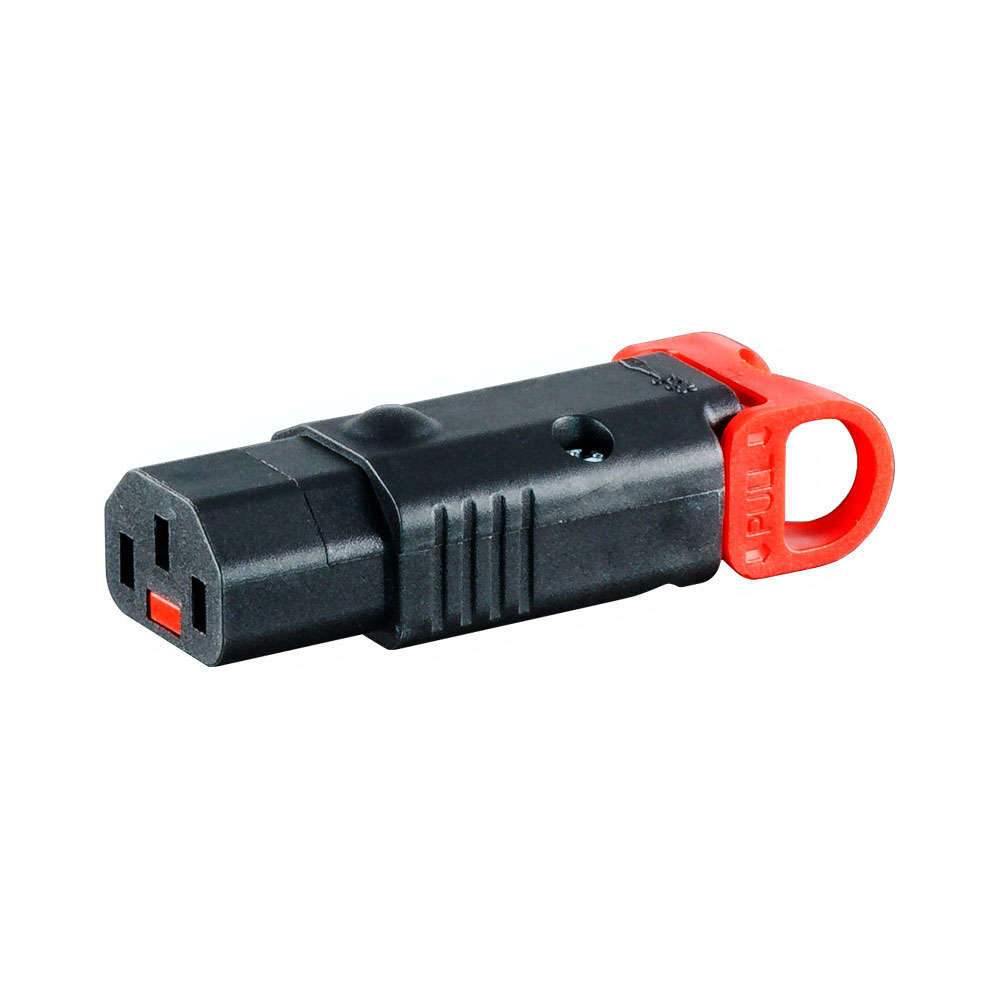

IECLock C13 Female Lockable Connector - Rewireable

Secure power where it matters most. This IECLock C13 rewireable connector delivers a rock-solid, vibration-resistant connection that won't pull loose - ideal for mission-critical IT, AV and industrial environments. The integrated locking mechanism and easy-pull red release handle ensure fast, safe disconnection only when you want it.

FEATURES

Locking C13 IEC Connector - Prevents accidental power loss with >100N retention force
Rewireable Design - Flexible installation and easy field termination
Fits Standard C14 Inlets - Universal compatibility
Anti-Vibration Construction - Ideal for racks, cabinets and mobile equipment
Easy-Pull Lock Release Handle - Quick, controlled disconnection
LSZH Housing - Low smoke, zero halogen for safer installations
Cold-Condition Ready - Suitable for low-temperature environments

SPECIFICATIONS

Electrical Ratings: 10A 250V
Mechanical and Electrical
Terminal Capacity: 3-Core Cable up to 1.5mm²
Max. Cable Diameter: 8mm
Dielectric Strength: 1.5kV Max.
Withdrawal Force: >100N
Protection Class: Class I (IEC EN 61140)
Flammability Rating: UL94 V-0 Equivalent
Materials
Housing and Chassis: Nylon PA66, LSZH (Black)
Lock Lever and Handle: Polycarbonate (Red Handle)
Terminals: Brass
Screws: Steel, Nickel-Plated
Spring and Locking Blade: Spring Steel
Dimensions
Overall Length: Approx. 75mm
Width: 30.1mm
Height: 46.9mm
Compliance and Standards
IEC / EN 60320-1
UL 60320-1
CSA C22.2
AS/NZS 60320.1
