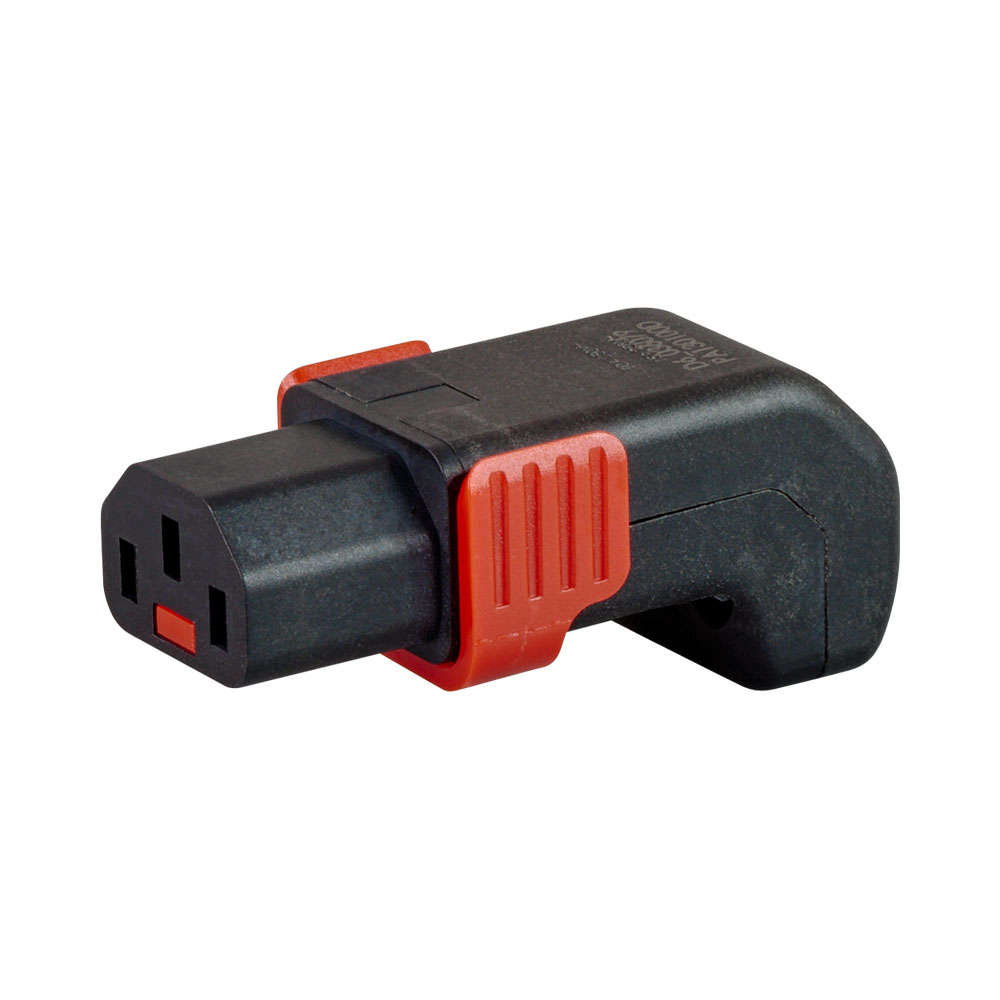

IECLock Female Kettle Lockable Connector - Angled-Down and Rewireable

Lock it in. Power with confidence.

The LinkQnet IEC Female Kettle Lockable Connector is built for secure, vibration-resistant power connections in demanding IT and AV environments. Its lock-in mechanism prevents accidental disconnections, while the angled, rewireable design ensures a clean fit in tight spaces - ideal for racks, PDUs and critical equipment.

FEATURES

Lockable IEC C13 Connector - Prevents accidental power loss
Angled-Down Design - Perfect for tight rack and cabinet installations
Rewireable Construction - Easy cable termination and maintenance
Anti-Vibration Locking Mechanism - Stays connected in high-movement environments
Easy-Grip Release Tab - Quick, safe disconnection when needed
Dual-Screw Housing Design - Slotted and cross-head screws allow easy installation with common tools
Cold-Condition Rated Appliance Inlet - Designed for reliable performance in low-temperature environments

SPECIFICATIONS

Electrical Ratings
Rated Current and Voltage: 10A Max. @250V
Dielectric Strength: 1.5kV Max.
Withdrawal Force: >100N
Materials
Outer Body and Chassis: Nylon (PA66), LSZH, RAL9004 Signal Black
Cable Restraint: Nylon (PA66)
Housing Screws and Cable Restraint Screws: Steel, Nickel Plated
Lock Pivot Lever: Polycarbonate
Red Handle: Polycarbonate LSZH, RAL3020 Traffic Light Red
Terminal Block and Sliding Terminal: Brass
Terminal Screws: Steel, Yellow Passivated
Spring and Locking Blade: Spring Steel (Locking Blade Zinc Plated)
Terminal and Mechanical
Terminal Capacity: 3-Core Cable, 1.5mm² Typical (up to 2.5mm² Max.)
Torque Values: Terminal Screws: 0.4Nm, Strain Relief Clamping Screws: 0.3Nm
Flammability Rating: Equivalent to UL94V-0
Protection Class: Suitable for Class I Appliances, Complies with IEC EN 61140
Environmental
Ambient Operating Temperature: 25°C
Cold Condition Use: Suitable for Cold Environments
Physical Dimensions
Overall Length: 46.9mm
Body Width: 30.1mm
Body Height: 28.8mm
Connector Face Width: 22.7mm
Cable Entry Length: 15.4mm
Pin Section Length: 21.1mm
Standards and Compliance
EN 60320-1:2015 (KEMA-KEUR File: 35-102059)
UL 60320-1 (UL File E475619)
CSA C22.2 No. 60320-1-11
AS/NZS 60320.1 (SAA File 151920)
