Description :

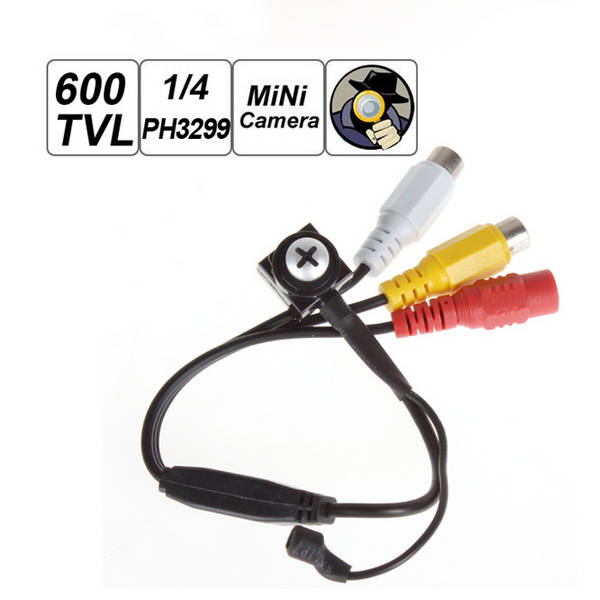

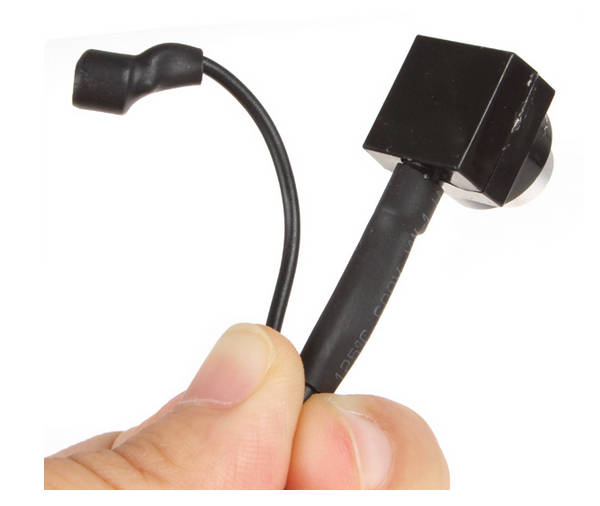

Screw Lens 1.4" 600TVL Mini Camera CCD Surveillance CMOS CCTV For Security Surveillance Monitoring
Features :
1. This surveillance pinhole video mini camera can be used as one component of surveillance systems in various needs.

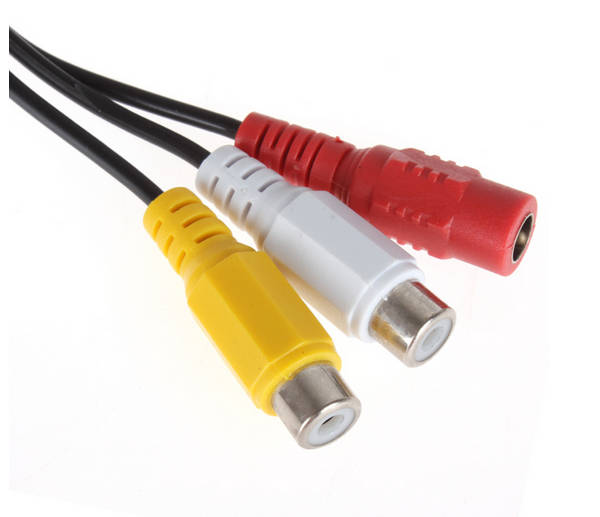

2. Support video and audio output.
3. Super compact design and small size. Miniature covert shape, easy to hide.
4. DSP technique, high sensitive, steady and high clear image quality security system products.
5. Newest AGC circuitry processing technique, electronic shutter, white balance, backlight compensation and many function mini camera.
6. Adopt high-quality pinhole lens, have excellent image and performance.
7. Widely used for ATM, jewelry shop, finance room, monitoring and many other kind of surveillance needs.
Specification :
Function : Mini Surveillance Digital CCD Camera
Focus Lens : 3.7mm
Image Sensor : 1/4" PH3299
Horizontal Resolution : 600TVL
Minimum Illumination : 0.5LUX
S/N Ratio : > / = 48dB
Gama : 0.45
Frame Speed : 60 f/s
White Balance : Auto
Video Out : CVBS 1V p-p
Synchronization System : Inter-sync
TV Format : NTSC / PAL Optional
Power : 12V, 1A
Input power : DC 5~12V (with step-down AV cable)
Power Consumption : 80mA
Image Color : Color / B & W
Camera Color : Black & Silver
Camera(L x W x H) : 14.5 x 14.5 x 20mm
Overall Length : 250mm
Package Dimensions(L x W x H) : 90 x 58 x 50mm
Approved :
CE / FCC
Package includes :
1 x Screw Lens 1.4" 600TVL Mini Survelliance Camera
1 x User Manual
Comes in Color Retail Box :)
