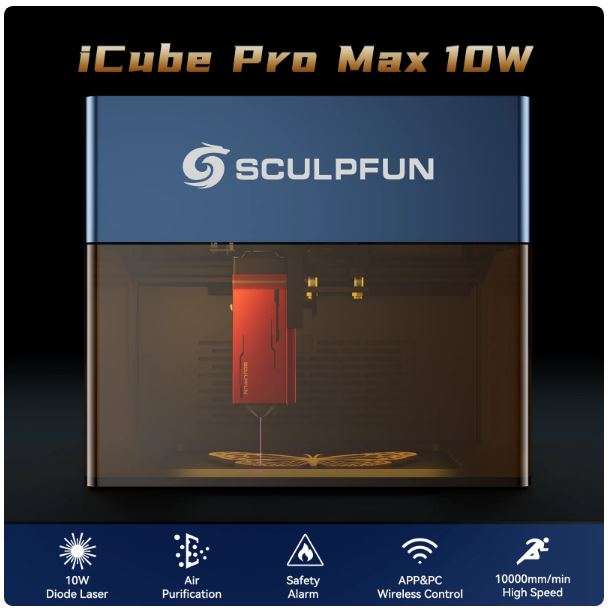

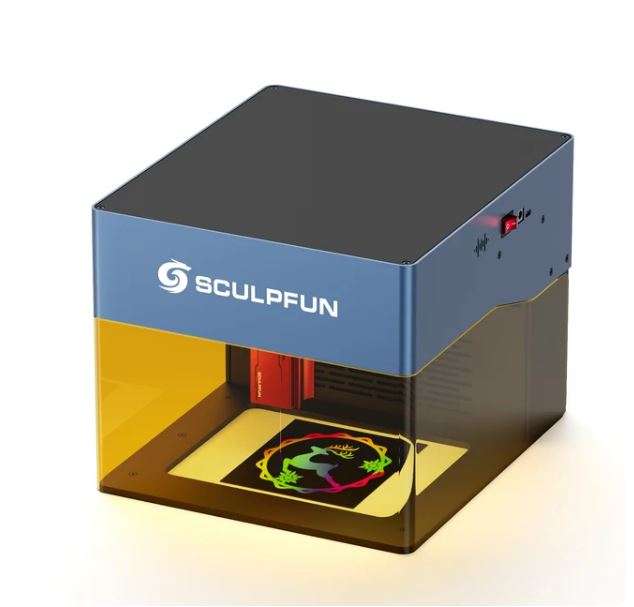

Sculpfun iCube Pro Max 10W Laser Engraver Portable Laser Engraving Machine with Smoke Filter Temperature Alarm Ultra Fine 0.08mm (10006926)
Your browser does not support the video tag.
Features:
10W Powerful Cutting Laser: The iCube Pro Max uses 10W diode laser with 0.08mm laser focus. It has stronger laser performance, cutting penetration and higher working efficiency, which can engrave or cut more difficult materials and complete the laser tasks faster.
High-Speed Engraving: iCube ProMax 10W laser engraver with the 32-bit motherboard greatly improves the engraving efficiency, which can reach 10000mm/min engraving speed.
With Smoke Filter: Sculpfun iCube laser engraver is equipped with the smoke filtration system that effectively filters the smoke generated during the engraving and cutting process without the enclosure, which makes it more convenient to engrave and cut in an office or home. Bringing more usage scenarios and enjoying the fun of engraving without limitation.
Multiple Connection Methods: The laser engraving machine supports mobile phone and computer system connection. You can connect to iCube machine via your mobile phone with Sculpfun APP, or you can connect to the computer with the BT function or Type-C interface data cable to use. It is compatible with Win7/Win8/Win10/Win11/MAC/IOS/Android/Linux system.

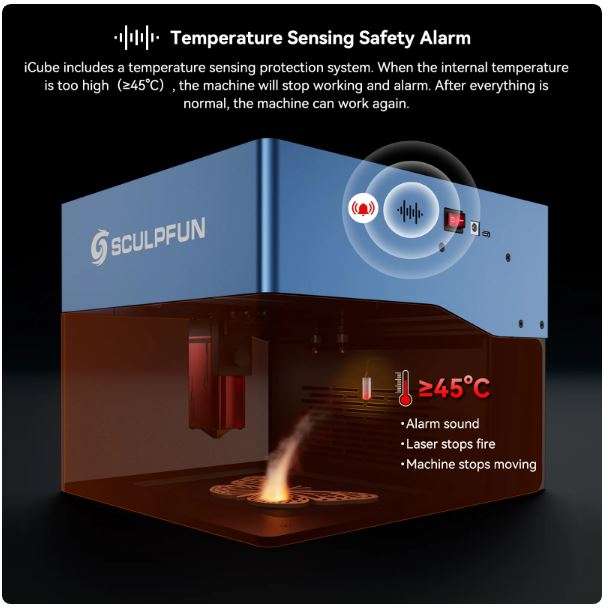

Temperature Alarm Function: Built with the temperature alarm device, the machine will stop running and emit a buzzer alarm when the temperature inside the engraving machine is over 45 to ensure the safety of users and equipment. And when the temperature descends, restart the machine to start the work.
Enclosed Eye Protection Sh ield: iCube portable laser engraver is designed with a detachable fully enclosed Acrylic material eye protection shield, which can effectively protect your eyes from different angles. It enables you to observe the laser engraving process without wearing the goggles.
Engraving Objects without Size Limit: With the unique semi-open structure design, there is no limitation by the size of the engraving objects. You can place them inside the machine or put the machine on the surface of some large objects to perform the tasks. The pattern's engraving area is 120x120mm which can meet your various engraving demands.
Replaceable Laser Lens: Sculpfun iCube series adopts an innovative laser head that supports to replace the laser lens, which greatly improves the service life of the laser by more than 10 times longer than that of other general lasers. When the lens is damaged or dirtied after long-term use, it can be replaced to restore the cutting power.

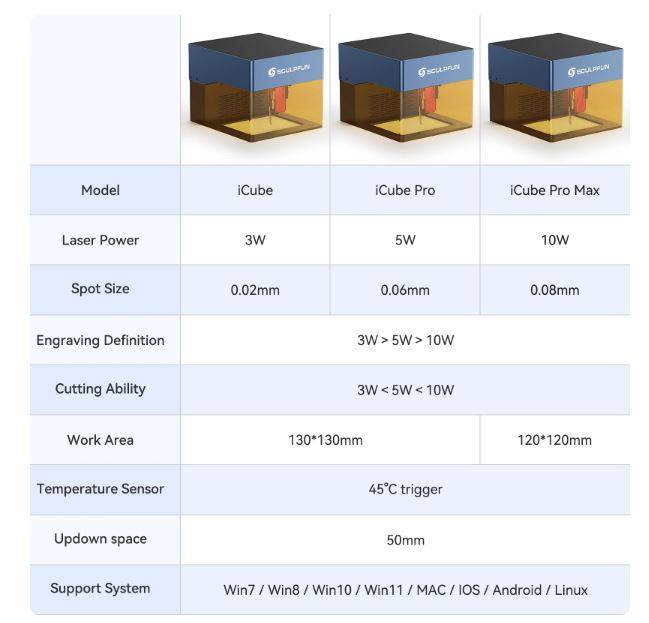

Specification: Product Model: Sculpfun iCube ProMax 10W Fan Speed: 5000RPM Temperature Sensor: 45 Trigger Bluetooth: 4.2 Wi-Fi: 2.4Ghz Wavelength: 455nm Engraving Area: 120x120mm Laser Head Power: 10W Image Format: JPEG/BMP/TIF/GIF etc. Laser Spot: 0.08mm Working Voltage: 110-240V AC, 50/60Hz Working Current: 12V 7A Optimal Focusing Distance: 40mm Support System: Win7/Win8/Win10/Win11/MAC/IOS/Android/Linux
Operation Application Software: Computer: LightBurn/LaserGRBL Mobile Phone: Sculpfun APP Product Weight: 3.2KG Product Size(LWH): 262*300*226mm
Some Important Tips: 1: About the Engraving Materials: Note that any specular reflective objects can not be engraved, otherwise the laser reflection will damage the laser head.
2: About the smoke filter: A free set of cotton filter is attached with purchasing, it needs to be replaced periodically to ensure the filter effect. 3: About the laser lens: A free lens is attached in the package with purchasing, which also can be ordered separately.
Your browser does not support the video tag.
Packing List: 1 x Laser Engraver 1 x U-Shaped Shield 1 * Metal Plate 1 x Laser Head 1 x Power Adapter 1 x Power Cable 1 x Type-C Data Cable 1 x Cotton Filter Set 1 x Lens Repair Kit 1 x Goggle 1 x Basswood Board 1 x MDF 1 x Installation Instruction
Precautions:
Because of the powerful laser, it is forbidden to run the engraving machine unattended. Please pause it if you're not around.
Please refer to the user manual for detailed machine instructions and parameter settings.
Please install the laser protective cover before operating the machine; if not, a pair of goggles is needed.
Do not touch the laser with your hands, or it may burn your hands.
Please avoid strong impact on the machine.
Children under 14 are not allowed to use this product and children over 14 need adult supervision.
Do not apply the laser directly to any specular reflective objects as this may cause injury to the operator or burn the laser.
