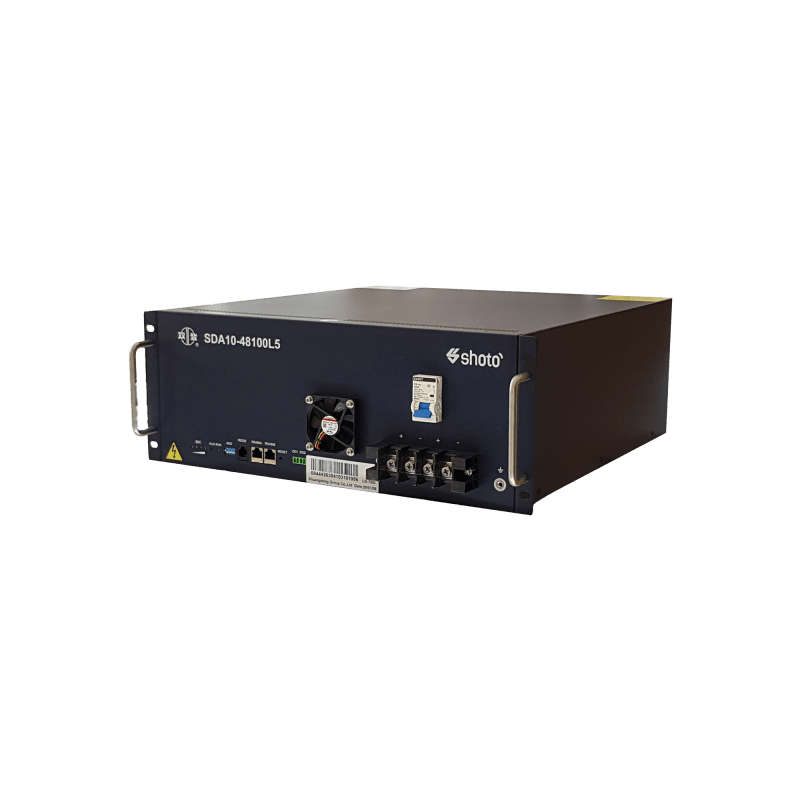

SDA10-48100 series uses new LiFePO technology and intelligent management system.This reliable SHOTO product is safe, durable and easy to install in any new or existing telecom sites,especially suitable for off-grid and poor sites.
Key advantages;
Item | Parameter |
Nominal voltage | 48V |
Rated capacity | 100Ah(0.2C to 40V at 25 °C) |
Operating voltage range | 40V-56.4V |
Charging voltage | 56.4V |
Charging current(current-limiting) | 10A |
Discharging cut-off voltage(maximum) | 100A |
Discharge cut-off voltage | 40V |
Width | 442mm |
Height | 177mm |
Depth | 480mm |
Weight | About 45.7kg |
Installation method | Rack mounted/wall mounted |
Communication interface | RS232/RS485 |
Indicator state | ALM/RUN/SOC |
Cycle life | 6000 cycles at 80% DOD,25°C |
Custom function | S/N Code;Dry contact alarm |
Alarm and protection | Over voltage,under voltage,short circuit,overload,over temperature,low temperature protection etc. |
