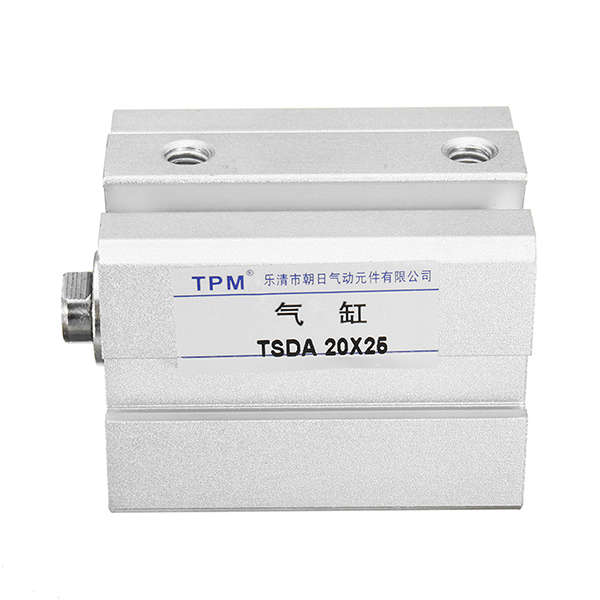

SDA20x25 20mm Bore 25mm Stroke Double Acting Pneumatic Air Cylinder

20 available / new

R426.00

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3586

93.06 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Condition

New

Location

International

Bob Shop ID

643387405

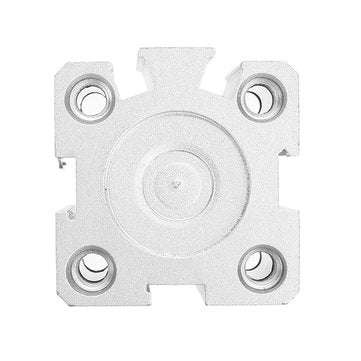

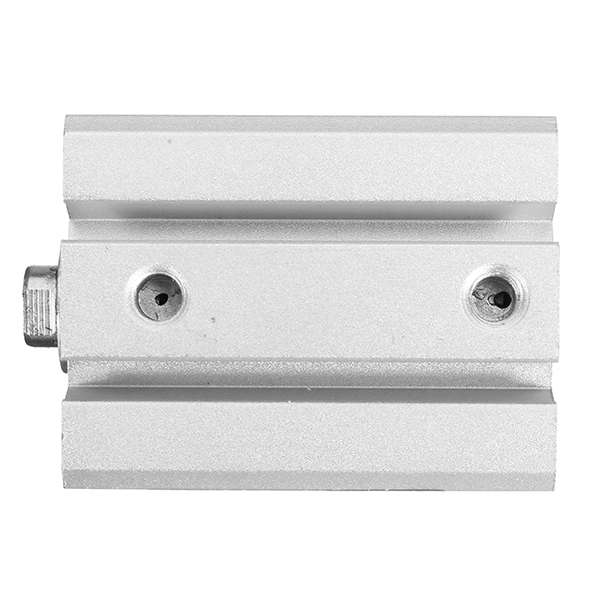

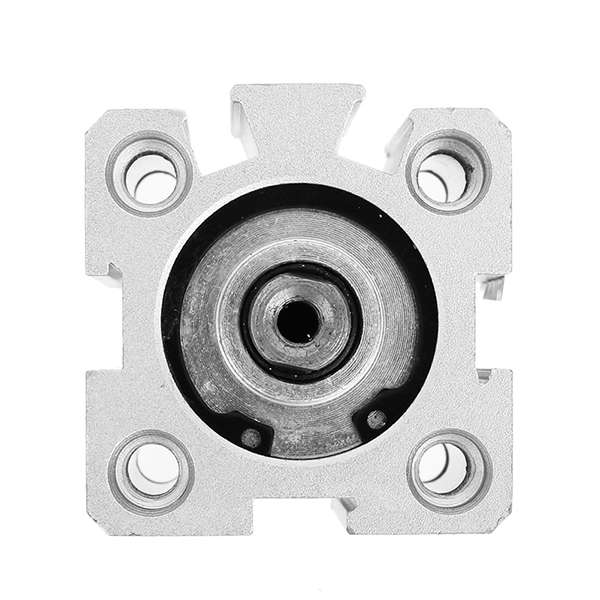

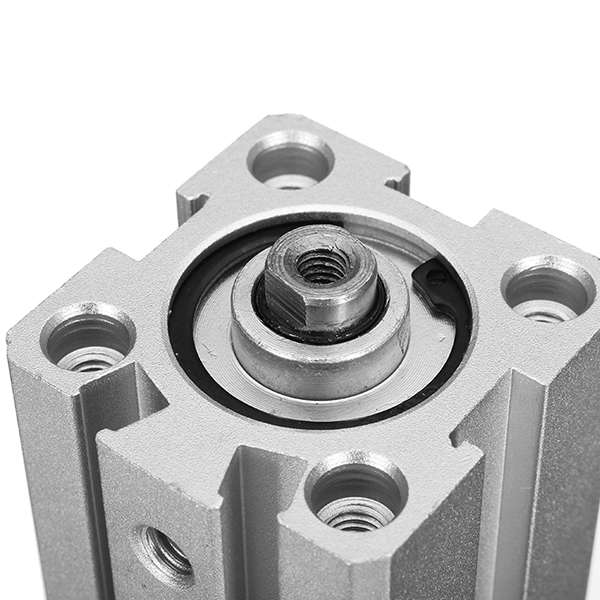

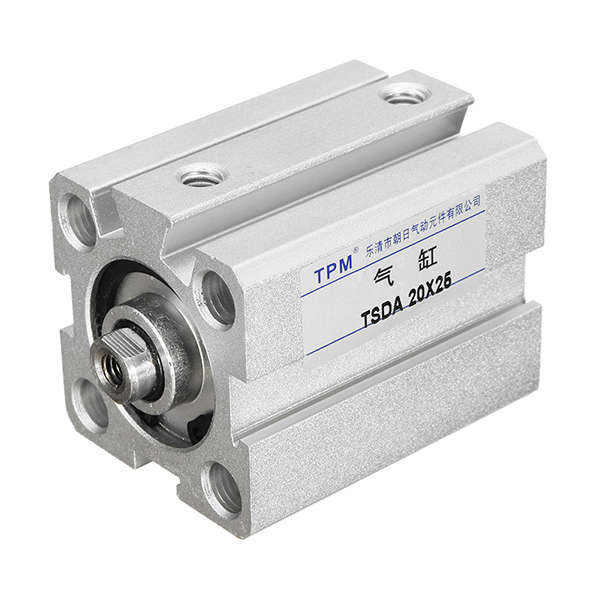

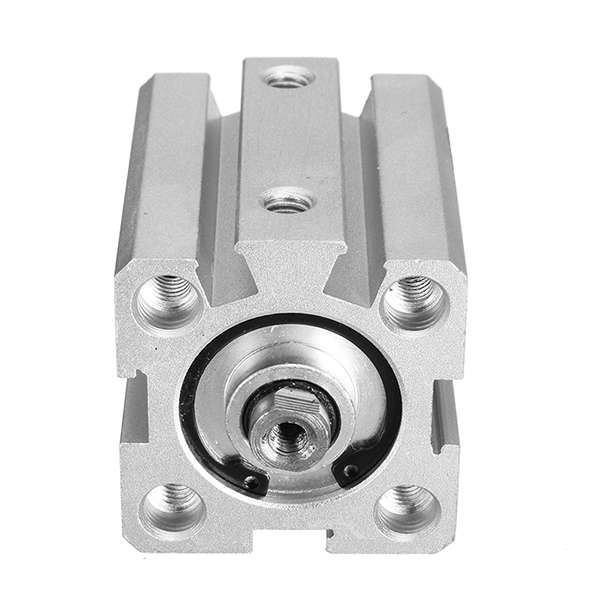

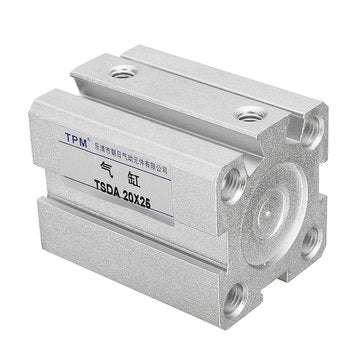

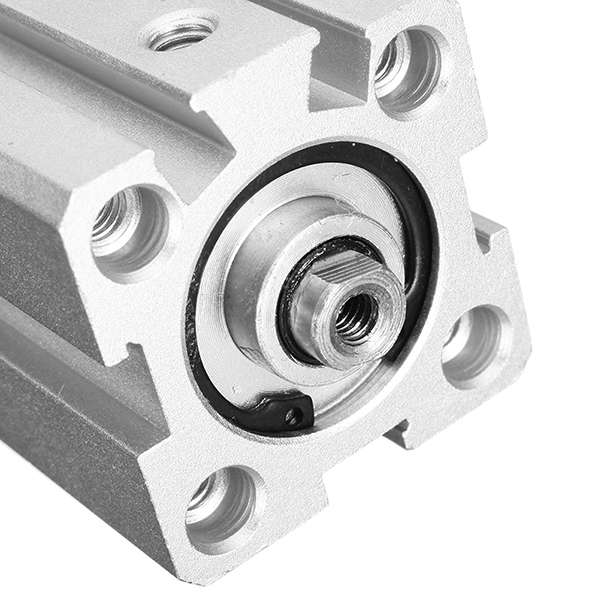

Description: SDA20X25 Dual Action Air Pneumatic Cylinder SDA20x25 20mm Bore 25mm Stroke Double Acting Pneumatic Air Cylinder Specification:

Product Name	Air Cylinder
Model	SDA20x25
Action Type	Double Action
Material	Aluminum Alloy
Bore	20mm / 0.78
Stroke	25mm / 0.98
Max Presssure	1.0Mpa / 10.2Kg/cm/ 145PSI
Rod Diameter	8mm / 0.31
Rod Thread Diameter	4mm / 0.15
Air Hole Diameter	4mm / 0.15
Mounting Hole Diameter	5mm / 0.19
Mounting Hole Distance (center to center)	24mm / 0.94
Overall Size(Approx)	34 x 34 x 45mm / 1.3x 1.3x 1.7(LWH)
Quantity	1pc

Features: 1. Riveted structure is adopted to connect the cylinder body and back cover, and piston and piston rod to make it compact and reliable. 2. The inner diameter of the bidy is treated with rolling followed by the treatment of hard anodizing, forming an excellet abrasion resistance and durability. 3. The seal of piston adopts heterogeneous two-way seal structure. It has compact dimension and the function of grease reservation. 4. Compact structure can effectively save installation space. 5. There are magnetic switch slots around the cylinder body, which is convenient to install sensor switch. 6. Mounting accessories with various specifications are optical. Notice: 1. Please allow a bit error due to manual measurement. please make sure you do not mind before you bid. 2. The color may have different as the difference display, pls understand. More Details:
