SDA40x15 40mm Bore 15mm Stroke Double Acting Pneumatic Air Cylinder SDA40x15 40mm Bore 15mm Stroke Double Acting Pneumatic Air Cylinder
SDA40x15 40mm Bore 15mm Stroke Double Acting Pneumatic Air Cylinder SDA40x15 40mm Bore 15mm Stroke Double Acting Pneumatic Air Cylinder

SDA40x15 40mm Bore 15mm Stroke Double Acting Pneumatic Air Cylinder

20 available / new
R544.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Returns
Replacement Guarantee: 7 Days: We stand by this guarantee
Get it now, pay later

Product details

Condition
New
Location
International
Bob Shop ID
643387406
Description:

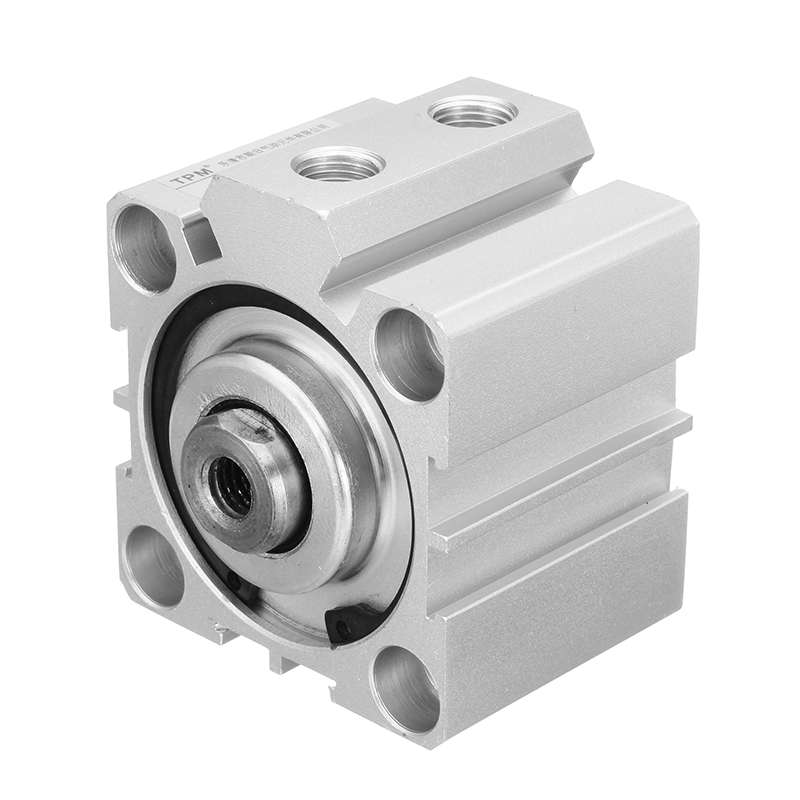

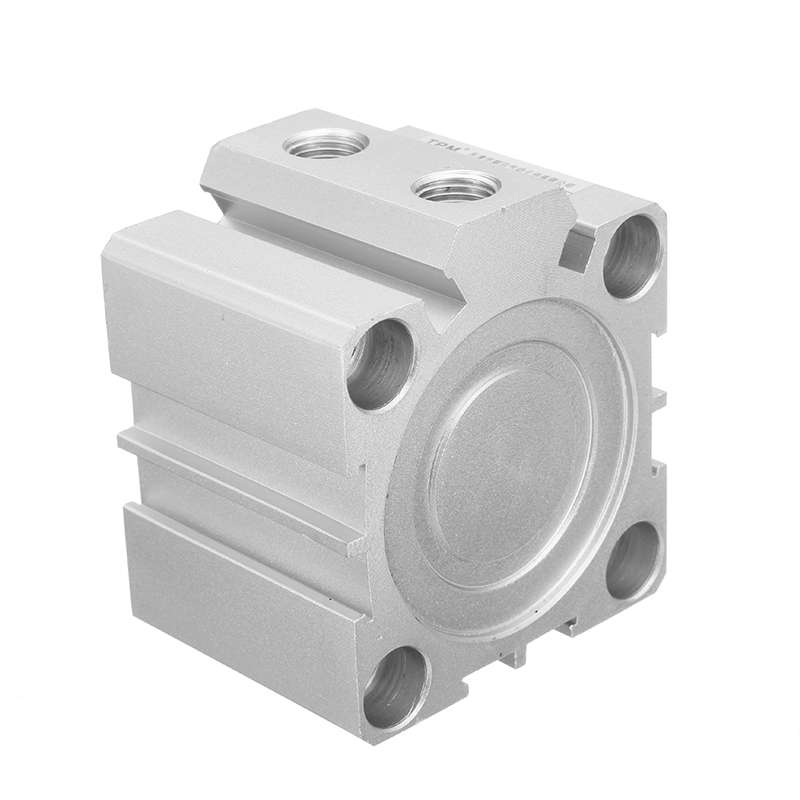

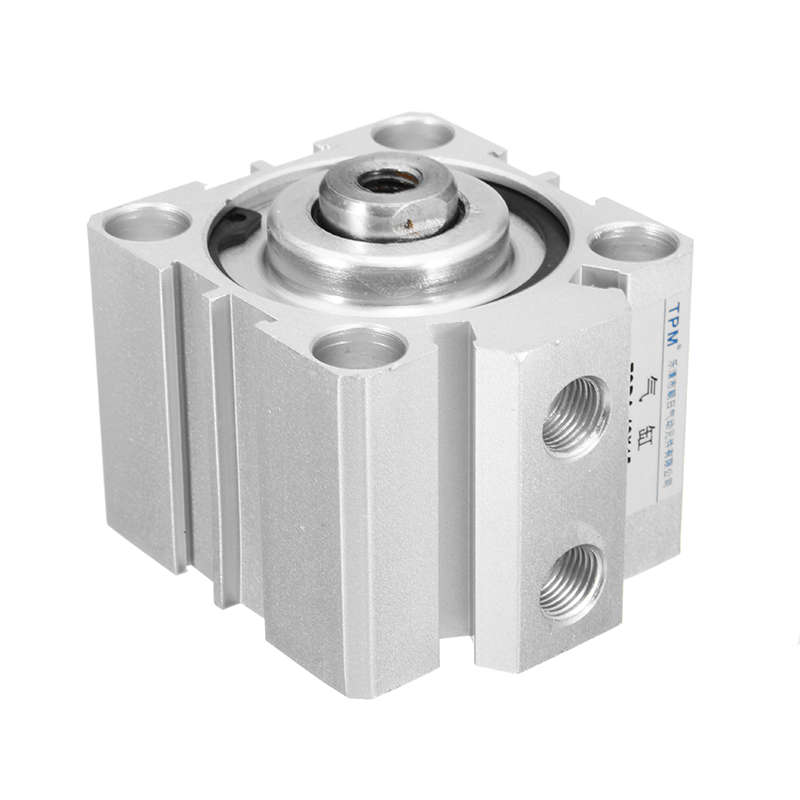

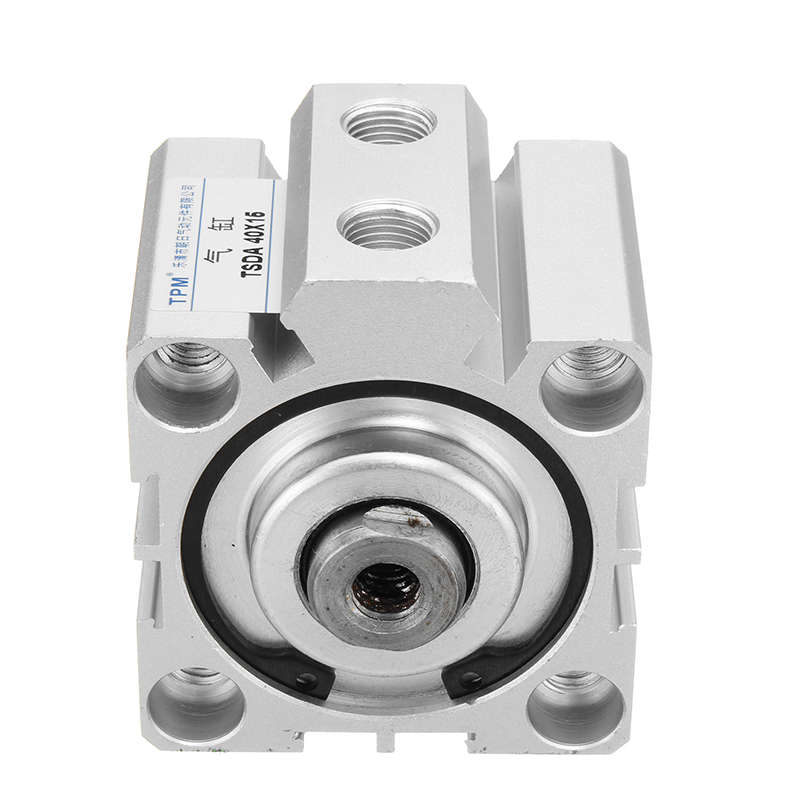

SDA40X15 Dual Action Air Pneumatic Cylinder SDA40x15 40mm Bore mm Stroke Double Acting Pneumatic Air Cylinder

Specification:

Product Name Air Cylinder
Model SDA40x30
Action Type Double Action
Material Aluminum Alloy
Bore 40mm
Stroke 15mm
Max Presssure 1MPA
Rod Diameter 16mm
Rod Thread Diameter M14X1.5
Air Hole Diameter 1/8
Overall Size(Approx) 50x58x55
Quantity 1pc

Features:
1. Riveted structure is adopted to connect the cylinder body and back cover, and piston and piston rod to make it compact and reliable.
2. The inner diameter of the bidy is treated with rolling followed by the treatment of hard anodizing, forming an excellet abrasion resistance and durability. 3. The seal of piston adopts heterogeneous two-way seal structure. It has compact dimension and the function of grease reservation. 4. Compact structure can effectively save installation space. 5. There are magnetic switch slots around the cylinder body, which is convenient to install sensor switch. 6. Mounting accessories with various specifications are optical.

Notice: 1. Please allow a bit error due to manual measurement. please make sure you do not mind before you bid. 2. The color may have different as the difference display, pls understand.
Package Included:
1pcs x SDA40x15 Air Cylinder

More Details:
