Self-designed and self-manufactured LFP cell, pack, and rack to ensure the highest safety.
Thanks to its modular and scalable design, it can be expanded to meet future energy requirements.
More than 5000 cycles with 90% DOD and 10+ years of design life.
Compatible with the most universal hybrid inverters.
Simple rack-mounted structure to reduce the installation time and cost.
Description:
High LFP Cyclic Cell
Wide Compatibility (Installed 20+ Communication Protocols)
Multiple Installation Methods (19 /23 inch/Wall-mounted/stacking)
Easy Expansion (Max 20 Pcs Parallel)

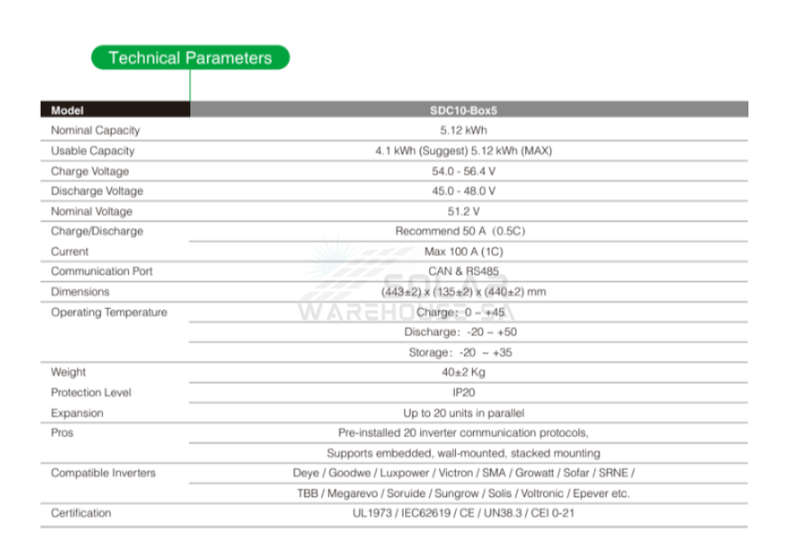

Nominal Capacity 5.12KWh
Usable Capacity 4.1kWh (Suggest) 5.12 kWh (Max)
Charge Voltage 54.0 -56.4V
Discharge Voltage 51.2V
Charge/Discharge Current Recommended 50A (0.5C), Max 100A (1C)
Communication Port CAN & RS485
Dimensions 443 x 135 x 440 mm
Operating Temperature
Charge 0 to +45
Discharge -20 to +35
Storage -20 to +35
Weight 40Kg
Protection Level IP20
Expansion Up to 20 Units in Parallel
Pros Support embedded, wall-mounted, stacked mounting.
Compatible Inverters Deye/ Goodwe/ Luxpower/ Victron/ SMA/ Growatt/ Sofar/ SRNE/ TBB/ Megarevo/ Soruide/ Solis/ Voltronic/ Epever etc.
Certification UL1972/ IEC62619/ CE/ UN38.3/ CEI 0-21
Compatible Inverters
Growatt, Goodwe, Victron, Deye, Sofar, Luxpower & more
These great batteries come with a 5-year warranty and 5000 cycles at 90% DOD. Thanks to their modular design, you can easily add another 5.12kWh Shoto Lithium-ion Battery should you need to expand your battery bank in the future.
Warranties:
All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
