SE-L91 HDMI Over Ethernet Extender 60M

-The 60M HDMI Extender empowers users to extend HDMI audio/video signals up to an impressive 60 meters (196 feet) via a single LAN cable

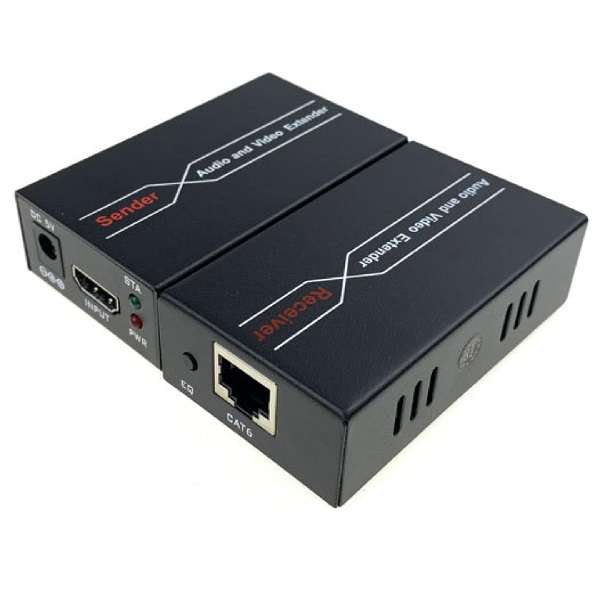

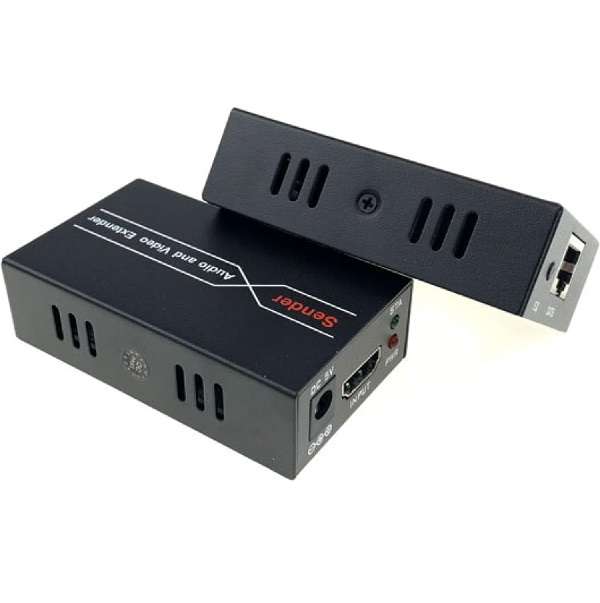

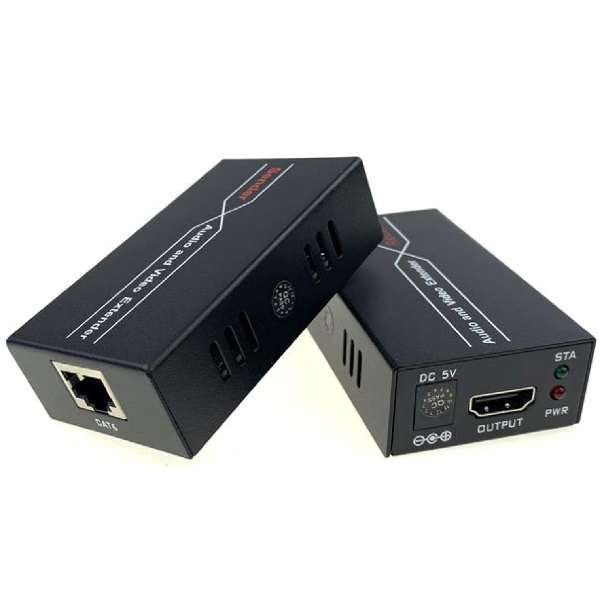

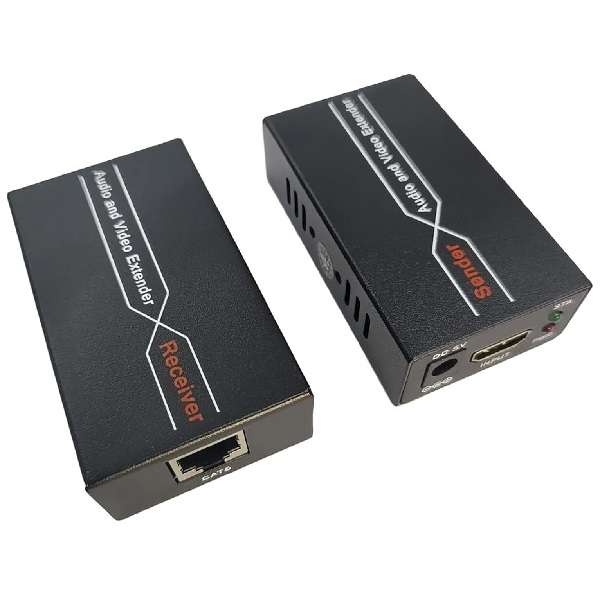

-This comprehensive extender kit features a local transmitter and a remote receiver, catering to seamless point-to-point digital signage applications demanding top-tier HDMI video quality
-Additionally, it seamlessly extends Infrared IR signals, facilitating efficient remote control operation from the video source to the destination
-Equipped with a convenient reset function on the receiver, users can effortlessly optimize signal strength to match the cable length, ensuring optimal performance
-Features,Support H.265 Technology
-Distance up to 60m over a CAT6 cable over UTP CAT6
-Support IR(38khz) signal pass back control
-Support R$232 pass-through
-Support dual-way individual audio transmission
-HDMI1.4 and HDCP1, 4 protocol,
-Have an HDMI local output in the Sender
-The receiver supports both 1 HDMI and 1 VGA output
-60M HDMI Extender 1080p 3D HDMI Transmitter Receiver over Cat5e/6/7 with IR Control Loop Out 3D EDID Function
-Protocol: HDMI 1.4, HDCP 1.4
-Maximum pixel clock: 225MHz, digital
-Maximum data rate: 10.2Gbps
-Highest resolution: 3840X2160@30Hz and backwards compatible
-Connector: HDMI-A
-HDMI Impedance: 100
-HDMI cable, less than 5meters ；24AWG
-Port: DB9
-Signal direction: Two-way transmission
-Baud rate: 115200bps (Other baud rates need to be set on the web)
-Data bit: 8 bits
-Port: 3.5mm Stereo audio socket
-Audio format: 44.1K, 48K, 96K, 176K, 192K
-Signal type: Stereo audio
-Interface: 3.5mm earphone seat
-Signal direction: Unidirectional pass-back
-Signal type: Digital
-IR frequency: 38 kHz
-Connector: RJ45 port（568B）
-Longest distance: 60metres via cat6, 70m via cat5e
-Power supply: Adapter： DC 5V/2A
-Temperature: -5 ~ +70
-Humidity: 5% ~ 90%

Package Weight: 368g

Package Dimensions: 20cm x 14.5cm x 5cm

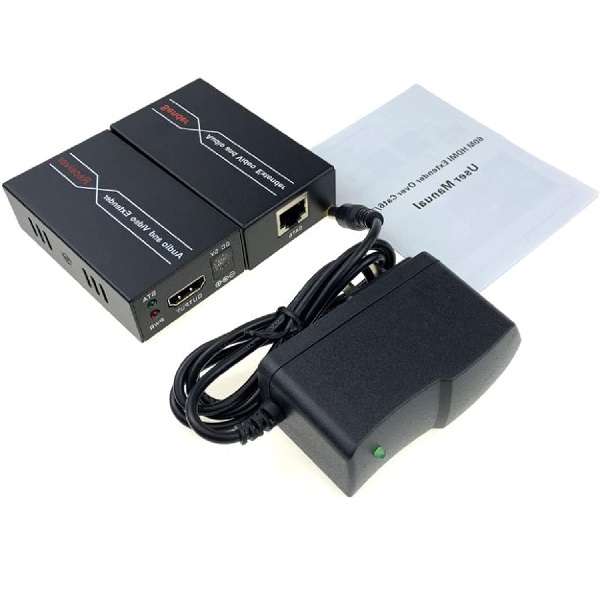

Package Includes:

2 x 60M HDMI Over Ethernet Extender
1 x Manual
1 x Power Adapter
