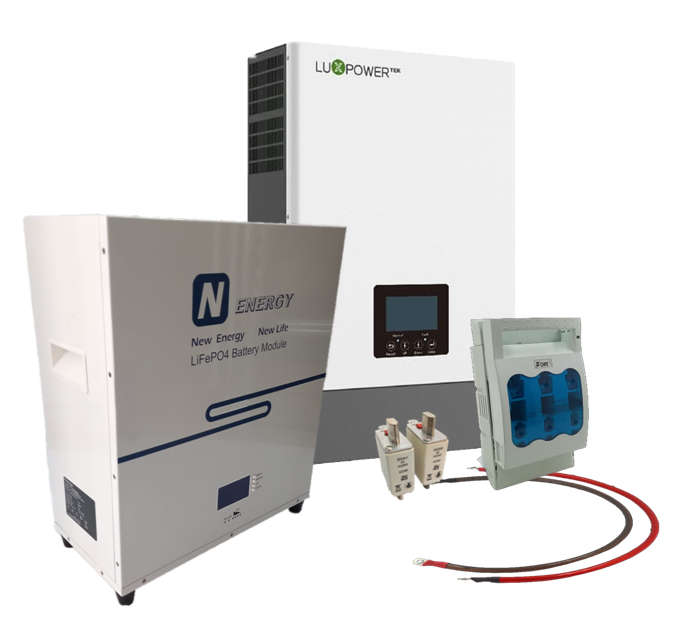

SE042 - Luxpower Backup Power Kit. 5KVA 48V Hybrid inverter 3.84 Kw 48V 80Ah Li-ion Batt + acc

Model: SNA 5000 WPV

Inverter Output

• Waveform: Pure Sine-Wave.
• Rated Power: 5000VA/5000W.
• Parallel Capability: Yes, up to 9 units.
• AC Voltage Regulation (Battery Mode): 230VAC ± 5% @ 50/60Hz.
• Surge Power: 10000VA.
• Efficiency (Peak): 93%.
• Transfer Time: 10 ms (For Personal Computers); 20 ms (For Home Appliances).

Solar Charger

• Maximum PV Array Power: 6000W.
• 2 MPPT Controllers
• MPPT Range @ Operating Voltage: 100VDC ~385 VDC.
• Maximum PV Array Open Circuit Voltage: 480VDC.
• Maximum Efficiency: 98%.
• Maximum Solar Charge Current: 100A.

1x Lithium LiFePO4 battery

• Integrated BMS System
• Overcharge detection function. Over discharge detection function.
• Over current detection function.Temperature protection.Short detection function.
• Balance function.Electrical Characteristics
• Nominal Voltage: 48.0V.Nominal Capacity: 100Ah.
• Energy: 4800Wh.Internal Resistance: 50m.
• Efficiency of Charge: 100%@0. 2C.
• Efficiency of Discharge: 96~99%@0.5C.
• Cell & Method: 32700 6Ah.
• Shell material: Cylindrical cells Iron(SPCC).

Battery fuse disconnector with 2x 160Amp fuses

ALL CABLES SUPPLIED
