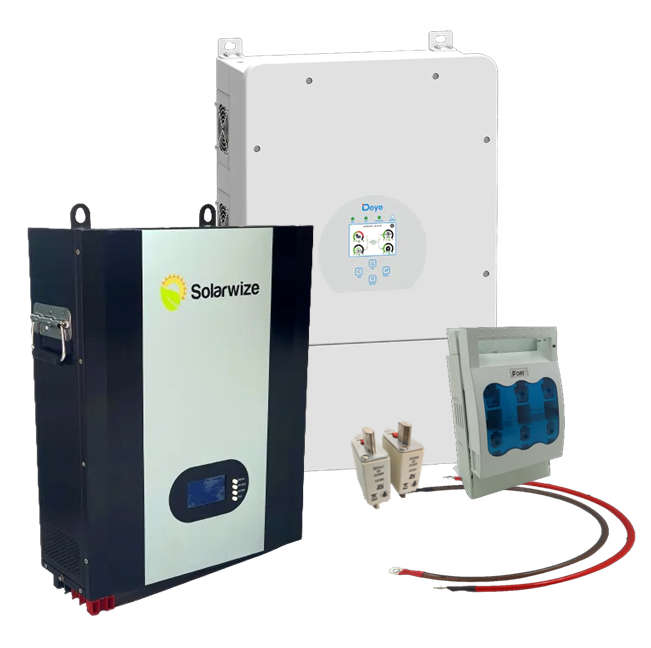

SE048 - Deye Backup Power Kit. 8KW 48V Hybrid inverter. 5.8 Kw 48V 120Ah Li-ion Batt + acc

Deye 8KVA 48V Hybrid Inverter

• Max. DC Input Power (W): 10400W.
• PV Input Voltage (V): 370V (100V 500V).
• MPPT Range (V): 125V 425V.
• Full Load DC Voltage Range: 240V 425V.
• Start-up Voltage (V): 150V.
• PV Input Current (A): 18A 18A.
• No.of MPPT Trackers: 2.
• No.of strings per MPPT Tracker: 2 2.

AC Output Data

• Rated AC Output and UPS Power (W): 8000W.
• Max. AC Output Power (W): 8800W.
• Peak Power (off grid): 2 times of rated power, 10 S.
• AC Output Rated Current (A): 33.4A/35A.
• Max. AC Current (A): 38.3A/40A.
• Max Continuous AC Passthrough (A): 50A.
• Power Factor: 0.8 leading to 0.8 lagging.
• Output Frequency and Voltage: 50/60Hz; 120/240Vac(split phase), 208Vac(2/3 phase),230Vac(single phase).
• Grid Type: Split phase / 2/3 phase / Single Phase.
• Current Harmonic Distortion: THD<3%(Linear Load<1.5%).

1x Solarwize Lithium battery

• Integrated BMS System
• Overcharge detection function. Over discharge detection function.
• Balance function.Electrical Characteristics
• Model: BL12048
• Output Voltage: 48Vdc
• Rated Capacity:120Ah 5760Wh
• Float Voltage: 52.8Vdc
• Cutoff Voltage: 44.9Vdc
• Max Discharge:120A

Battery fuse disconnector with 2x 160Amp fuses

ALL CABLES SUPPLIED
