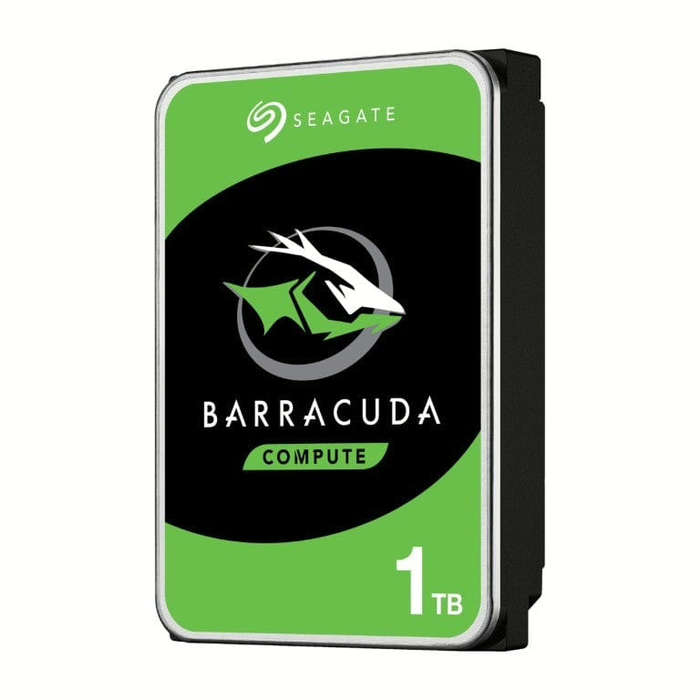

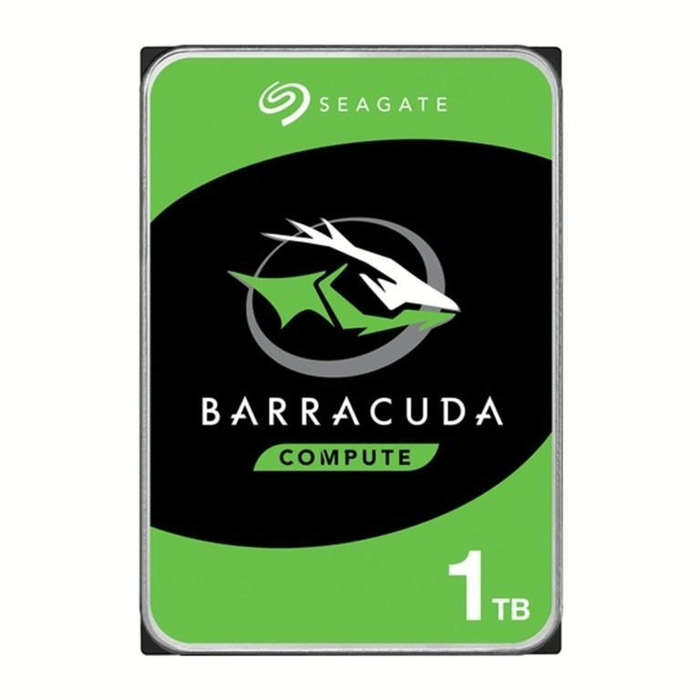

Seagate Barracuda 3.5-inch 1TB Serial ATA III Internal Hard Drive

Seagate Barracuda 3.5-inch 1TB Serial ATA III Internal Hard Drive

3.5-Inch BarraCuda Hard Drives Deliver!

Rock-solid reliability built on over 20 years of BarraCuda innovation. Versatile mix of capacity and price point options to fit any budget. Multi-Tier Caching Technology for excellent hard drive performance.

These drives provide the following key features:

• Compliant with RoHS requirements in China and Europe.
• High instantaneous (burst) data-transfer rates (up to 600MB per second).
• Native Command Queuing with command ordering to increase performance in demanding applications.
• Quiet operation.
• SeaToolsTM diagnostic software performs a drive self-test that eliminates unnecessary drive returns.
• State-of-the-art cache and on-the-fly error-correction algorithms.
• Support for S.M.A.R.T. drive monitoring and reporting.
• Supports latching SATA cables and connectors.
• Worldwide Name (WWN) capability uniquely identifies the drive.

Typical Uses

• Desktop or all-in-one PCs
• Home servers
• Entry-level direct-attached storage devices (DAS)

Technical Specification

Product: Seagate Barracuda ST1000DM014
Capacity: 1TB
Guaranteed sectors: 1,953,525,168
Bytes per sector (4K physical emulated at 512-byte sectors): 4096
Default sectors per track: 63
Default read/write heads: 16
Default cylinders: 16,383
Recording density (max): 2200 kB/in
Track density (avg): 540 ktracks/in
Areal density (avg): 1188 Gb/in2
Spindle speed (RPM): 7200
SATA interface transfer rate: 600 MB/s
Maximum data transfer rate: 220 MB/s
