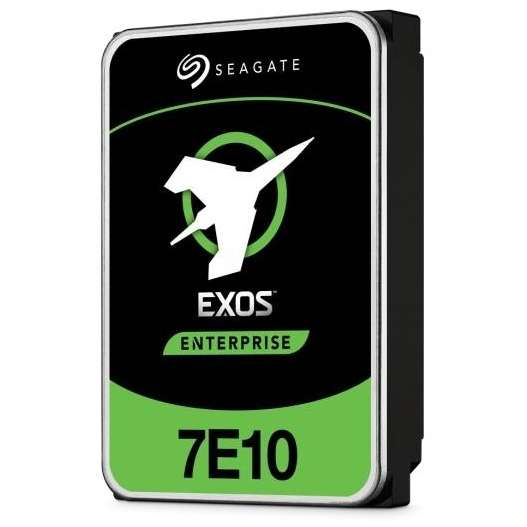

Seagate Exos 7E10 2TB 3.5 inch 7200rpm 256MB Cache SATA3 6Gb/s Fast Format

Seagate Exos 7E10 2TB 3.5" 7200rpm 256MB Cache SATA3 6Gb/s Fast Format Hard Disk Drive, 256MB Cache, 215MB/s Maximum sustained transfer rate OD, 4.16 ms average Latency, ST2000NM000B

Specifications:

Capacity 2 TB
Standard ST2000NM000B
PowerBalance Model -
Seagate Secure SED Model ST2000NM006B
Seagate Secure SED-FIPS 140-3 Model -
Features
Protection Information (T10 DIF) -
SuperParity Yes
Low Halogen Yes
PowerChoice Technology Yes
PowerBalance Technology Yes
Cache, Multi-segmented (MB) 256
Advanced Write Caching (8M internal NOR flash) Yes
Reliability/Data Integrity
Vibration, Non-operating: 10 Hz to 500 Hz (Grms) 5
Mean Time Between Failures (MTBF, hours) 2000000
Reliability Rating @ Full 24x7 Operation (AFR) 0.44%
Non-recoverable Read Errors per Bits Read 1 sector per 10E15
Power-On Hours per Year 8760
Bytes per Sector 512
Performance
Spindle Speed (RPM) 7200
Interface Access Speed (Gb/s) 6.0, 3.0, 1.5
Max. Sustained Transfer Rate OD 215MB/s
Average Latency (ms) 4.16
Interface Ports Single
Rotational Vibration @ 1,500 Hz (rad/s²) 12.5
Power Consumption
Idle Power, Average (W) 5.16
Typical Operating, Random Read (W) 9.4
Power Supply Requirements +12 V and +5 V
Environmental
Temperature, Operating (°C) Drive Reported 5 ~ 60
Shock, Operating 2 ms Read/Write (Gs) 70/40 Gs
Shock, Non-operating, (1 ms/2 ms) (Gs) 150/300
Physical
Height (in/mm, max) 1.028 in/26.11 mm
Width (in/mm, max) 4.01 in/101.85 mm
Depth (in/mm, max) 5.787 in/147 mm
Weight (lb/g) 620 g/1.37 lb
Carton Unit Quantity 20
Cartons per Pallet / Cartons per Layer 40/8
