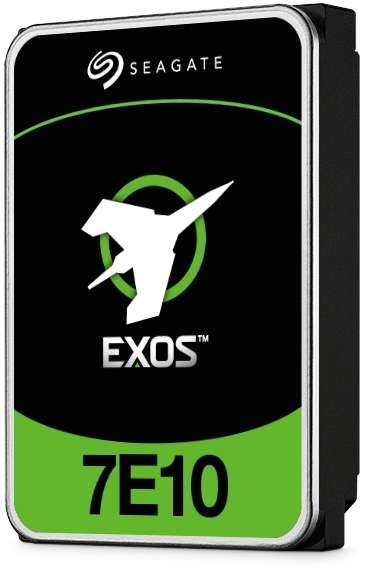

Seagate Exos 7E10 6TB 3.5" 7200rpm SAS SED 512e/4Kn Fast Format Hard Disk Drive, 256MB Cache, ST6000NM001B, 236MB/s Maximum sustained transfer rate OD, 4.16 average Latency (ms)
Features:
Trusted. Efficient. Versatile.
Confidently store up to 10 TB of data without sacrificing performance.
Optimised for Enterprise Workloads
High-capacity, high-performance drives for demanding bulk data applications.
Robust 24x7 Performance
Consistent performance in replicated and RAID multi-drive systems.
Cost-Effective Footprint
The most efficient and cost-effective data centre footprint on the market today.
Advanced Security Features
Safeguard data at rest and comply with corporate and government data security mandates.
Specifications:
Capacity 6 TB
Standard ST6000NM001B
PowerBalance Model -
Seagate Secure SED Model -
Seagate Secure SED-FIPS 140-3 Model -
**not all models will be generally offered as standard configurations -
Features
Protection Information (T10 DIF) Yes
SuperParity Yes
Low Halogen Yes
PowerChoice Technology Yes
PowerBalance Technology Yes
Cache, Multi-segmented (MB) 256
Advanced Write Caching (8M internal NOR flash) Yes
Reliability/Data Integrity
Vibration, Non-operating: 10 Hz to 500 Hz (Grms) 2.27
Mean Time Between Failures (MTBF, hours) 2000000
Reliability Rating @ Full 24 x 7 Operation (AFR) 0.0044
Non-recoverable Read Errors per Bits Read 1 sector per 10E15
Power-On Hours per Year 8760
Bytes per Sector 512
Warranty, Limited (years) 5
Performance
Spindle Speed (RPM) 7200
Interface Access Speed (Gb/s) 12.0, 6.0, 3.0
Max. Sustained Transfer Rate OD 236MB/s
Average Latency (ms) 4.16
Interface Ports Dual
Rotational Vibration @ 1,500 Hz (rad/s²) 12.5
Power Consumption
Idle Power, Average (W) 7.24
Typical Operating, Random Read (W) 11.34
Power Supply Requirements +12 V and +5 V
Environmental
Temperature, Operating (°C) Drive Reported 5 ~ 60
Shock, Operating 2 ms Read/Write (Gs) 70/40 Gs
Shock, Non-operating, (1 ms/2 ms) (Gs) 150/300
Physical
Height (in/mm, max) 1.028 in/26.11 mm
Width (in/mm, max) 4.01 in/101.85 mm
Depth (in/mm, max) 5.787 in/147 mm
Weight (lb/g) 716 g/1.58 lb
Carton Unit Quantity 20
Cartons per Pallet / Cartons per Layer 40/8
