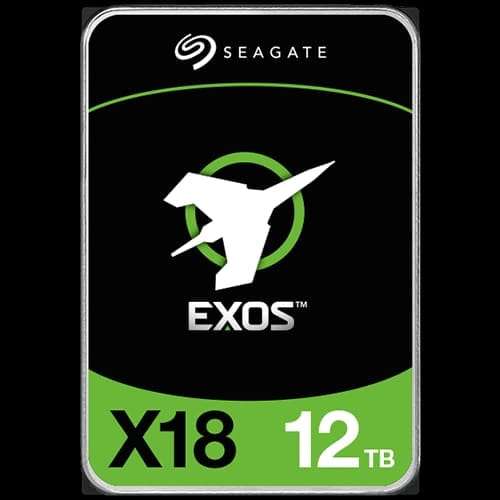

SEAGATE HDD Server ST12000NM000J

SEAGATE HDD Server Exos X18 HDD 512E/4KN (3.5'/ 12TB/ SATA 6Gb/s / 7200rpm)

Internal

Form Factor  3.5"

Storage Capacity  12 TB

Supports Data Channel  SATA III-600

Swap Capability  Hot

Installed Cache Memory Storage Capacity  256 MB

Sector Capacity  512 B

Rotational Speed  7200 rpm

Average Rotational Delay  4.16 ms

External Data Bit Rate  6 Gbps

Non-Recoverable Errors  1 per 10^15

Mean Time Between Failures  2500000 hr

Hard Drive Features  24/7
HelioSeal Technology
Super Parity
PowerBalance
PowerChoice Idle Power Technology
Low Halogen
Organic Solderability Preservative
RSA 3072 Firmware Verification (SD&D)
Conventional Magnetic Recording (CMR)

Shock Tolerance Operating  50G @ 2ms

Shock Tolerance Storage  200G @ 2ms

Vibration Tolerance Operating  12.5G @ 20-1500Hz

Vibration Tolerance Storage  2.27G @ 2-500Hz

SATA  1

Maximum Supply Voltage  12 V

Minimum Supply Voltage  5 V

Maximum Power Consumption  8.6 W

Minimum Power Consumption  4.4 W

Maximum Operating Ambient Temperature  60 °C

Minimum Operating Ambient Temperature  5 °C

Depth (mm)  147 mm

Height (mm)  26.1 mm

Width (mm)  101.85 mm

Nominal Weight  0.65 kg

Warranty Products Returnable  Yes

Warranty Term (month)  60 month(s)

Warranty Validation Criteria  Serial Number

Pack Weight Brutto (kg)  0.65 kg

Pieces in pack  1

Box Weight Brutto (kg)  14.95 kg

Packs in Box  20

Package Type  Retail

EAN Code  8719706020718
