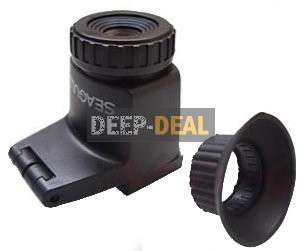

SEAGULL 2.3x Angle View finder Viewfinder Magnifier
Introduction
Fit for DSLR/SLR cameras.Bring clear vision to photography life using this compact viewfinder that adapts to most camera models on market. This tiny package comes with viewfinder connection eyepiece and a bundle of viewfinder frames to fit a large number of cameras that come with rectangular shaped viewfinder.
Features
The seagull viewfinder is a magnifier for use with various single-lens reflex camera or digital single-lens reflex camera (referred to below as "camera").The image in the center part of the finder is expanded to about 2.3 times. This is useful when more accurate focusing is required, such as for telephoto,close-up,or duplicate shots.The entire visual field can be checked without detaching the magnifier from the camera.The eyepiece is an adjustable diopter.
A Identifying the parts
1 Diopter adjusting ring
2 Fitting shoe
3 Adapter for various camera
B Handing the Magnifier
Fitting to the camera
After removing the eyecup from the camera,fit the right adapter for the camera,then put the magnifier to the left and right grooves of the camera's eyepiece frame and slide on the fitting shoe.
Adjusting the diopter
1 Set the camera lens to infinity (∞),and point it at a distant object.
2 Rotate the diopter adjusting ring until the object in the finder appears clearest to your eye (B-1).In this state, focus the camera on a subject.The diopter can be adjusted from +3.0 to -7.6
How to use
1 Raise the magnifier to the position shown in the illustration to check the entire visual field of the finder(B-2).
2 Put the madnifier down and, if necessary ,focus on a subject again. Rotate the magnifier in the direction of the arrow when attaching or removing the flash,or when checking the entire visual field with the flash attached (B-3).
The attachment can come loose when you rotate the magnifier. If this happens push the magnifier down
Specifications
Dimensions Approx.82x76x51mm
Mass Approx 15g(0.5oz)
magnification 2.3x
Included items
Camera Viewfinder Magnifier
Rubber Eyecup
5 Adapter for different DSLR or SLR Eyecup Adapter
A. Canon 18mm B. Canon 22mm C. Nikon 22mm D. Pentax E. Olympus
Viewfinder Magnifier Pouch
Suitable For
Canon (digital) EOS
digital Rebel XS, Rebel XSi, Rebel XTi, digital Rebel XT, digital Rebel,
1000D 450D 400D, 350D, 300D, D60, D30,
40D, 30D, 20Da, 20D, 10D,
5D, 5D Mark II,
Canon (film) EOS
3, 1v, IX Lite, Rebel 2000, Rebel XS, Rebel Ti, Rebel T2, Rebel K2, Rebel GII, Rebel G;
Nikon (digital)
D300, D200, D100, D90, D80, D70s, D70, D60, D50, D40x, D40;
Nikon (film)
F80/N80, F75/N75, F65/N65, F55/N55, F50/N50, F601/N6006, F401/N5005, F401S/N4004, F301/N2000, FM10, FE10, FG-20, FG, EM, PRONEA 600I/6I;
Pentax
K200D, K110D, K100D, K100D Super, K20D, K10D, Km
*ist DL2, *ist DS2, *ist DL, *ist DS, *ist D, *ist, and all film SLR cameras;
Olympus Evolt
E-30, E-520, E-510, E-500, E-420, E-410, E-400, E-330, E-300, E-3;
Samsung
GX-20 GX-10 GX-1L GX-1S
Fujifilm
S5 Pro, S3 Pro, S2 Pro, 690
