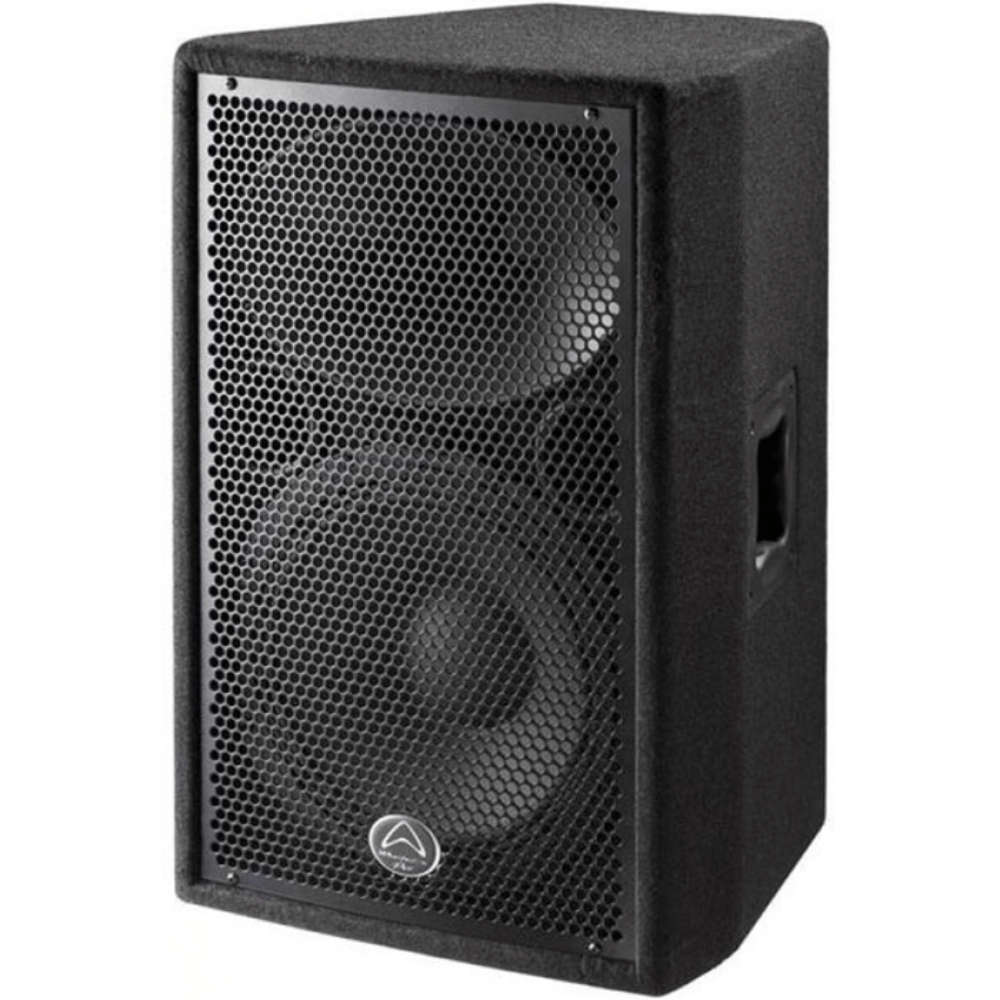

Wharfedale DLX12 400w 12" Speaker
Wharfedale DLX™ Series sound reinforcement speakers are designed for demanding applications, i.e. portable and fixed installation concert venues.
The 50.8mm (2") Titanium high frequency drivers project crystal clear high frequencies. A proprietary 90° x 45° High Frequency Horn delivers the high frequencies in a well defined, even coverage pattern. Dynamic passages, such as the crack of a snare drum or the report of a cannon, come through just like the real thing.
The DLX-12 is very flexible in application. With its heavy duty components and the ability to switch from passive mode to bi-amp mode with the flip of a switch, the DLX-12 can rise to any sound reinforcement challenge.
| MODEL | DLX-12 |
| GENERAL INFO | |
| System type | 12" 2-way passive |
| Frequency response +/- 3db | 60-20kHz |
| Sensitivity (db 1w@1m) | 97dB |
| System impedance | FULL RANGE:4 or 8, BI-AMP LF:4 or 8, BI-AMP HF: 8 |
| Maximum SPL Peak dB | 129dB |
| System FB | 60Hz |
| POWER HANDLING (Watts) | |
| Continuous RMS | 400 |
| Program | 800 |
| Peak | 1600 |
| LF DRIVER | |
| Lf driver size mm / inches | 12" |
| Lf voice coil size | 38.1mm/3" |
| HF SECTION | |
| Hf voice coil size | 50/2" |
| Hf diaphragm material | Titanium |
| Horn dispersion (H x V) | 90° x 45° |
| Hf exit size mm / inches | 35/1.4" |
| Hf horn shape | Eliptical |
| CROSSOVER SECTION | |
| Crossover Frequency / Filter | 1.8kHz, Bi-amp/passive ,externally switchable |
| Hf driver protection | Bulb |
| PHYSICAL FEATURES | |
| Finish | carpet black |
| Construction material | 15 mm MDF/particle |
| Handle quantity | 2 |
| Stand adapter - BOTTOM | yes |
| Enclosure type | trapezoidal |
| IN / OUT PANEL (speaker Level) | |
